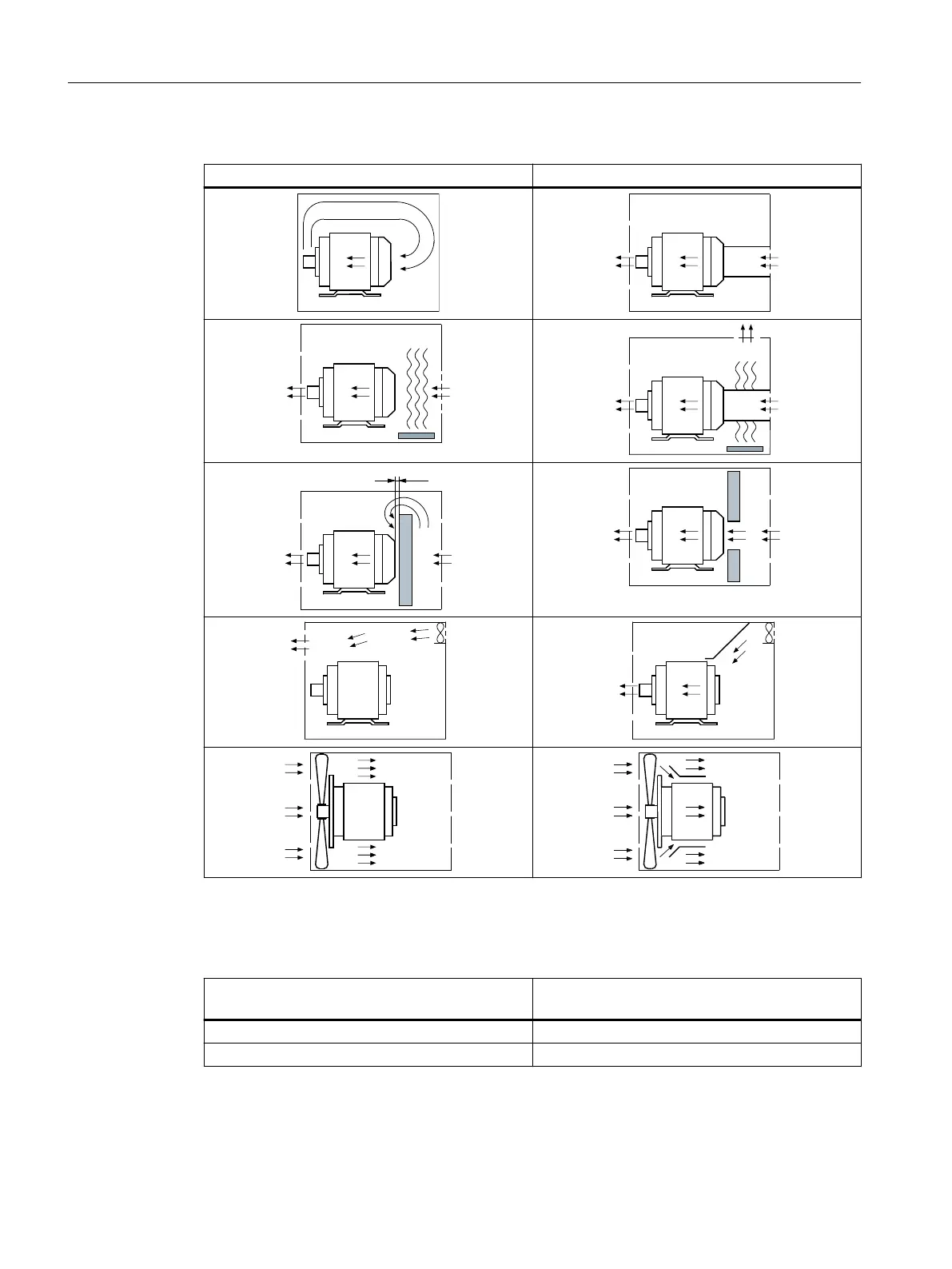

Table 4-1 Air guidance
Incorrect Correct
Minimum dimension "x" for the distance between neighboring modules and the air intake of the machine
Table 4-2 Minimum dimension "x" for the distance between adjacent modules and the air intake of
the machine
Shaft height x
mm
280 ... 315 110
355 140
Preparing for use
4.6Ensure adequate cooling
1LE5, 1PC4 shaft heights 280 ... 355
42 Operating Instructions, 11/2022, A5E41454666A
