Addressing
6.3 Addressing signal modules
SIMOTION C
136 Operating Instructions, 02/2012
6.3 Addressing signal modules
Introduction
The following section describes signal module addressing in the default setting. You need
the information so that you can address the signal module channels in the user program.
Addresses of digital modules
The address of an input or output of a digital module is made up of the byte address and the
bit address.
HJ
,QSXW %\WHDGGUHVV %LWDGGUHVV
,

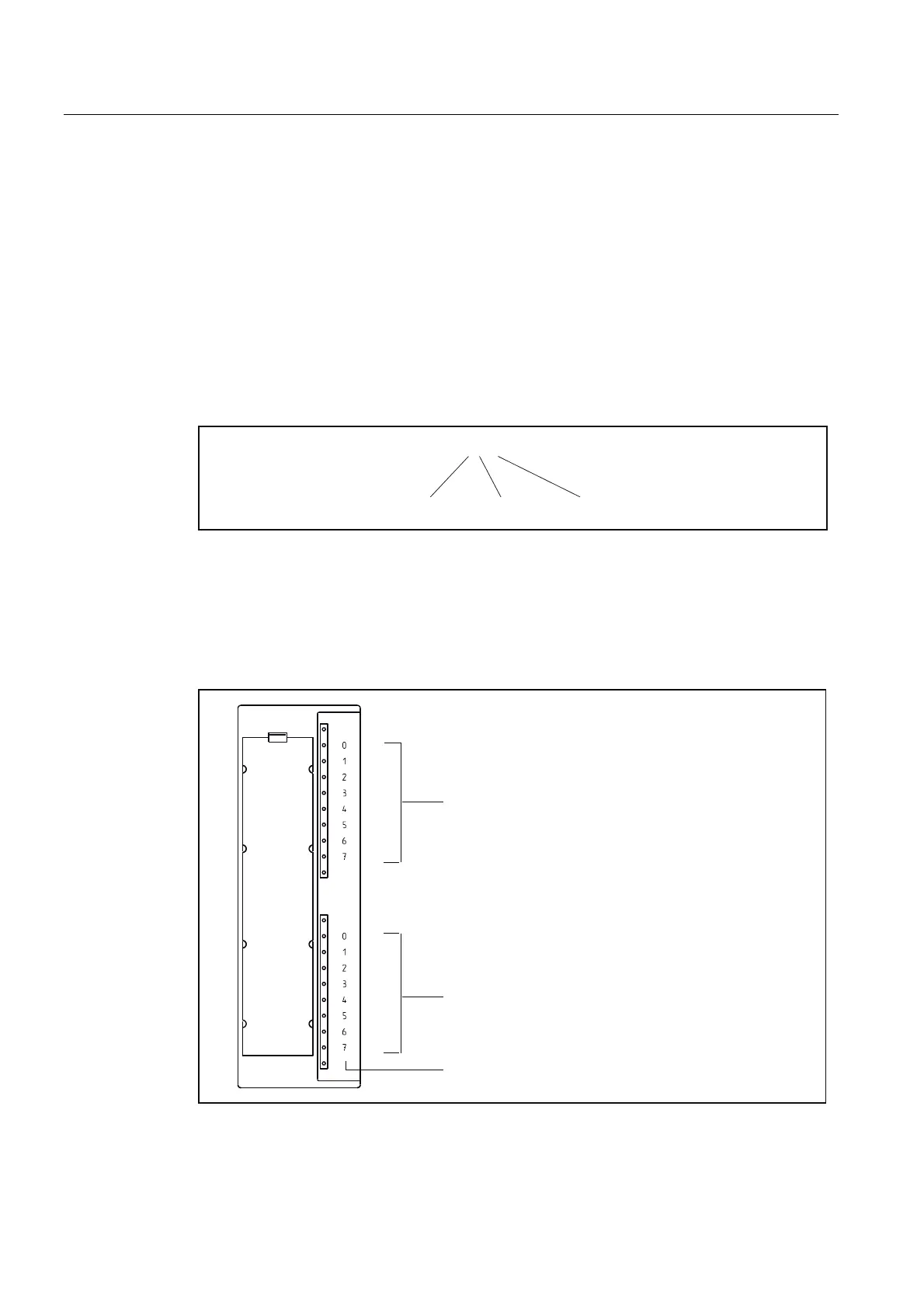

Figure 6-2 Address of an input of a digital module - example
The byte address is governed by the module start address.
You can note the bit address on the module.
The figure below shows you the scheme by which the addresses of the individual channels
of the digital module are obtained.
%\WHDGGUHVV
0RGXOHVWDUWDGGUHVV
%\WHDGGUHVV
0RGXOHVWDUWDGGUHVV
%LWDGGUHVV
Figure 6-3 Addresses for the inputs and outputs of digital modules
