4.3.3 After installation
Inserting the key (C230-2)
Once the C230-2 has been mounted on the mounting rail, you can insert the key in the
STOP or STOPU position on the C230-2.
6723
581
67238

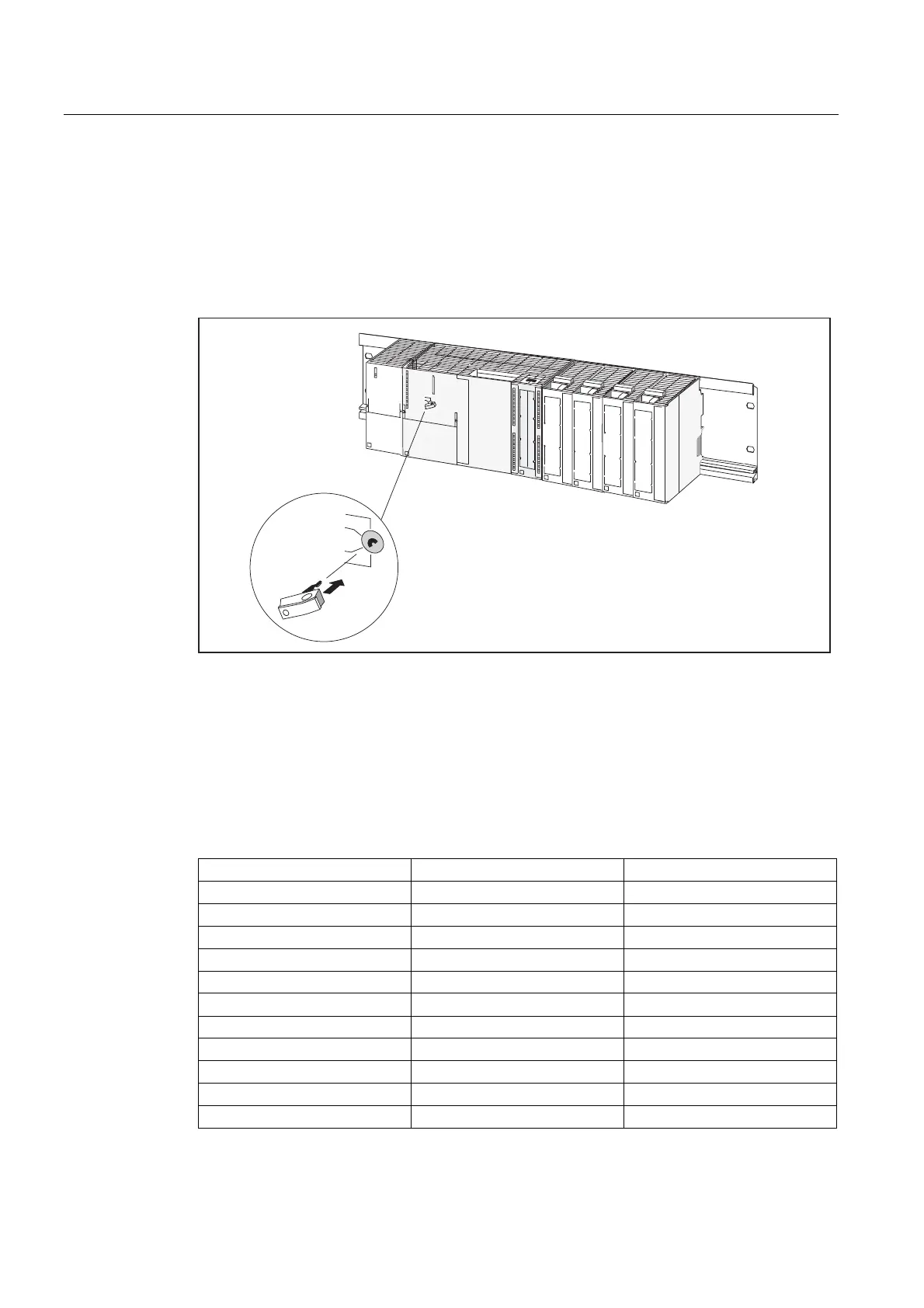

Figure 4-7 Inserting the key in the C230-2
Assigning the slot numbers
After mounting, you can assign each module a slot number. This eases the assignment of
the modules to the configuration table in the
Engineering System
. The table below shows the
slot number assignment.
Table 4- 7 Slot numbers for S7 modules and SIMOTION C
Slot no. Module Comments
1 Power supply (PS) -
2 SIMOTION C -
3 Reserved -
4 1. I/O module To the right of SIMOTION C
5 2. I/O module -
6 3. I/O module -
7 4. I/O module -
8 5. I/O module -
9 6. I/O module -
10 7. I/O module -
11 8. I/O module -
