7.5 User memory concept
SIMOTION C
Operating Instructions, 02/2012
151
Volatile data (RAM)
Definition of the properties of volatile data:
● The volatile data is located in the RAM memory of the SIMOTION C.
● The download data of SIMOTION SCOUT are written to this memory.
● This data is lost when the SIMOTION C is shut down.
● Contents of the "volatile data" area:
– SIMOTION Kernel
– Technology packages (TP)
– User data (programs, configuration data, parameterizations, task configuration)
7DUJHW
GHYLFH
&RPPLVVLRQLQJ
520 5$0
&XUUHQW5$0
0LFURPHPRU\FDUG ZRUNLQJPHPRU\
5$0WR
520
&RS\LQJ
&RS\FXUUHQWGDWD
WR5$0
QRV\VWHP
YDULDEOHV
72UHVWDUW
RULPPHGLDWHO\
&RQILJGDWDLQ
581
6\VWHP
YDULDEOHV
'RZQORDG
8SORDG
ORDGPHPRU\
1RQYRODWLOH
GDWD
1H[W

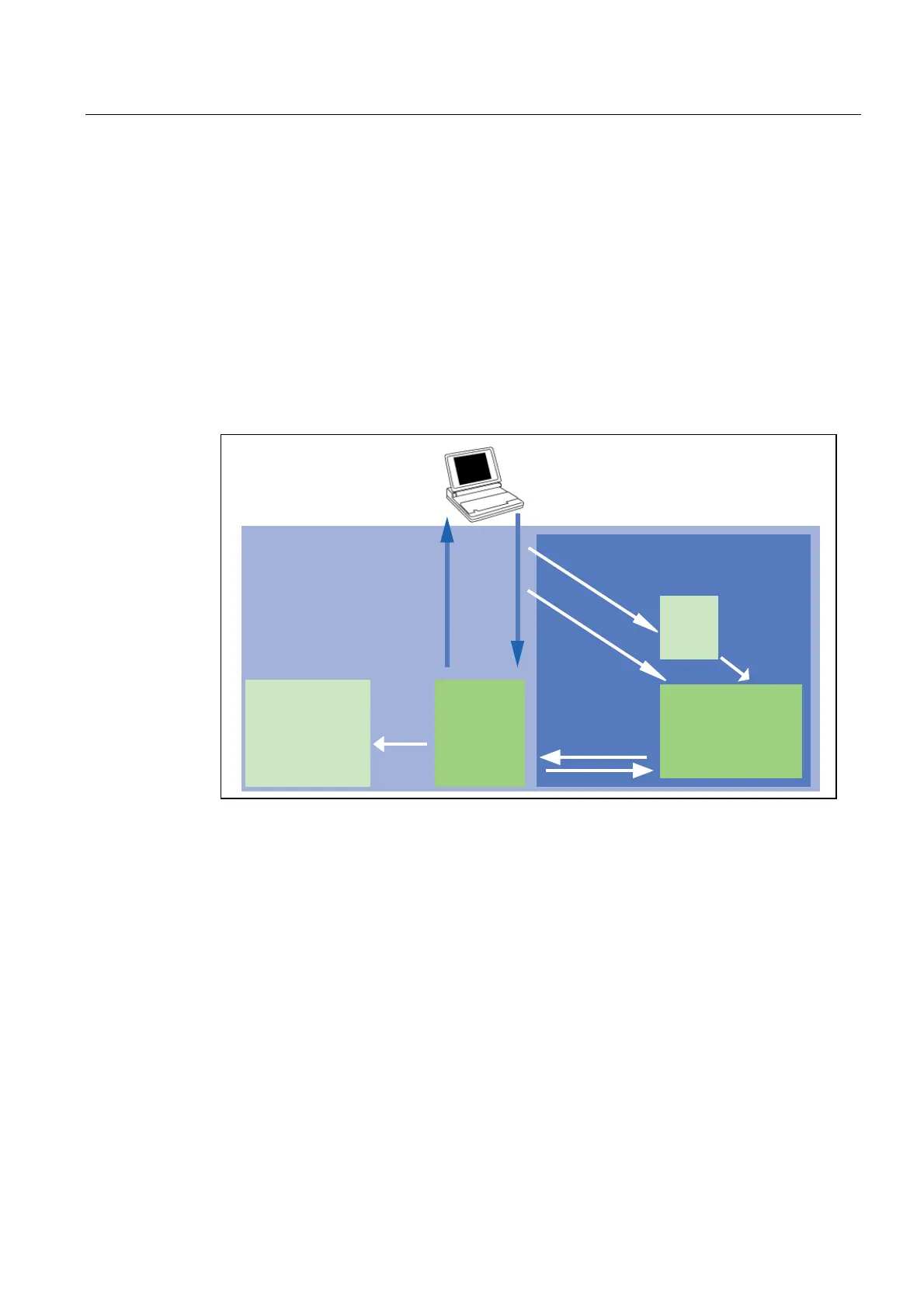

Figure 7-3 Configuration data and system variables on volatile memory
Non-volatile system
With the SIMOTION C230-2, the SIMOTION Kernel is stored as non-volatile data in a flash
memory. A C230-2 can therefore also ramp up without a memory card.
MMC memory card
The MMC contains the following data:
● SIMOTION Kernel
● Technology packages (TP)
● User data (programs, configuration data, parameterizations, task configuration)
● IP parameters (IP address, subnet mask, router address)
● DP parameters (DP addresses, baud rate)
