Commissioning
7.6 Deleting data
SIMOTION C
156 Operating Instructions, 02/2012
Memory reset with the mode selector
Note
The operation for the memory reset with the toggle switch is described below. The operation
with the key-operated switch of the C230-2 is similar to the operation with the toggle switch.
Proceed as follows (see following figure):
1. Set the mode selector to STOP.
2. Move the switch to MRES and hold the switch in this position until the STOP LED
changes from flashing to steady illumination.
3. Within 3 seconds, you must release the switch and return it to the MRES position. The
memory reset will now be performed. All the LEDs will light up during this time. The
SIMOTION C completed the memory reset when the STOP LED lights up.
The SIMOTION C has reset the memory.
RQ
2II
PD[V
6723/('
$OO/('VRQ
W
05(6
6723
581
05(6
6723
581
05(6
6723
581
05(6
6723
581
05(6
6723
581
V

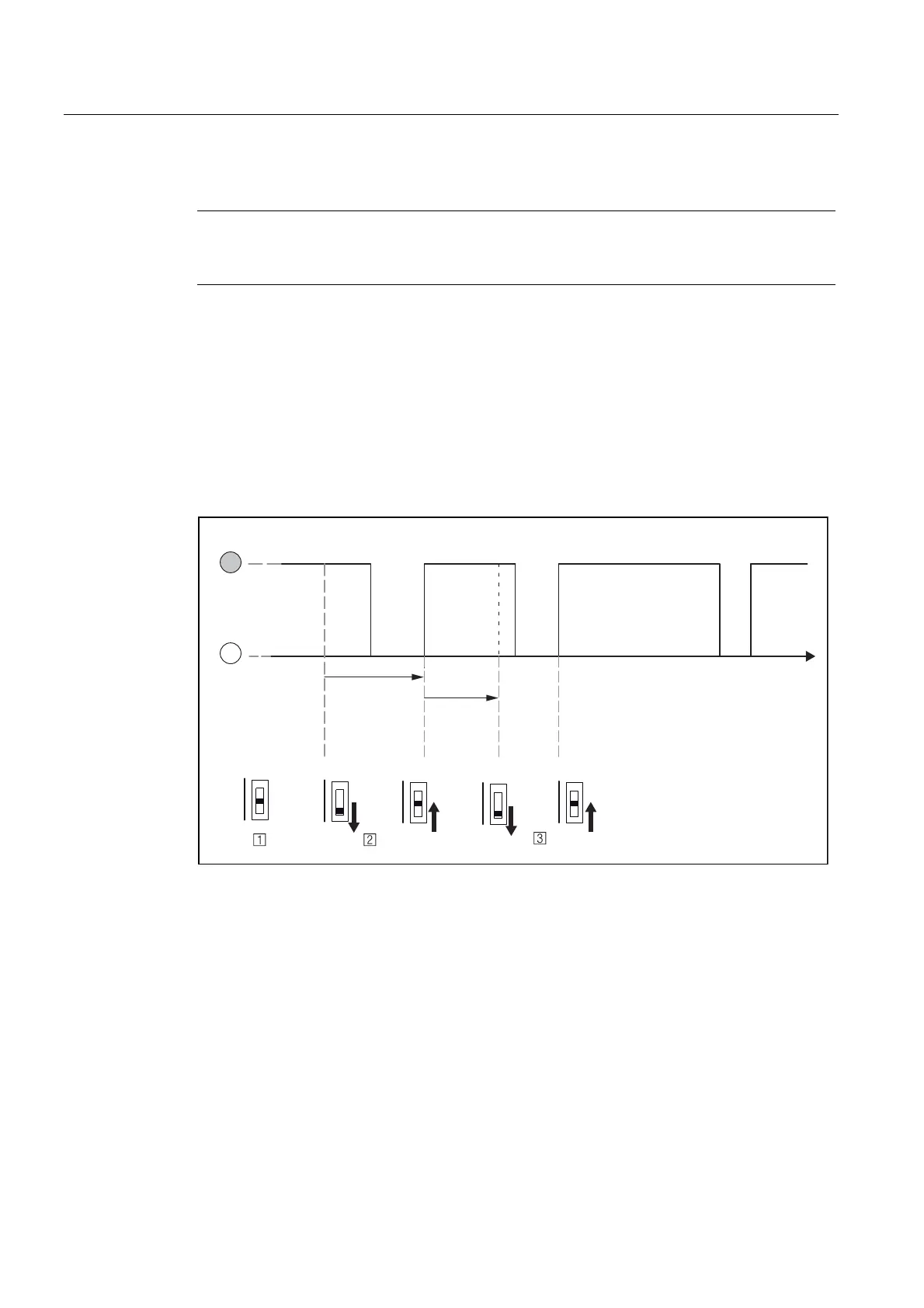

Figure 7-4 Mode selector operation sequence for the memory reset
