Interfaces
3.3 PROFINET interface (C240 PN)
SIMOTION C
40 Operating Instructions, 02/2012
Connectable devices
The following devices can be connected to the PROFINET interface:
● PG/PC programming device
● SIMATIC HMI devices
● SIMATIC S7 controllers with PROFINET interface
● Distributed I/O (e.g. SIMATIC ET 200M) with PROFINET interface
● Drive units with PROFINET interface
● SIMOTION devices with PROFINET interface according to PROFIdrive profiles /
IEC61800-7
● Teleservice adapter
● Gateways
Note
All released modules and devices are listed in the PM 21 Catalog and in chapter I/O
module
s approved for SIMOTION (Page 18). This documentation is supplied in electronic
format with SIMOTION S
COUT. Take note of the documentation on the individual
modules or devices!

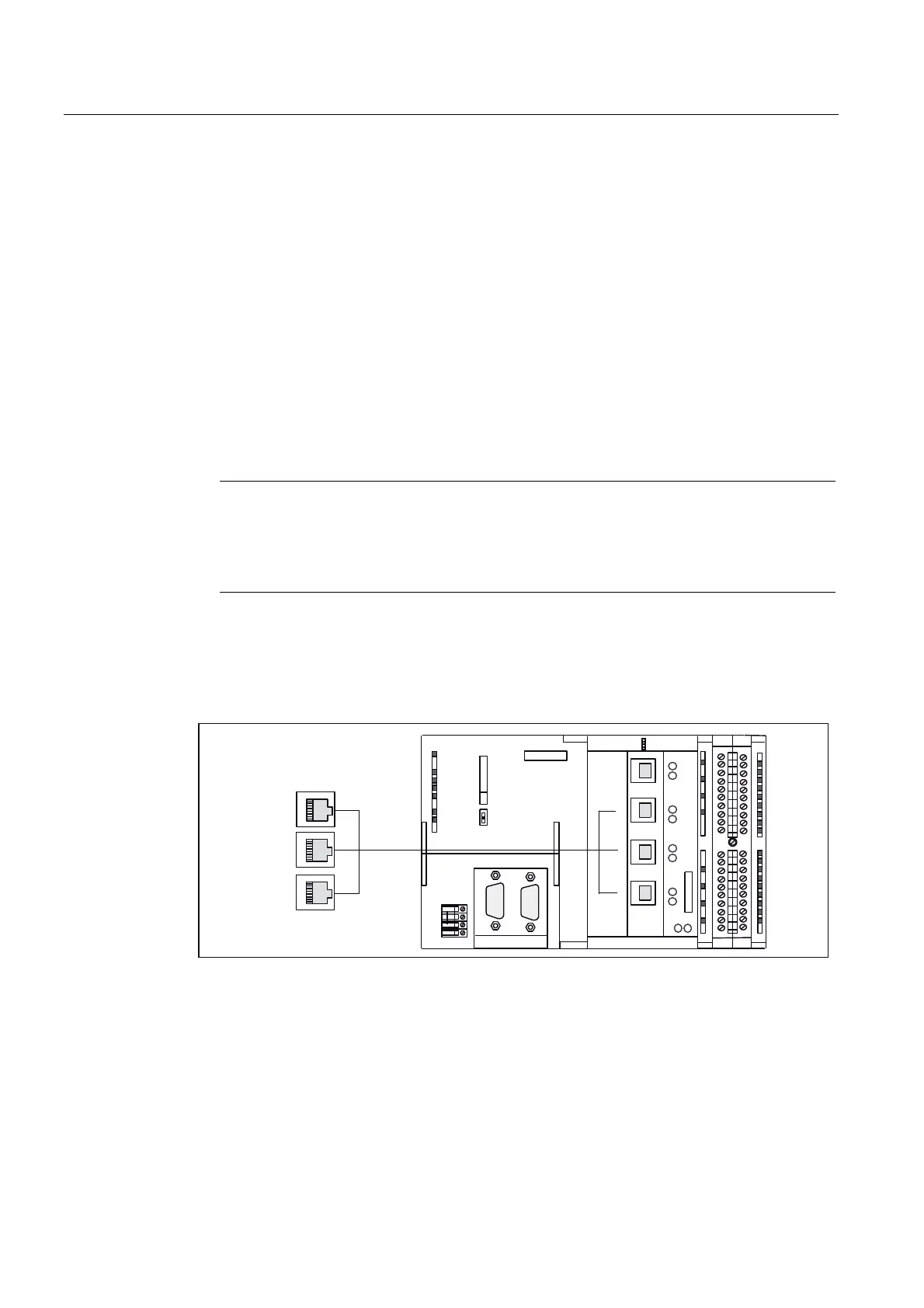

Interface position
The following figure shows the mounting position and the designation of the PROFINET IO
interface on the module.
;
;'303,
;'3
&31
6,(0(16
581
6723
05(6
;3
;3
;3
6<1&)$8/7
;
,(
;
31
,(
3
3
3
$8$%$$
Figure 3-3 X11 interface position (C240 PN), three ports P1, P2, P3
The following LED displays are arranged behind the front cover of the SIMOTION C240 PN.
For a description of the LED displays, see section Display elements (Page 34).
