Interfaces
3.6 Onboard measuring system interface (C230-2, C240)
SIMOTION C
56 Operating Instructions, 02/2012

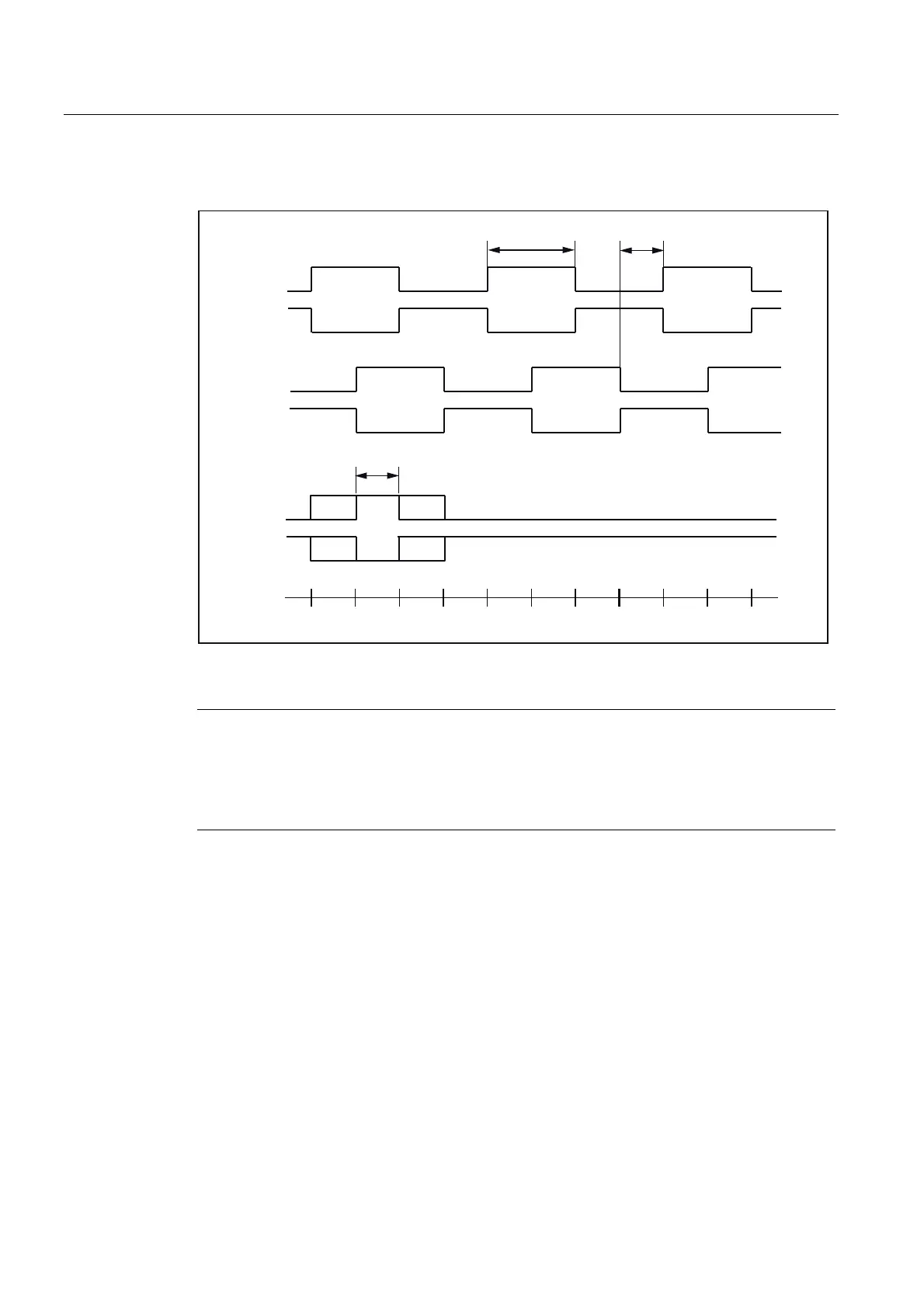

Signal forms of incremental encoders
&RXQWSXOVHZLWKSXOVHTXDGUXSOLFDWLRQ
ุQV ุQV
ุQV
$
$B1
%
%B1
=
=B1
Figure 3-9 Signal forms of incremental encoders
Note
If you want to connect incremental encoders without zero signals, then you must connect the
corresponding pins in the connector with the encoder power supply:
Pin 10 with Pin 7 or 9 (MEXT)
Pin 11 with Pin 4 or 6 (P5EXT)
