Configuring and installing
4.3 Installing
SIMOTION C
Operating Instructions, 02/2012
85

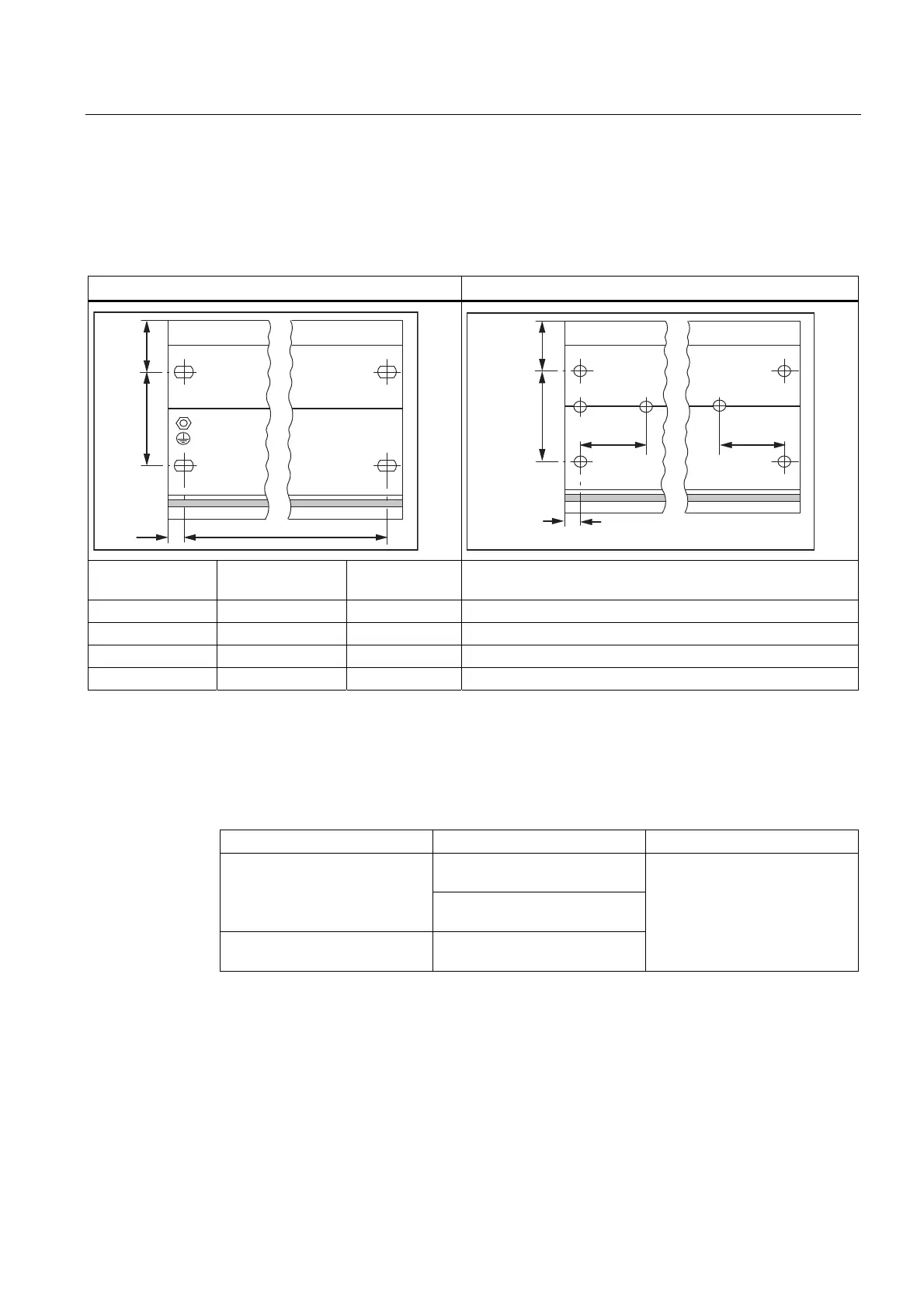

Dimension drawing for mounting holes
The mounting hole dimensions for the mounting rail are shown in the table below.
Table 4- 4 Mounting holes for rails
"Standard" mounting rail 2-meter mounting rail
PP
PP
D
E
PP
PP
PP
FD
PP
FD
PP
Mounting rail
length
Distance a Distance b -
160 mm 10 mm 140 mm
482.6 mm 8.3 mm 466 mm
530 mm 15 mm 500 mm
830 mm 15 mm 800 mm
Mounting screws
Choose one of the following types of screw to mount the mounting rail:
Table 4- 5 Mounting screws
For you can use... Explanation
M6 cylinder-head screw per ISO
1207/ISO 1580 (DIN 84/DIN 85)
Outer mounting screws
M6 hexagonal screw per ISO
4017 (DIN 4017)
Additional mounting screw (2-
meter mounting rail only)
M6 cylinder-head screw to ISO
1207/ISO 1580 (DIN 84/DIN 85)
Select a screw length that is
appropriate to your configuration
You also need 6.4 mm washers
per ISO 7092 (DIN 433)
