Interfaces
3.5 Power supply
SIMOTION D4x5
Manual, 02/2012
51
3.5 Power supply
This interface is provided exclusively for connection of the external power supply.
Note
When using external power supplies (e.g. SITOP), the ground potential must be connected
with the protective ground terminal (PELV).
Features of the interface
Table 3- 10 Interface X124
Features Type
Connector type Combicon
Connection possibility Up to 2.5 mm
2
Max. current carrying capacity 10 A
Maximum cable length 10 m
Interface assignments
Table 3- 11 Power supply X124
Pin Signal name Signal type Meaning
1 P24 VI Power supply 24 V
2 P24 VI 24 V power supply
3 G VO Ground
4 G VO Ground
Signal type: VI = Voltage input (power supply) VO = Voltage output (power supply)
Note
The 24 V is looped through via the 24 V connector. In this case, pin 1 is jumpered with pin 2,
and pin 3 is jumpered with pin 4.

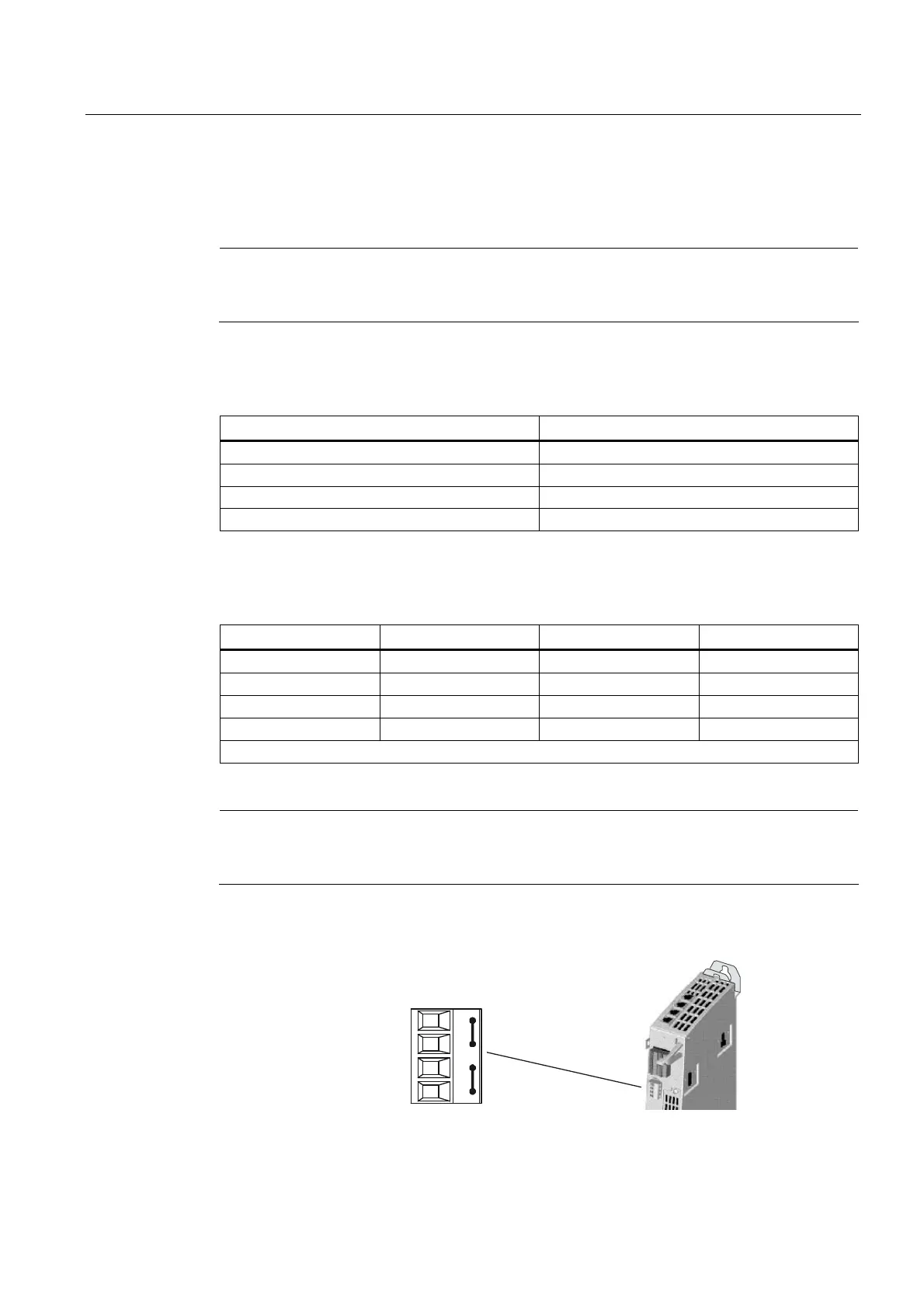

Position of power supply interface

*
3RZHUVXSSO\FRQQHFWRU
Figure 3-5 Power supply interface
