Dimension drawings
5.3 D445-1 dimension drawing
SIMOTION D4x5
Manual, 02/2012
71
5.3 D445-1 dimension drawing

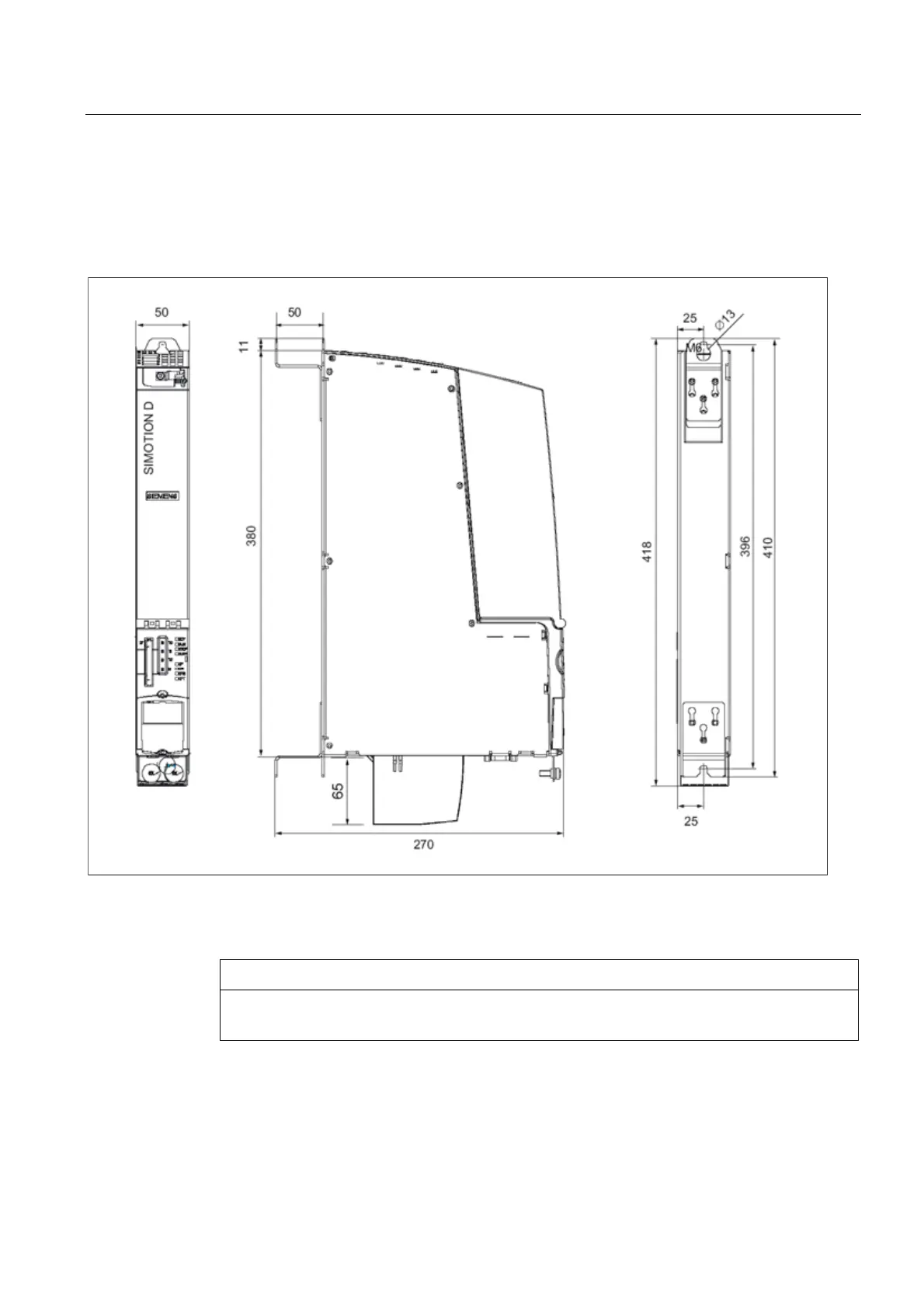

Figure 5-3 SIMOTION D445-1 dimension drawing
The SIMOTION D445-1 must always be operated with a double fan/battery module.
NOTICE
The 80 mm clearances above and below the components must be observed. The unit
protects itself from overheating by shutting down.
