1.9 CompactFlash card
SIMOTION D4x5
30 Manual, 02/2012
1.9.2 CompactFlash card
Type plate information

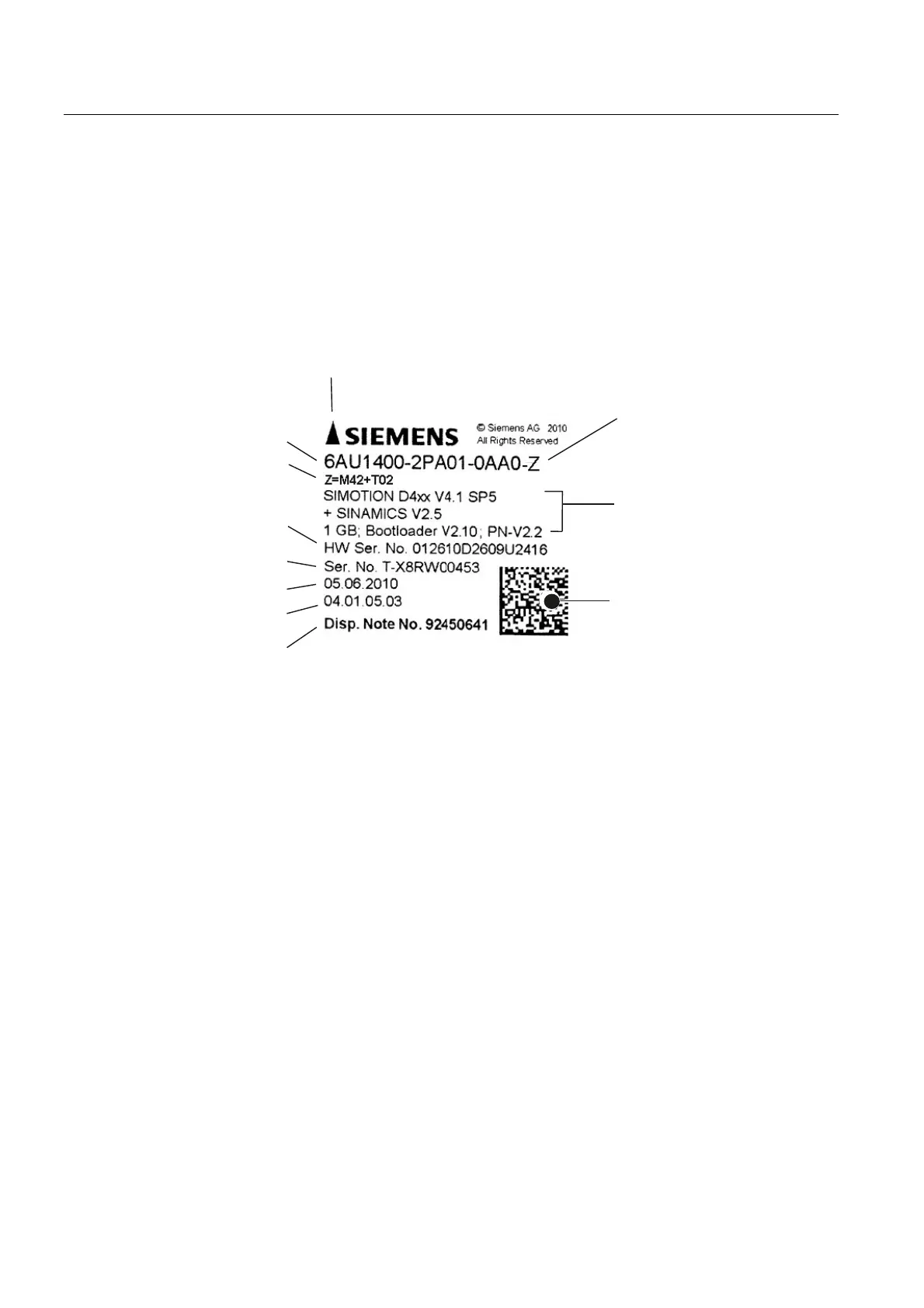

The following figure shows you all the information included on the type plate of the
CompactFlash Card.
0DUNLQJIRUWKHLQVHUWGLUHFWLRQRI
WKH&RPSDFW)ODVK&DUG
,GHQWLILHUIRU
&RPSDFW)ODVK
&DUGZLWK=RSWLRQ
3URGXFWDQGYHUVLRQ
GHVLJQDWLRQFDUGFDSDFLW\
ERRWORDGHUYHUVLRQ
'DWHRIPDQXIDFWXUH
'DWD0DWUL[&RGH
RUGHUQXPEHUHWF
2UGHUQXPEHU
/LVWRI=RSWLRQVOLFHQVHVRQ&RPSDFW
)ODVK&DUGDVGHOLYHUHG
+:VHULDOQXPEHURI&RPSDFW)ODVK
&DUG
8QLTXHQXPEHU
'HOLYHU\QRWHQXPEHU
9HUVLRQGLJLW
KHUH963+)
Figure 1-8 Type plate of the CompactFlash Card
Pre-installed runtime licenses
From V4.1 SP1 HF6, pre-installed licenses are printed on the type plate of the
CompactFlash Card as a Z option on the label underneath the order number.
Example
Example with Z option for D425 MultiAxes Package + two TControl licenses:
6AU1400-2PA01-0AA0-Z
Z=M42+T02
A maximum of seven different Z options are printed on the label of the CompactFlash Card.
When there are more than seven different Z options, the text "Z = see delivery order" is
printed on the CompactFlash Card in place of the Z options.
