6.4 Controller Extension CX32
SIMOTION D4x5
92 Manual, 02/2012
6.4.2.2 DRIVE-CLiQ interface

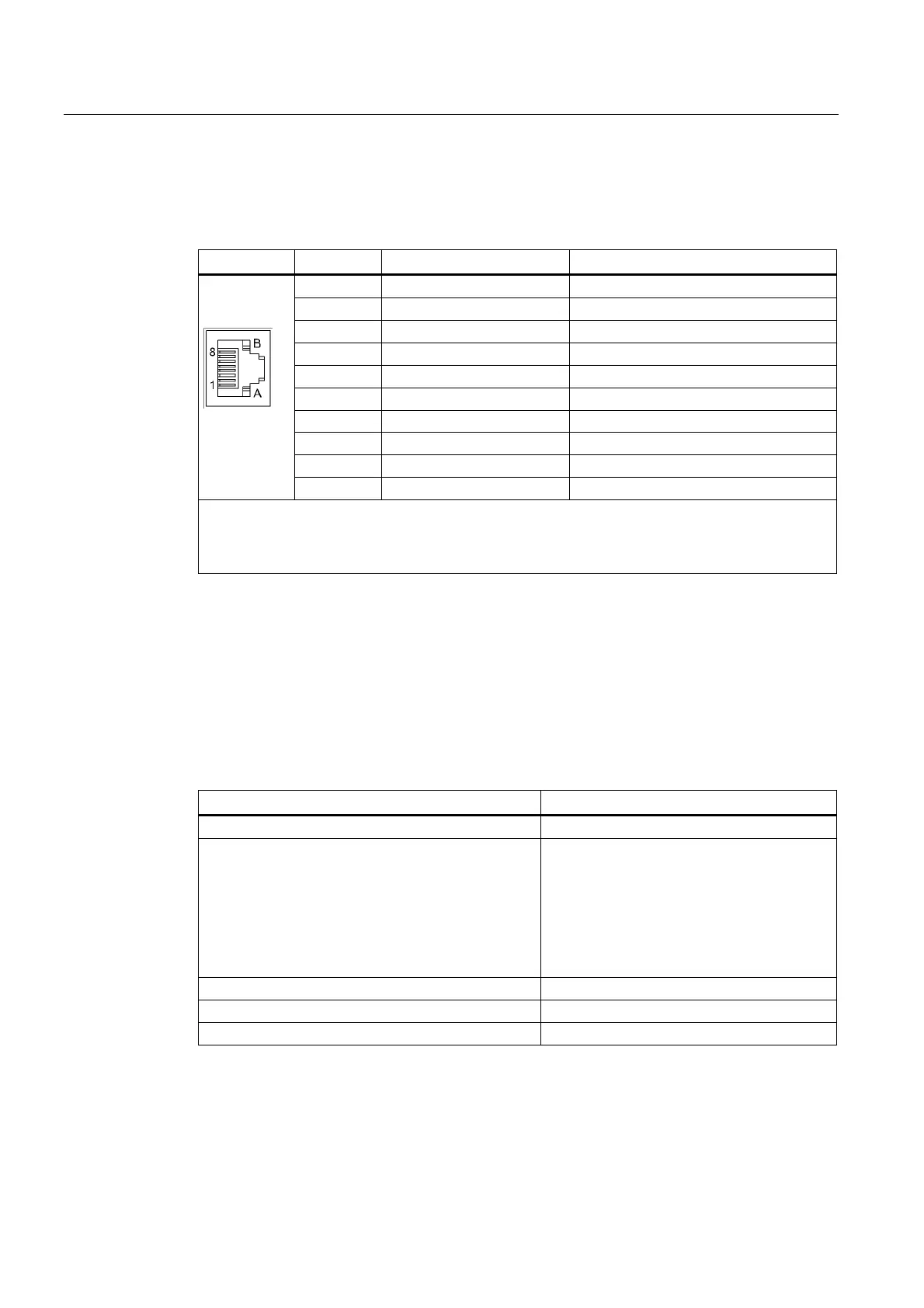

Table 6- 14 DRIVE-CLiQ interface X100 – X103
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B G (0 V) Electronic ground
Dust protection blanking plugs for sealing unused DRIVE-CLiQ ports
• Three blanking plugs contained in the CX32 scope of delivery
• Blanking plugs (50 pcs) order number: 6SL3066-4CA00-0AA0
6.4.2.3 Digital inputs/outputs (X122)
Interface characteristics
Sensors and actuators can be connected to the X122 connector via digital inputs and
outputs.
Table 6- 15 X122 wiring
Characteristics Type
Connector type Micro Combicon
Connectable cable types:
• Rigid
• Flexible
• Flexible, with wire-end ferrule without plastic
sleeve
• AWG / kcmil
Conductor cross-sections:
• 0.14 mm
2
to 0.5 mm
2
• 0.14 mm
2
to 0.5 mm
2
• 0.25 mm
2
to 0.5 mm
2
• 26 to 20
Stripped length 8 to 9 mm
Tool Screwdriver 0.4 x 2.0 mm
Max. current carrying capacity (ground) 4 A
