Technical data
4.5 Input and output circuit
SIMOTION D4x5
68 Manual, 02/2012
4.5 Input and output circuit
Protective circuit

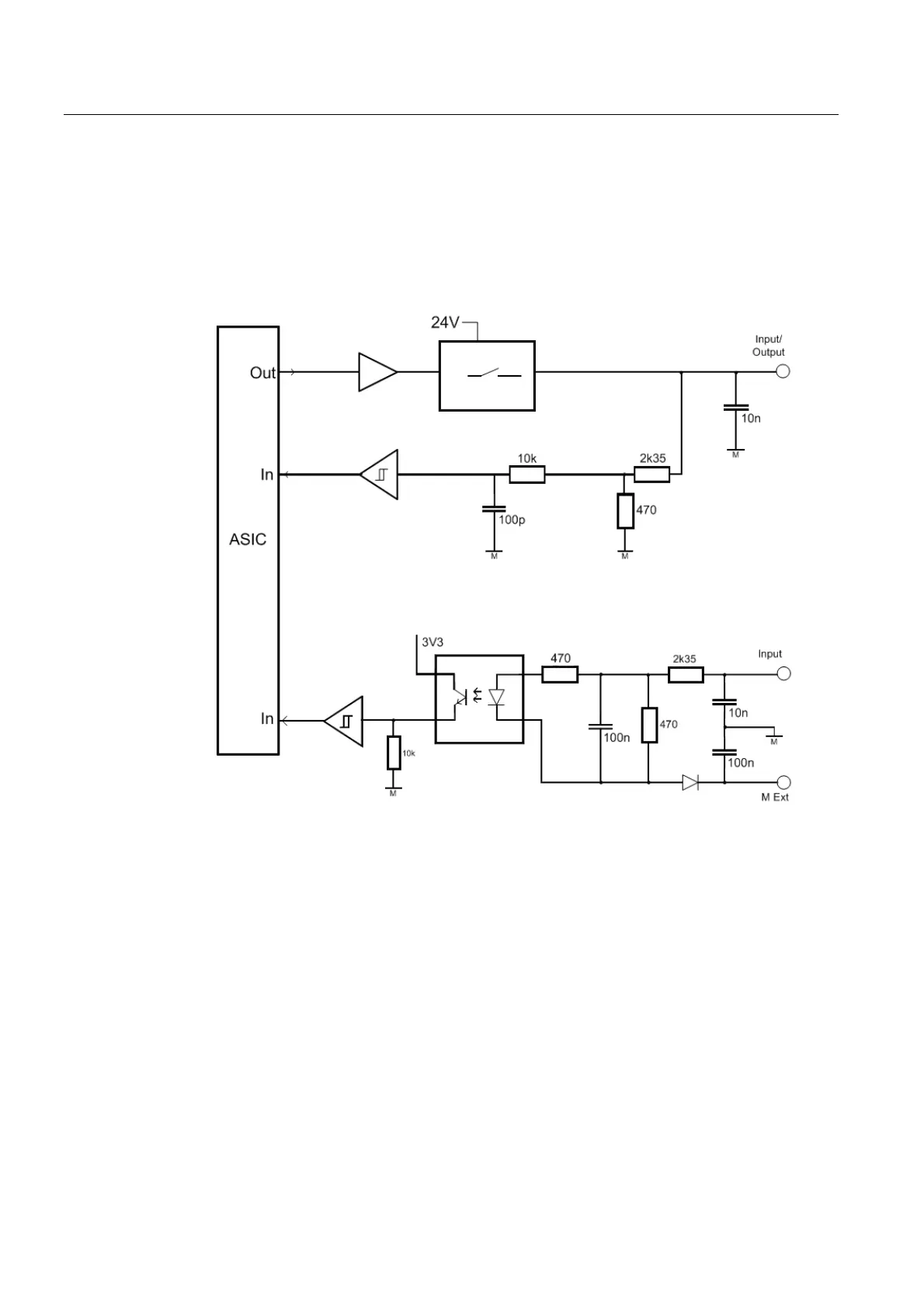

Figure 4-1 SIMOTION D4x5/CX32 input and output circuits
