Interfaces
3.8 Measuring sockets
SIMOTION D410-2
Manual, 02/2012
57

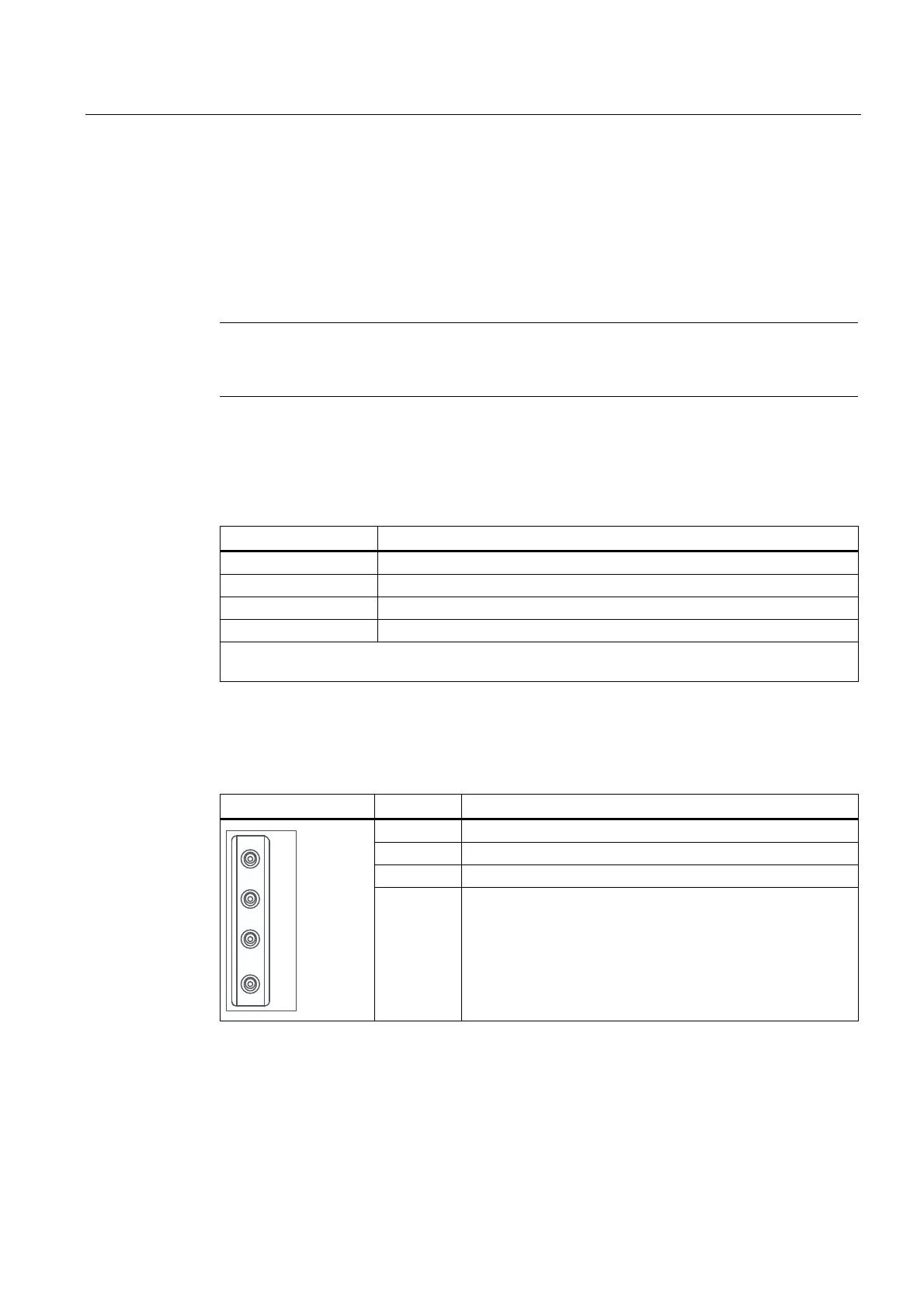

3.8 Measuring sockets
Properties
The T0 - T2 measuring sockets are used to output analog signals. Any interconnectable
signal can be output via SINAMICS on every measuring socket on the control unit.
Note
The measuring sockets are suited for multiple-spring wire connectors with a diameter of
2 mm.
Interface characteristics
Table 3- 23 T0, T1 and T2 interfaces
Characteristic Type
Connector type 2 mm sockets
Voltage 0 V to 5 V
Resolution 8-bit
Load current max. 3 mA
Sustained short-circuit proof
Reference potential is M terminal
Interface assignment
Table 3- 24 Interface assignments T0, T1 and T2
Representation Pin Designation
T0 Measuring socket 0
T1 Measuring socket 1
T2 Measuring socket 2
7
7
7
0
M Ground
