05.00 Transport, Unpacking and Assembly
Siemens AG 6SE7087-6AK85-1AA0
2-5
Rectifier/Regenerating Unit Operating Instructions
A10
X300
3)
551
296
234
376
92
40
40
40
80
1U2/1T1 1V2/1T2 1W2/1T3
45
1300
119 270
50
26
50
252
250
67
119
61
26
26
C/L+ D/L-
63
W1
L3
V1
L2
U1
L1
PE1
508
A23
130
155
85
225
285
5040
70
F24 F21 F26 F23 F22 F25
F11 F14 F13 F16 F15 F12
T1
T2
T3
T4
PE1
PE2
PE2
X19 5)
X9 4)
X19
F4
F3
X27
X29
X9
F5 F1 F2
C/L+D/L-
2)
1)
2)
1)
1)
234
376
92 40
40
40
V1/L2U1/L1 W1/L3
X19
X9
424
6)
7)
7)
7)
1400
PMU
Options
Level B
Level A
Exhaust air
Air intake
Mounting holes for wall mounting
with M8 bolts
Front view
1) Mounting hole for M12 screw
2) M12 thread
3) Screen connection for cables
4) Connector for 24 V DC power supply
and main contactor
5) Fan connection
6) Remove transport plates before start-up
7) For cabinet installation:
Insulate this part of the unit against the
cabinet walls and door
When the units are installed in cabinets,it must
be ensured that the air intake and exhaust is
adequate (for air requirements and intake air
temperature, see Section 14 "Technical Data").
No displacement of the centre of gravity
Weight: refer to Section 14 (Technical Data)
Dimension: mm

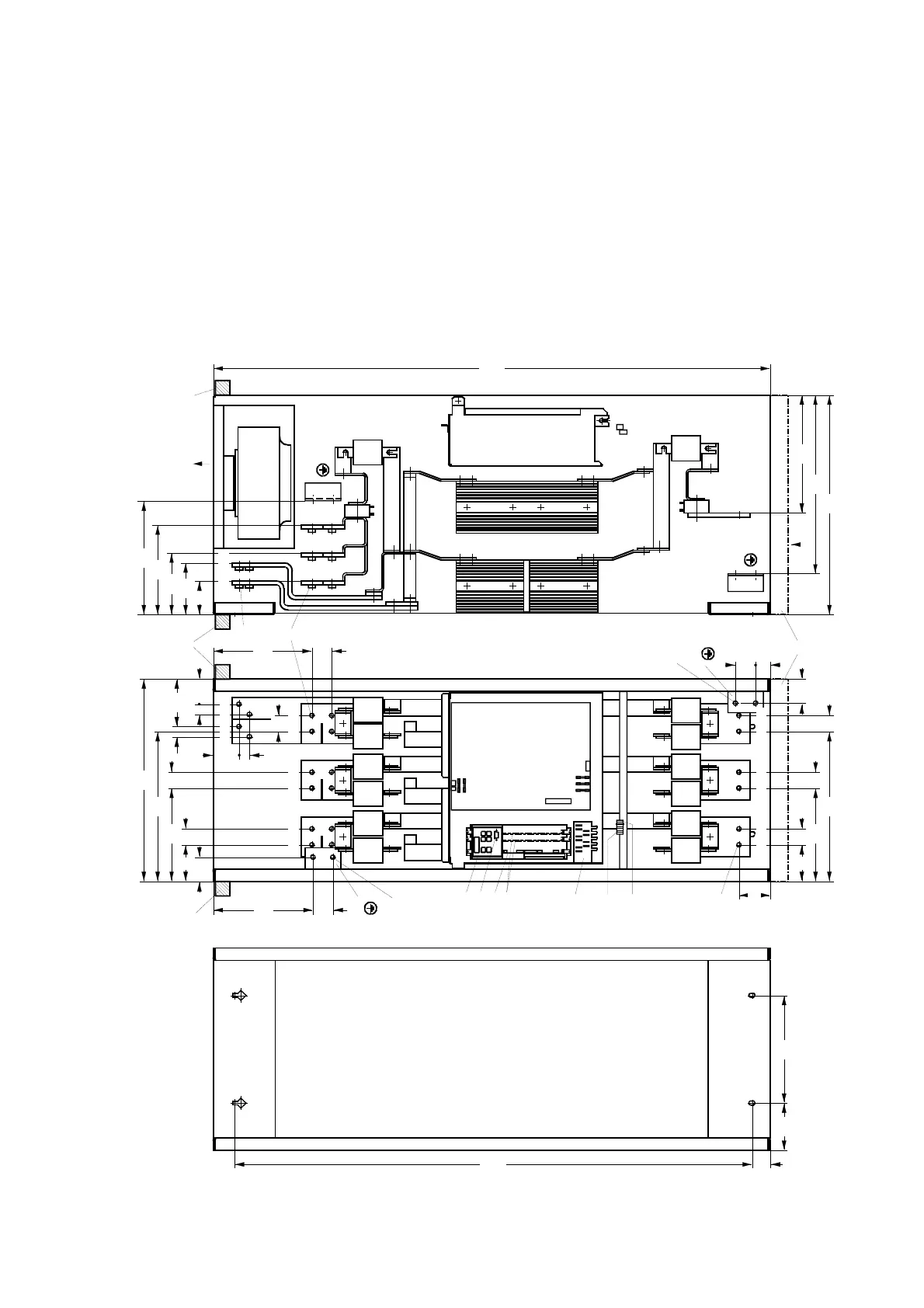

Figure 2.4 Dimension drawing, size H
