Connection 09.02
3-16 Siemens AG 6SE7087-6AK85-1AA0
Rectifier/Regenerating Unit Operating instructions
35
Cable binder
Connector
Slide on shield
and secure with
shrink-on tubing,
for example
Adapt length
to design
Do not bend
spring over
Shield
Fitting the shielding clamp
Releasing the shielding clamp
manually or using a screwdriver,
press the clamp together and extract
it in the updown direction.
Caution!
The clamps are sharp-edged!
Ø
≤
15mm Ø
≤
7.5mm Ø
≤
5mm

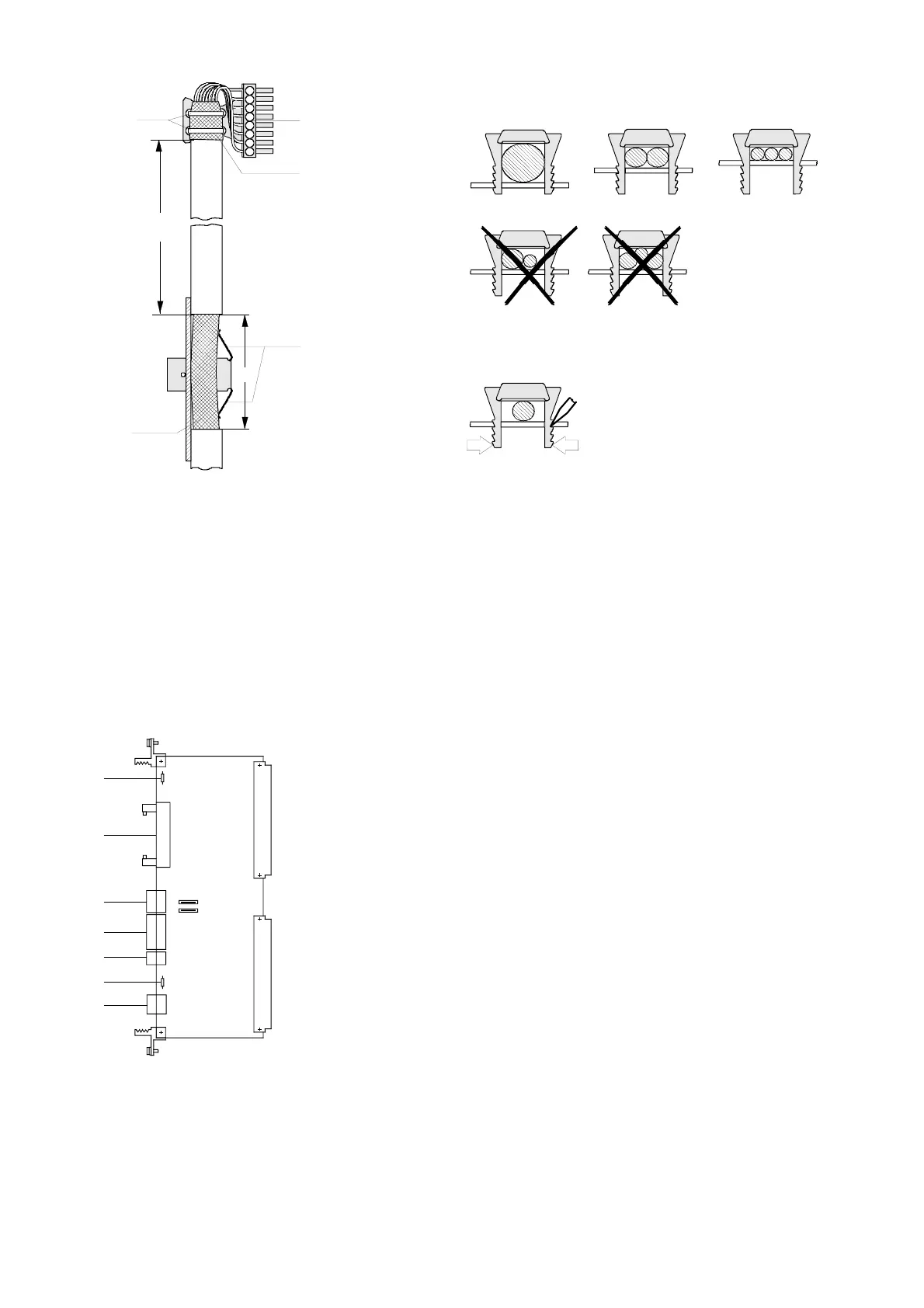

Figure 3.6 Connecting the control leads and handling the shielding clamps
If two shielding clamps cannot cope with the number of control leads on the Size C unit, the "EMC shielding
enclosure" option should be used.
Order number:
♦ Size C 6SE7090-0XC87-3CA0
3.3.3 Terminals and setting elements on the CUR (A10) module
X100
X101
X102
PMU
X104
R135
R136
S1
S2
A10
CUR
Figure 3.7 Control terminals and setting elements on the CUR
