Options 09.02
9-4 Siemens AG 6SE7087-6AK85-1AA0
Rectifier/Regenerating Unit Operating Instructions
9.3 Power Supply
A SITOP power supply as described in Catalog KT10 is recommended for the rectifier/regenerating unit
(connector X9).
9.4 Operator control panel OP1S
Option Description
OP1S User-friendly operator control panel with plain
text display
Order No.: 6SE7090-0XX84-2FK0
Table 9.5 Operator control options
The optional comfort version of the operator panel with a
plaintext display is plugged into the position in the device door
intended for that purpose.
It is thus connected to the serial basic device interface SST1.
If the UP or DOWN keys of the OP1S is used to select
adjacent parameter numbers, the missing numbers are
skipped in the range of the basic device parameters.
With parameters of a technology module, this automatic
skipping of missing numbers is not possible. In that case, the
numbers of the existing parameters must be entered directly.
P
Fault
Run
0 +/- Reset
1 2 3
654
7 8 9Jog
O
I

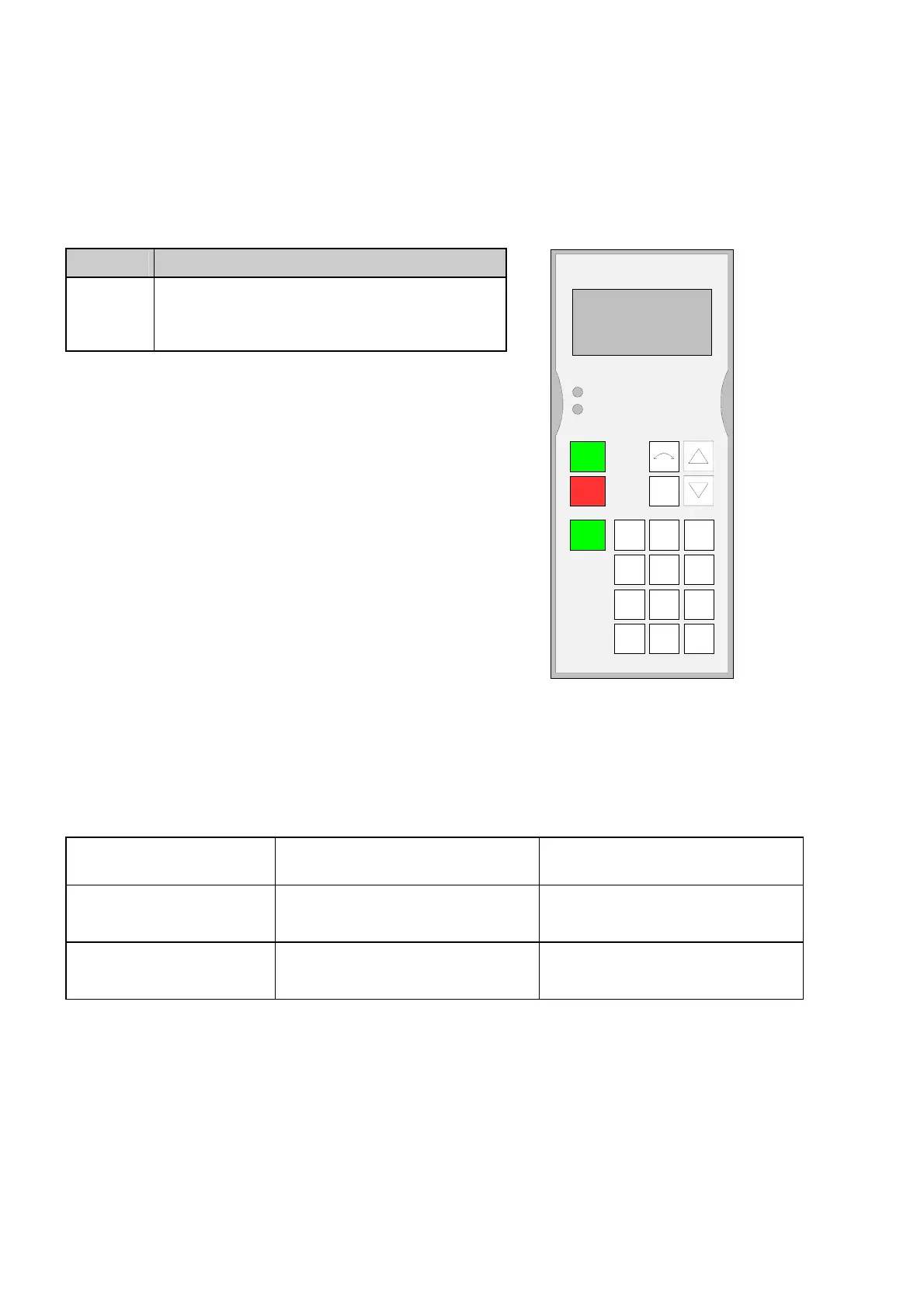

Figure 9.1 OP1S
The OP1S provides the option of selecting parameters directly by entering their number on the keyboard. The
following applies:
Displayed number Number to be entered on the OP1S
Basic device
parameter
rxxx, Pxxx (0)xxx
Parameter of a
technology module
Hxxx, dxxx 1xxx
