Siemens Simovert 6SE70 Series User Manual

Start-Up 09.02
4-12 Siemens AG 6SE7087-6AK85-1AA0
Rectifier/Regenerating Unit Operating Instructions

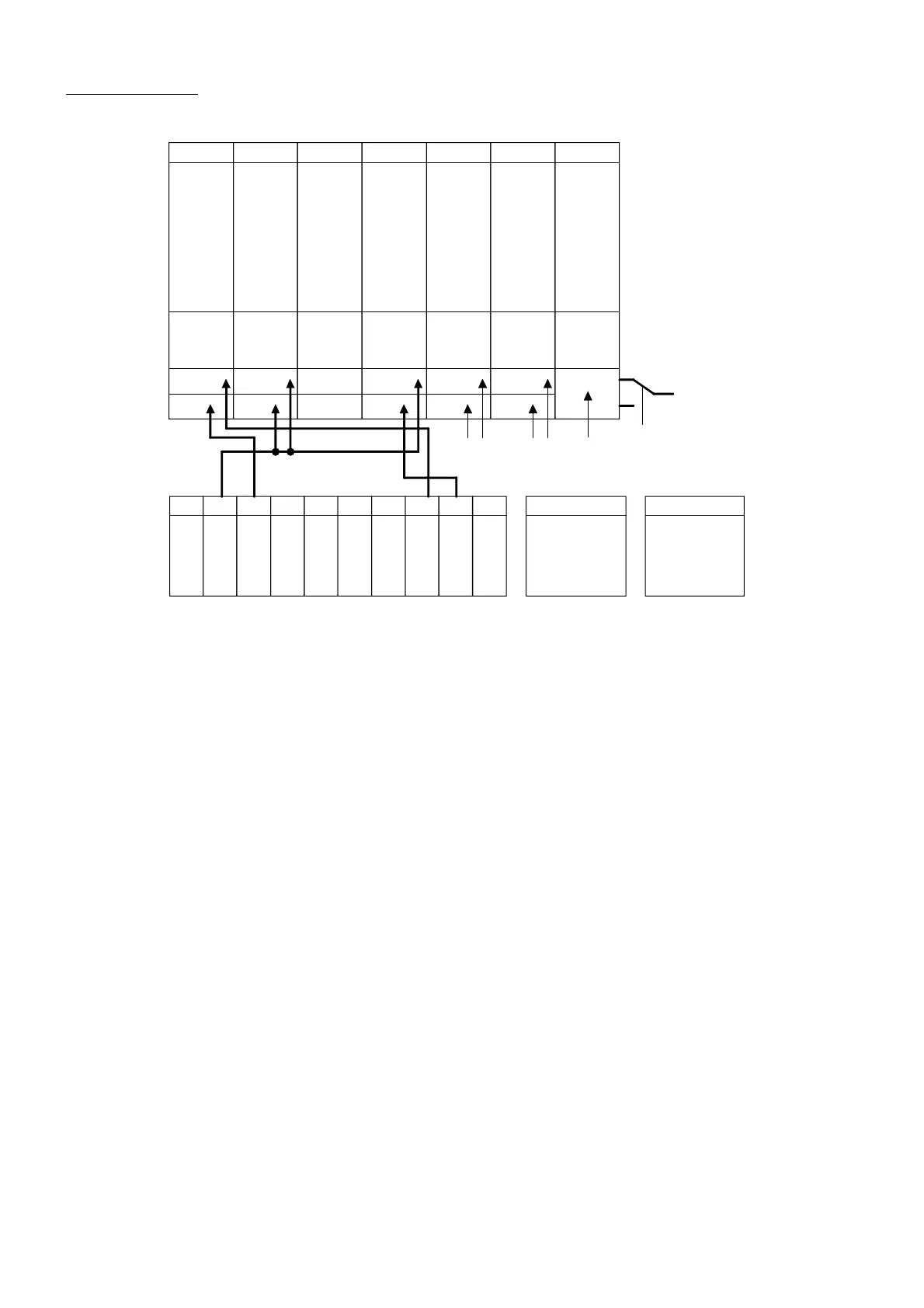

Typical application:
i001=
i002=
P554
0
i001=
i002=
P555
P556
P557
1
2
i001=
i002=
P561
3
i001=
i002=
P...
...
i001=
i002=
P...
...
P591
31
0000 0001 1001 1002 1003 1004 1005 1010 2001 2004
1: ON 0: OFF1
1: Op. cond. 0: OFF2
1: Op. enable 0: Op. inhibit
1: Main con. chckbk. 0: no main con. chckbk.
Constant- value = 0 Constant- value = 1
CUR, BE1 -X101:9
PMU
SST1 (Word1)
3001 to 4504
Options
CUR, BE2 -X101:10
CUR, BE3 -X101:11
CUR, BE4 -X101:12
CUR, BE5 -X101:13
SST1 (Word4)
Control word bit
Select.
parameter
Basic set.
Reserve set.
Value
Source
Changeover using
control word bit 30
P590
6001 to 6005
SST1 (Peer-to- Peer) word 1 to word 5
Meaning
ON/OFF1: Basic set.: via PMU (keys I/0) Reserve set.: via bin. input 1 of CUR
Op. cond/OFF2: Basic set.: Constant value= 1= always op. cond. Reserve set.: Constant value = 1 = always op. cond.
Note:
For OFF2 and OFF3, 3 selection parameters can be assigned differently in the same index!
Op. enable/inhibit: Basic set.: Constant value = 1 = always op. enable. Reserve set.: Constant value = 1 = via serial
interface SST1 of the CUR
