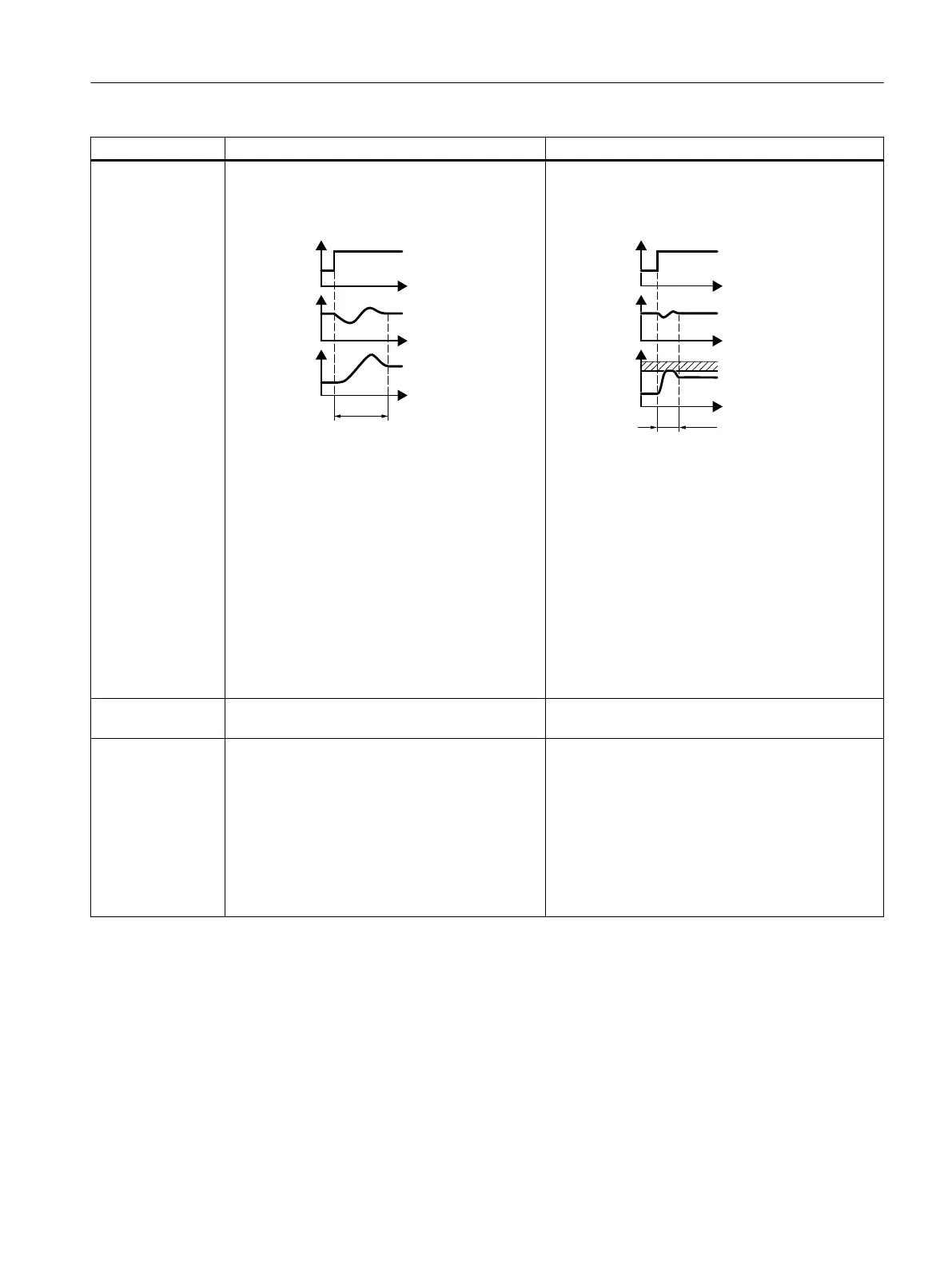

Siemens SINAMICS G120C User Manual

Application class Standard Drive Control Dynamic Drive Control
Properties
• Typical settling time after a speed change:
100ms…200ms
• Typical settling time after a load surge: 500 ms
6SHHG
/RDG
0RWRU
WRUTXH
W
W
W
PV
• "Standard Drive Control" is suitable to address
the following requirements:
– All motor power ratings
– Ramp-up time 0→rated speed (depend‐
ing on the motor power rating):
1s(0.1kW)…10s(45kW)
– Applications with steady load torque with‐
out load surges
• "Standard Drive Control" is insensitive with re‐
spect to imprecise setting of the motor data
• Typical settling time after a speed change:
<100ms
• Typical settling time after a load surge: 200ms
6SHHG
/RDG
0RWRU
WRUTXH
W
W
PV
• "Dynamic Drive Control" controls and limits the
motor torque
• Typically achieves a torque accuracy: ±5% for
15%… 100% of the rated speed
• We recommend "Dynamic Drive Control" for the
following applications:
– Motor power ratings >11kW
– For load surges 10%…>100% of the rated
motor torque
• "Dynamic Drive Control" is necessary for a ramp-
up time 0 → rated speed (dependent on the rated
motor power): < 1 s (0.1 kW) … < 10 s (132 kW).
Max. output fre‐
quency
550Hz 240Hz
Commissioning
• Unlike "Dynamic Drive Control," no speed con‐
troller needs to be set
• When compared to "Expert":
– Simpli󹪝ed commissioning using prede‐
󹪝ned motor data
– Reduced number of parameters
• "Standard Drive Control" is preset for convert‐
ers frame size A… frame sizeC
• Fewer number of parameters when compared to
setting "Expert"
• "Dynamic Drive Control" is preset for converters
frame size D… frame sizeF
Commissioning
5.5Quick commissioning with a PC.
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 143

Siemens SINAMICS G120C Specifications

General

Communication Interfaces	PROFINET, PROFIBUS, USS, Modbus RTU
Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Power Range	0.55 kW to 132 kW
Voltage Range	380 V to 480 V
Output Voltage	0 V to Supply Voltage
Frequency Range	0 Hz to rated output frequency
Control Modes	Vector control with encoder
Protection	Overload, overvoltage, undervoltage, short circuit, ground fault
Relative Humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
