Dimension drawings
8.3 1FK7 motors with planetary gearbox SP+
Synchronous Motors 1FK7
186 Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1

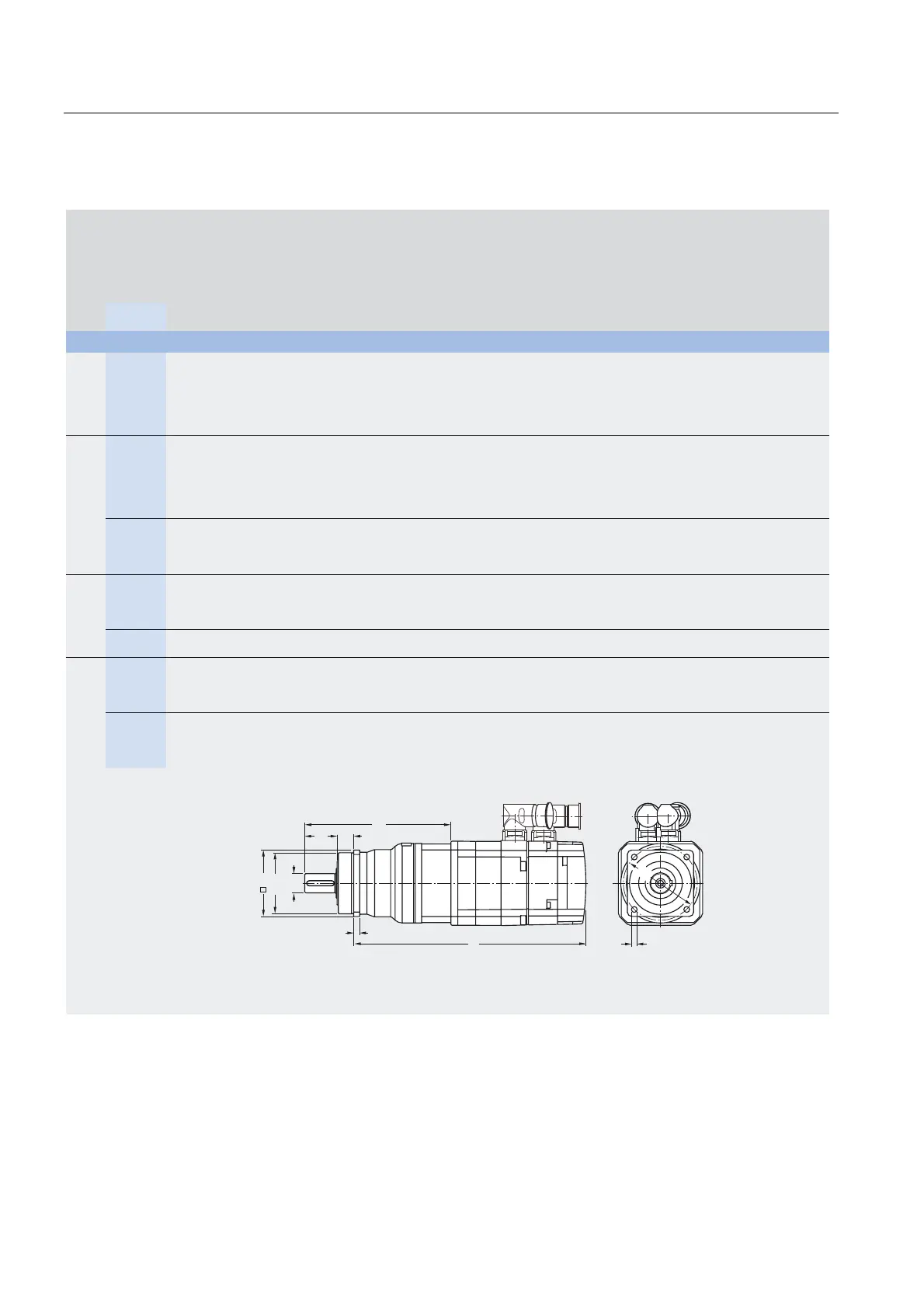

1FK7 High Dynamic motors without/with DRIVE-CLiQ with planetary gearbox SP+, two-stage
For motor Dimensions in mm (in)
Resolver Incremental enco-
der sin/cos 1 V
pp
,
Basic absolute
encoder (EnDat)
1)
Absolute
encoder
(EnDat)
Planetary
gearbox
without
brake
with
brake
without
brake
with
brake
without
brake
with
brake
Shaft
height
Type F4 Type D1 D2 D3 D4 L5 L6 L7 L8 K K K K K K
1FK7 High Dynamic with SP+ planetary gearbox, two-stage, type IM B5, natural cooling, with connector, without/with brake
36 1FK7033-7 62 SP060S-MF2 60 16 5.5 68 164 28 20 6 285 310 310 335 310 335
(2.44) (2.36) (0.63) (0.22) (2.68) (6.46) (1.10) (0.79) (0.24) (11.23) (12.21) (12.21) (13.20) (12.21) (13.20)
1FK7033-7 76 SP075S-MF2 70 22 6.6 85 179 36 20 7 292 317 317 342 317 342
(2.99) (2.76) (0.87) (0.26) (3.35) (7.05) (1.42) (0.79) (0.28) (11.50) (12.49) (12.49) (13.47) (12.49) (13.47)
1FK7033-7 101 SP100S-MF2 90 32 9 120 230 58 30 10 311 336 336 361 336 361
(3.98) (3.55) (1.26) (0.35) (4.73) (9.06) (2.29) (1.18) (0.39) (12.25) (13.24) (13.24) (14.22) (13.24) (14.22)
48
1FK7043-7 76 SP075S-MF2 70 22 6.6 85 192 36 20 7 327 356 348 377 356 385
(2.99) (2.76) (0.87) (0.26) (3.35) (7.56) (1.42) (0.79) (0.28) (12.88) (14.03) (13.71) (14.85) (14.03) (15.17)
1FK7043-7 101 SP100S-MF2 90 32 9 120 234 58 30 10 337 366 358 387 366 395
(3.98) (3.55) (1.26) (0.35) (4.73) (9.22) (2.29) (1.18) (0.39) (13.28) (14.42) (14.11) (15.25) (14.42) (15.56)
1FK7043-7 141 SP140S-MF2 130 40 11 165 298 82 30 12 377 406 398 427 406 435
(5.56) (5.12) (1.58) (0.43) (6.50) (11.74) (3.23) (1.18) (0.47) (14.85) (16.00) (15.68) (16.82) (16.00) (17.14)
1FK7044-7 101 SP100S-MF2 90 32 9 120 234 58 30 10 362 391 383 412 391 420
(3.98) (3.55) (1.26) (0.35) (4.73) (9.22) (2.29) (1.18) (0.39) (14.26) (15.41) (15.09) (16.23) (15.41) (16.55)
1FK7044-7 141 SP140S-MF2 130 40 11 165 298 82 30 12 402 431 432 452 431 460
(5.56) (5.12) (1.58) (0.43) (6.50) (11.74) (3.23) (1.18) (0.47) (15.84) (16.98) (17.02) (17.81) (16.98) (18.12)
63
1FK7061-7 101 SP100S-MF2 90 32 9 120 252 58 30 10 349 392 372 415 381 424
(3.98) (3.55) (1.26) (0.35) (4.73) (9.93) (2.29) (1.18) (0.39) (13.75) (15.44) (14.66) (16.35) (15.01) (16.71)
1FK7061-7 141 SP140S-MF2 130 40 11 165 305 82 30 12 378 421 401 444 410 453
(5.56) (5.12) (1.58) (0.43) (6.50) (12.02) (3.23) (1.18) (0.47) (14.89) (16.59) (15.80) (17.49) (16.15) (17.85)
1FK7064-7 141 SP140S-MF2 130 40 11 165 305 82 30 12 442 485 465 508 474 517
(5.56) (5.12) (1.58) (0.43) (6.50) (12.02) (3.23) (1.18) (0.47) (17.41) (19.11) (18.32) (20.02) (18.68) (20.37)
80
1FK7085-7 182 SP180S-MF2 160 55 13.5 215 355 82 30 15 504 547 526 569 535 577
(7.17) (6.30) (2.17) (0.53) (8.47) (13.99) (3.23) (1.18) (0.59) (19.84) (21.54) (20.71) (22.40) (21.06) (22.72)
1FK7085-7 212 SP210-MF2 180 75 17 250 397 105 38 17 515 557 537 580 546 588
(8.35) (7.09) (2.96) (0.67) (9.85) (15.64) (4.14) (1.50) (0.67) (20.29) (21.95) (21.16) (22.85) (21.51) (23.17)
1FK7086-7 182 SP180S-MF2 160 55 13.5 215 355 82 30 15 504 547 526 569 535 577
(7.17) (6.30) (2.17) (0.53) (8.47) (13.99) (3.23) (1.18) (0.59) (19.84) (21.54) (20.71) (22.40) (21.06) (22.72)
1FK7086-7 212 SP210-MF2 180 75 17 250 397 105 38 17 515 557 537 580 546 588
(8.35) (7.09) (2.96) (0.67) (9.85) (15.64) (4.14) (1.50) (0.67) (20.29) (21.95) (21.16) (22.85) (21.51) (23.17)
1FK703.-7
1FK704.-7
1FK706.-7
1FK708.-7
L6
L5
L7
G_DA65_XX_00243
D3
D4
K
L8
D2
D1
Ø
Ø
F4
1)
The 1FK7033 motor cannot be supplied with a basic absolute
encoder.
