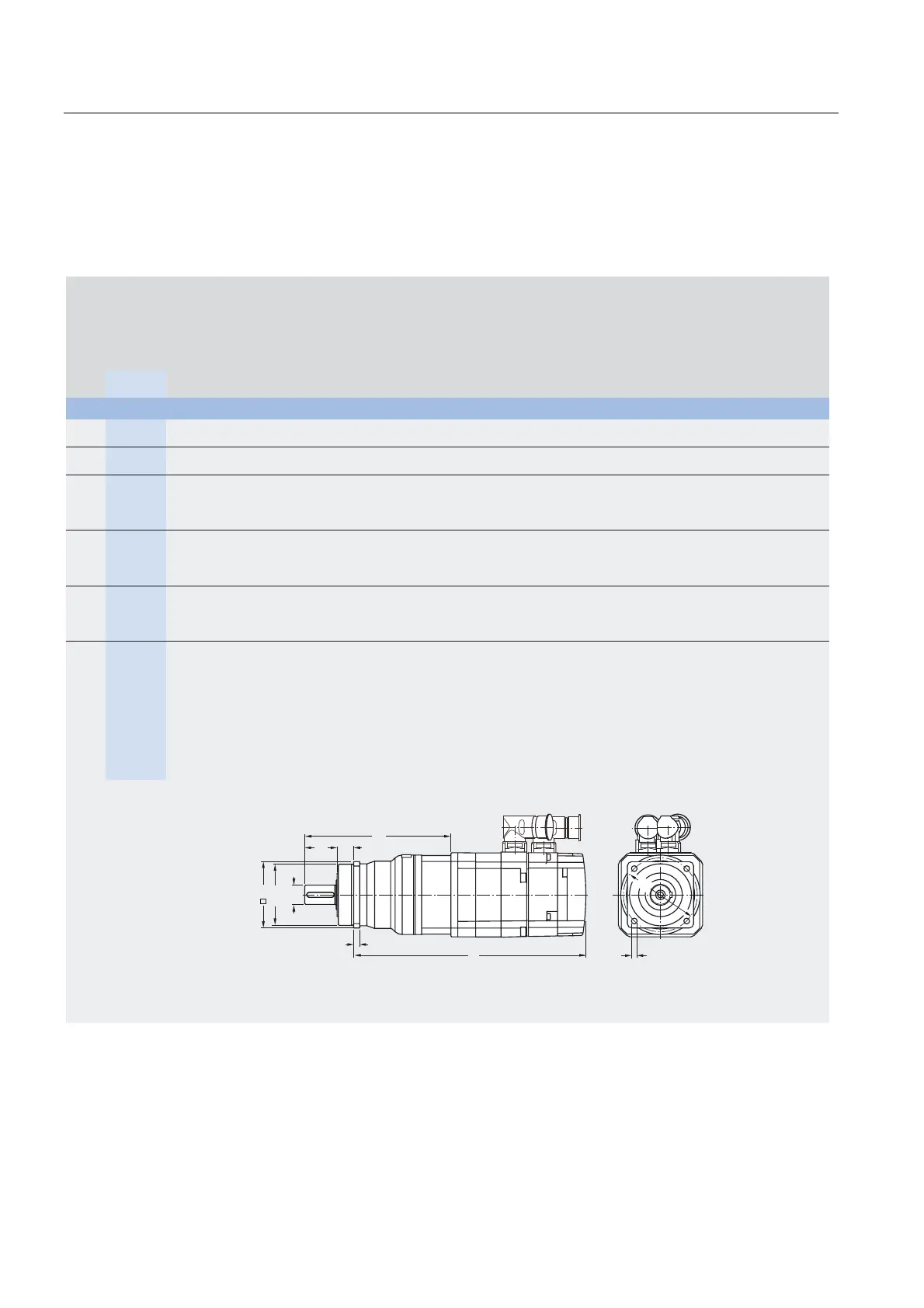

Dimension drawings
8.3 1FK7 motors with planetary gearbox SP+
Synchronous Motors 1FK7
182 Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1
8.3 1FK7 motors with planetary gearbox SP+
1FK7 Compact motors without/with DRIVE-CLiQ, with planetary gearbox SP+, single-stage
For motor Dimensions in mm (in)
Resolver Incremental enco-
der sin/cos 1 V
pp
,
Basic absolute
encoder (EnDat)
1)
Absolute
encoder
(EnDat)
Planetary
gearbox
without
brake
with
brake
without
brake
with
brake
without
brake
with
brake
Shaft
height
Type F4 Type D1 D2 D3 D4 L5 L6 L7 L8 K K K K K K
1FK7 Compact with SP+ planetary gearbox, single-stage, type IM B5, natural cooling, with connector, without/with brake
28 1FK7022-5 62 SP060S-MF1 60 16 6 68 137 28 20 6 242 264 267 289 267 289
(2.44) (2.36) (0.63) (0.24) (2.68) (5.40) (1.10) (0.79) (0.24) (9.53) (10.40) (10.52) (11.39) (10.52) (11.39)
36
1FK7032-5 62 SP060S-MF1 60 16 6 68 142 28 20 6 244 269 269 294 269 294
(2.44) (2.36) (0.63) (0.24) (2.68) (5.59) (1.10) (0.79) (0.24) (9.61) (10.60) (10.60) (11.58) (10.60) (11.58)
48
1FK7040-5 76 SP075S-MF1 70 22 7 85 168 36 20 7 246 275 267 296 275 304
(2.99) (2.76) (0.87) (0.28) (3.35) (6.62) (1.42) (0.79) (0.28) (9.69) (10.84) (10.52) (11.66) (10.84) (11.98)
1FK7042-5 76 SP075S-MF1 70 22 7 85 168 36 20 7 274 303 294 323 303 332
(2.99) (2.76) (0.87) (0.28) (3.35) (6.62) (1.42) (0.79) (0.28) (10.80) (11.94) (11.58) (12.73) (11.94) (13.08)
63
1FK7060-5 101 SP100S-MF1 90 32 9 120 217 58 30 10 286 329 309 352 317 360
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (11.27) (12.96) (12.17) (13.87) (12.49) (14.18)
1FK7063-5 101 SP100S-MF1 90 32 9 120 217 58 30 10 331 374 354 397 362 405
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (13.04) (14.74) (13.95) (15.64) (14.26) (15.96)
80
1FK7080-5 141 SP140S-MF1 130 40 11 165 283 82 30 12 327 355 350 377 358 386
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (12.88) (13.99) (13.79) (14.85) (14.11) (15.21)
1FK7083-5 141 SP140S-MF1 130 40 11 165 283 82 30 12 365 416 388 439 396 447
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (14.38) (16.39) (15.29) (17.30) (15.60) (17.61)
100
1FK7100-5 182 SP180S-MF1 160 55 14 215 310 82 30 15 383 402 406 425 414 433
(7.17) (6.30) (2.17) (0.55) (8.47) (12.21) (3.23) (1.18) (0.59) (15.09) (15.84) (16.00) (16.75) (16.31) (17.06)
1FK7101-5 182 SP180S-MF1 160 55 14 215 310 82 30 15 409 438 432 461 440 469
(7.17) (6.30) (2.17) (0.55) (8.47) (12.21) (3.23) (1.18) (0.59) (16.11) (17.26) (17.02) (18.16) (17.34) (18.48)
1FK7103-5 182 SP180S-MF1 160 55 14 215 310 82 30 15 435 464 458 487 466 495
(7.17) (6.30) (2.17) (0.55) (8.47) (12.21) (3.23) (1.18) (0.59) (17.14) (18.28) (18.05) (19.19) (18.36) (19.50)
1FK7105-5 182 SP180S-MF1 160 55 14 215 310 82 30 15 487 516 510 539 518 547
(7.17) (6.30) (2.17) (0.55) (8.47) (12.21) (3.23) (1.18) (0.59) (19.19) (20.33) (20.09) (21.24) (20.41) (21.55)
1FK7105-5 212 SP210-MF1 180 75 17 250 350 105 38 17 496 525 519 548 527 556
(8.35) (7.09) (2.96) (0.67) (9.85) (13.79) (4.14) (1.50) (0.67) (19.54) (20.69) (20.45) (21.59) (20.76) (21.91)
1FK702.-5
1FK703.-5
1FK704.-5
1FK706.-5
1FK708.-5
1FK710.-5
L6
L5
L7
G_DA65_XX_00243
D3
D4
K
L8
D2
D1
Ø
Ø
F4
1)
1FK022 and 1FK7032 motors cannot be supplied with basic absolute
encoders.
