Dimension drawings
8.3 1FK7 motors with planetary gearbox SP+
Synchronous Motors 1FK7
Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1
183

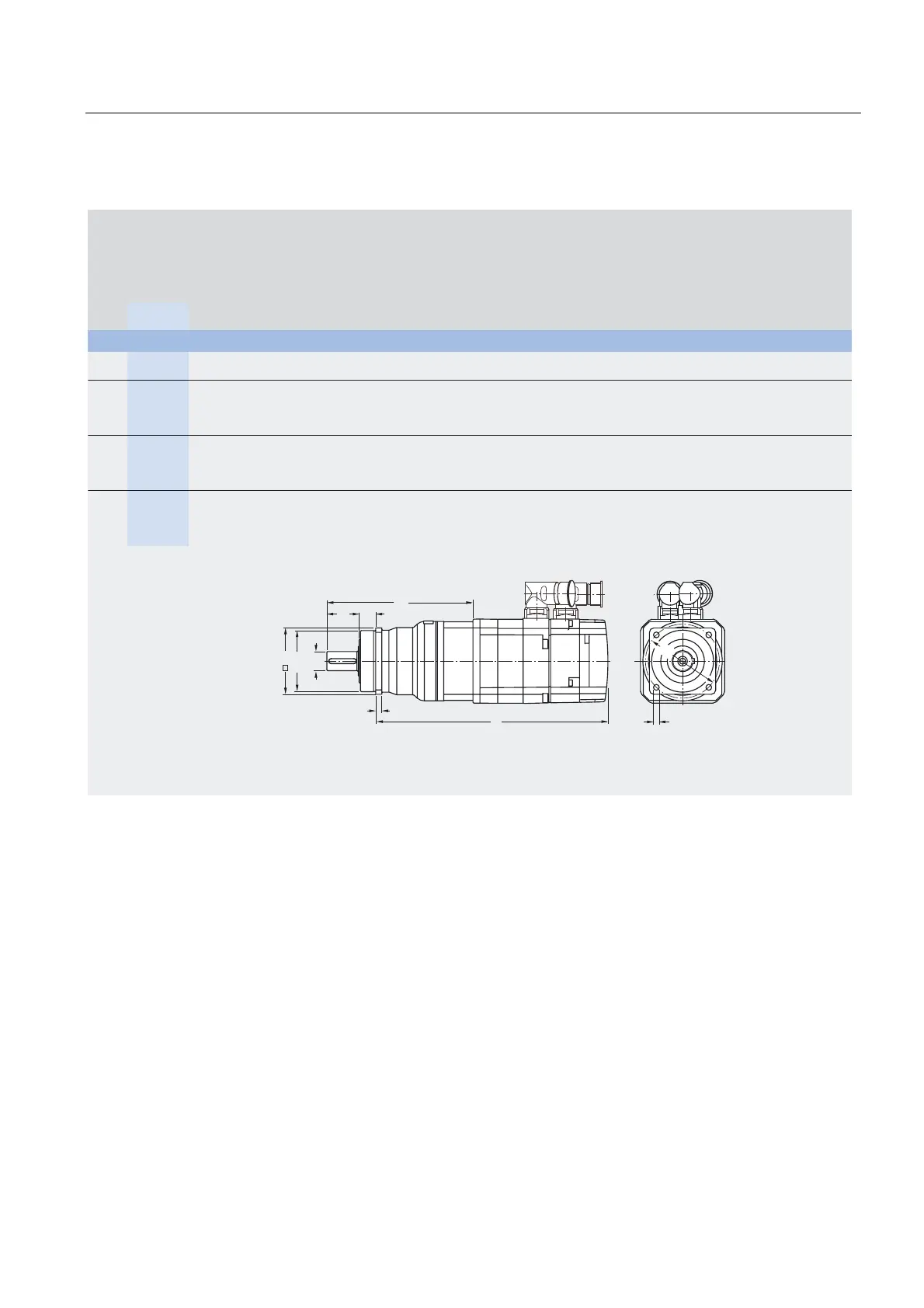

1FK7 High Dynamic motors without/with DRIVE-CLiQ with planetary gearbox SP+, single-stage
For motor Dimensions in mm (in)
Resolver Incremental enco-
der sin/cos 1 V
pp
,
Basic absolute
encoder (EnDat)
1)
Absolute
encoder
(EnDat)
Planetary
gearbox
without
brake
with
brake
without
brake
with
brake
without
brake
with
brake
Shaft
height
Type F4 Type D1 D2 D3 D4 L5 L6 L7 L8 K K K K K K
1FK7 High Dynamic with SP+ planetary gearbox, single-stage, type IM B5, natural cooling, with connector, without/with brake
36 1FK7033-7 62 SP060S-MF1 60 16 6 68 142 28 20 6 263 288 288 313 288 313
(2.44) (2.36) (0.63) (0.24) (2.68) (5.59) (1.10) (0.79) (0.24) (10.36) (11.35) (11.35) (12.33) (11.35) (12.33)
48
1FK7043-7 76 SP075S-MF1 70 22 7 85 168 36 20 7 303 332 324 353 332 361
(2.99) (2.76) (0.87) (0.28) (3.35) (6.62) (1.42) (0.79) (0.28) (11.94) (13.08) (12.77) (13.91) (13.08) (14.22)
1FK7044-7 76 SP075S-MF1 70 22 7 85 168 36 20 7 328 357 349 378 357 386
(2.99) (2.76) (0.87) (0.28) (3.35) (6.62) (1.42) (0.79) (0.28) (12.92) (14.07) (13.75) (14.89) (14.07) (15.21)
63
1FK7061-7 101 SP100S-MF1 90 32 9 120 217 58 30 10 314 357 337 380 346 389
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (12.37) (14.07) (13.28) (14.97) (13.63) (15.33)
1FK7064-7 101 SP100S-MF1 90 32 9 120 217 58 30 10 378 421 401 444 410 453
(3.98) (3.55) (1.26) (0.35) (4.73) (8.55) (2.29) (1.18) (0.39) (14.89) (16.59) (15.80) (17.49) (16.15) (17.85)
80
1FK7085-7 141 SP140S-MF1 130 40 11 165 283 82 30 12 432 474 454 497 463 505
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (17.02) (18.68) (17.89) (19.58) (18.24) (19.90)
1FK7086-7 141 SP140S-MF1 130 40 11 165 283 82 30 12 432 474 454 497 463 505
(5.56) (5.12) (1.58) (0.43) (6.50) (11.15) (3.23) (1.18) (0.47) (17.02) (18.68) (17.89) (19.58) (18.24) (19.90)
1FK703.-7
1FK704.-7
1FK706.-7
1FK708.-7
L6
L5
L7
G_DA65_XX_00243
D3
D4
K
L8
D2
D1
Ø
Ø
F4
1)
The 1FK7033 motor cannot be supplied with a basic absolute
encoder.
