Dimension drawings
8.3 1FK7 motors with planetary gearbox SP+
Synchronous Motors 1FK7
184 Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1

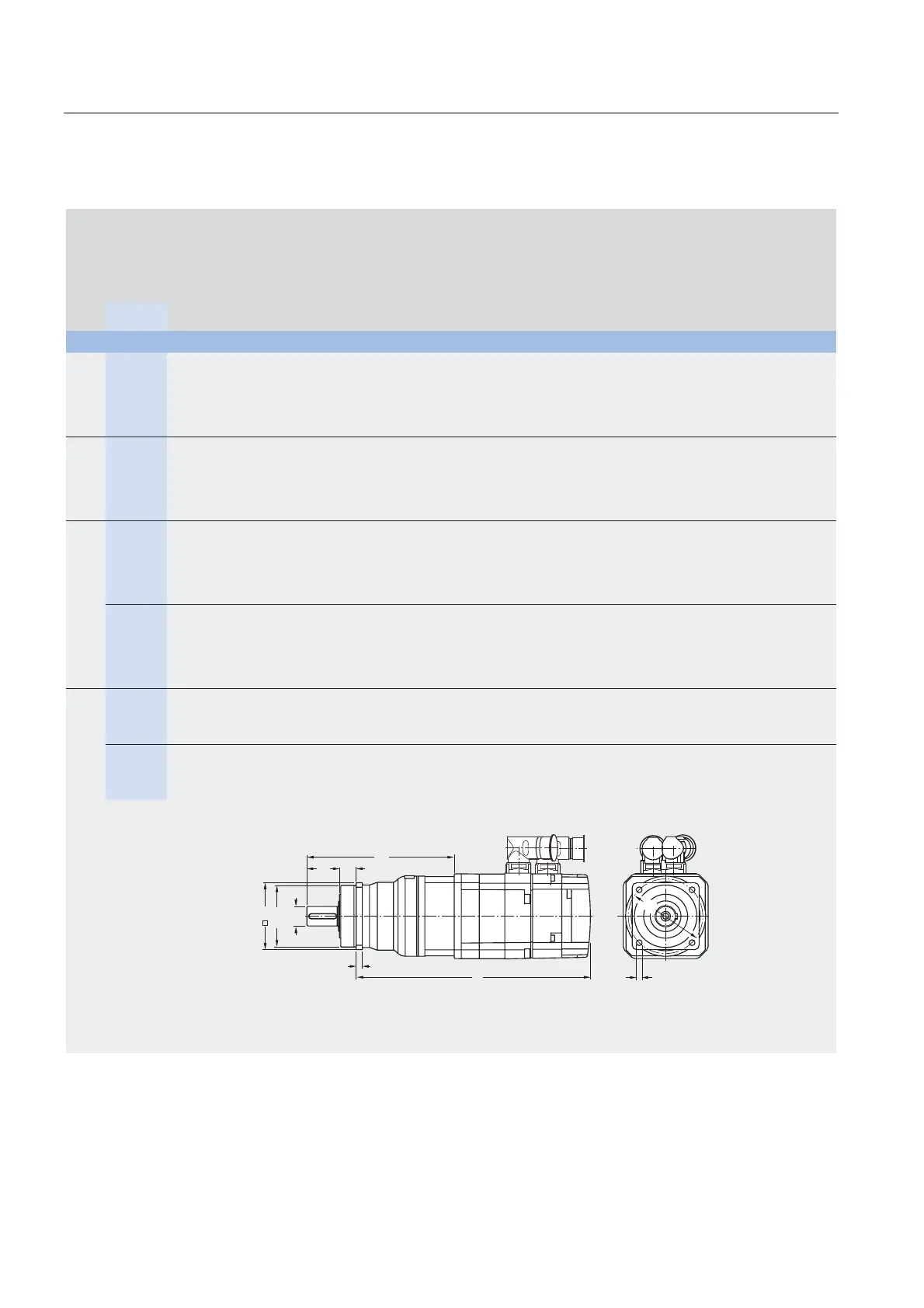

1FK7 Compact motors without/with DRIVE-CLiQ, with planetary gearbox SP+, two-stage
For motor Dimensions in mm (in)
Resolver Incremental enco-
der sin/cos 1 V
pp
,
Basic absolute
encoder (EnDat)
1)
Absolute
encoder
(EnDat)
Planetary
gearbox
without
brake
with
brake
without
brake
with
brake
without
brake
with
brake
Shaft
height
Type F4 Type D1 D2 D3 D4 L5 L6 L7 L8 K K K K K K
1FK7 Compact with SP+ planetary gearbox, two-stage, type IM B5, natural cooling, with connector, without/with brake
28 1FK7022-5 62 SP060S-MF2 60 16 5.5 68 156 28 20 6 261 283 286 308 286 308
(2.44) (2.36) (0.63) (0.22) (2.68) (6.15) (1.10) (0.79) (0.24) (10.28) (11.15) (11.27) (12.14) (11.27) (12.14)
1FK7022-5 76 SP075S-MF2 70 22 6.6 85 175 36 20 7 272 294 297 319 297 319
(2.99) (2.76) (0.87) (0.26) (3.35) (6.90) (1.42) (0.79) (0.28) (10.72) (11.58) (11.70) (12.57) (11.70) (12.57)
1FK7022-5 101 SP100S-MF2 90 32 9 120 230 58 30 10 295 317 320 342 320 342
(3.98) (3.55) (1.26) (0.35) (4.73) (9.06) (2.29) (1.18) (0.39) (11.62) (12.49) (12.61) (13.47) (12.61) (13.47)
36
1FK7032-5 62 SP060S-MF2 60 16 5.5 68 164 28 20 6 266 291 291 316 291 316
(2.44) (2.36) (0.63) (0.22) (2.68) (6.46) (1.10) (0.79) (0.24) (10.48) (11.47) (11.47) (12.45) (11.47) (12.45)
1FK7032-5 76 SP075S-MF2 70 22 6.6 85 179 36 20 7 273 298 298 323 298 323
(2.99) (2.76) (0.87) (0.26) (3.35) (7.05) (1.42) (0.79) (0.28) (10.76) (11.74) (11.74) (12.73) (11.74) (12.73)
1FK7032-5 101 SP100S-MF2 90 32 9 120 230 58 30 10 292 317 317 342 317 342
(3.98) (3.55) (1.26) (0.35) (4.73) (9.06) (2.29) (1.18) (0.39) (11.50) (12.49) (12.49) (13.47) (12.49) (13.47)
48
1FK7040-5 76 SP075S-MF2 70 22 6.6 85 192 36 20 7 270 299 291 320 299 328
(2.99) (2.76) (0.87) (0.26) (3.35) (7.56) (1.42) (0.79) (0.28) (10.64) (11.78) (11.47) (12.61) (11.78) (12.92)
1FK7040-5 101 SP100S-MF2 90 32 9 120 234 58 30 10 280 309 301 330 309 338
(3.98) (3.55) (1.26) (0.35) (4.73) (9.22) (2.29) (1.18) (0.39) (11.03) (12.17) (11.86) (13.00) (12.17) (13.32)
1FK7040-5 141 SP140S-MF2 130 40 11 165 298 82 30 12 320 349 341 370 349 378
(5.56) (5.12) (1.58) (0.43) (6.50) (11.74) (3.23) (1.18) (0.47) (12.61) (13.75) (13.44) (14.58) (13.75) (14.89)
1FK7042-5 76 SP075S-MF2 70 22 6.6 85 192 36 20 7 298 327 298 347 327 356
(2.99) (2.76) (0.87) (0.26) (3.35) (7.56) (1.42) (0.79) (0.28) (11.74) (12.88) (11.74) (13.67) (12.88) (14.03)
1FK7042-5 101 SP100S-MF2 90 32 9 120 234 58 30 10 308 337 308 357 337 366
(3.98) (3.55) (1.26) (0.35) (4.73) (9.22) (2.29) (1.18) (0.39) (12.14) (13.28) (12.14) (14.07) (13.28) (14.42)
1FK7042-5 141 SP140S-MF2 130 40 11 165 298 82 30 12 348 377 368 397 377 406
(5.56) (5.12) (1.58) (0.43) (6.50) (11.74) (3.23) (1.18) (0.47) (13.71) (14.85) (14.50) (15.64) (14.85) (16.00)
63
1FK7060-5 101 SP100S-MF2 90 32 9 120 252 58 30 10 321 364 344 387 352 395
(3.98) (3.55) (1.26) (0.35) (4.73) (9.93) (2.29) (1.18) (0.39) (12.65) (14.34) (13.55) (15.25) (13.87) (15.56)
1FK7060-5 141 SP140S-MF2 130 40 11 165 305 82 30 12 350 393 373 416 381 424
(5.56) (5.12) (1.58) (0.43) (6.50) (12.02) (3.23) (1.18) (0.47) (13.79) (15.48) (14.70) (16.39) (15.01) (16.71)
1FK7063-5 141 SP140S-MF2 130 40 11 165 305 82 30 12 395 438 418 461 426 469
(5.56) (5.12) (1.58) (0.43) (6.50) (12.02) (3.23) (1.18) (0.47) (15.56) (17.26) (16.47) (18.16) (16.78) (18.48)
1FK7063-5 182 SP180S-MF2 160 55 13.5 215 346 82 30 15 436 479 459 502 467 510
(7.17) (6.30) (2.17) (0.53) (8.47) (13.63) (3.23) (1.18) (0.59) (17.18) (18.87) (18.08) (19.78) (18.40) (20.09)
1FK702.-5
1FK703.-5
1FK704.-5
1FK706.-5
L6
L5
L7
G_DA65_XX_00243
D3
D4
K
L8
D2
D1
Ø
Ø
F4
1)
1FK7022 and 1FK7032 motors cannot be supplied with a basic
absolute encoder.
