9.2 Motors with planetary gears
Synchronous Motors 1FK7
Configuration Manual, (PFK7S), Edition 12.2006, 6SN1197-0AD16-0BP1
207
9.2.3.1 Mounting options
%$QEDX
%$QEDX
&

&
%0RXQWLQJRSWLRQV
%0RXQWLQJRSWLRQV

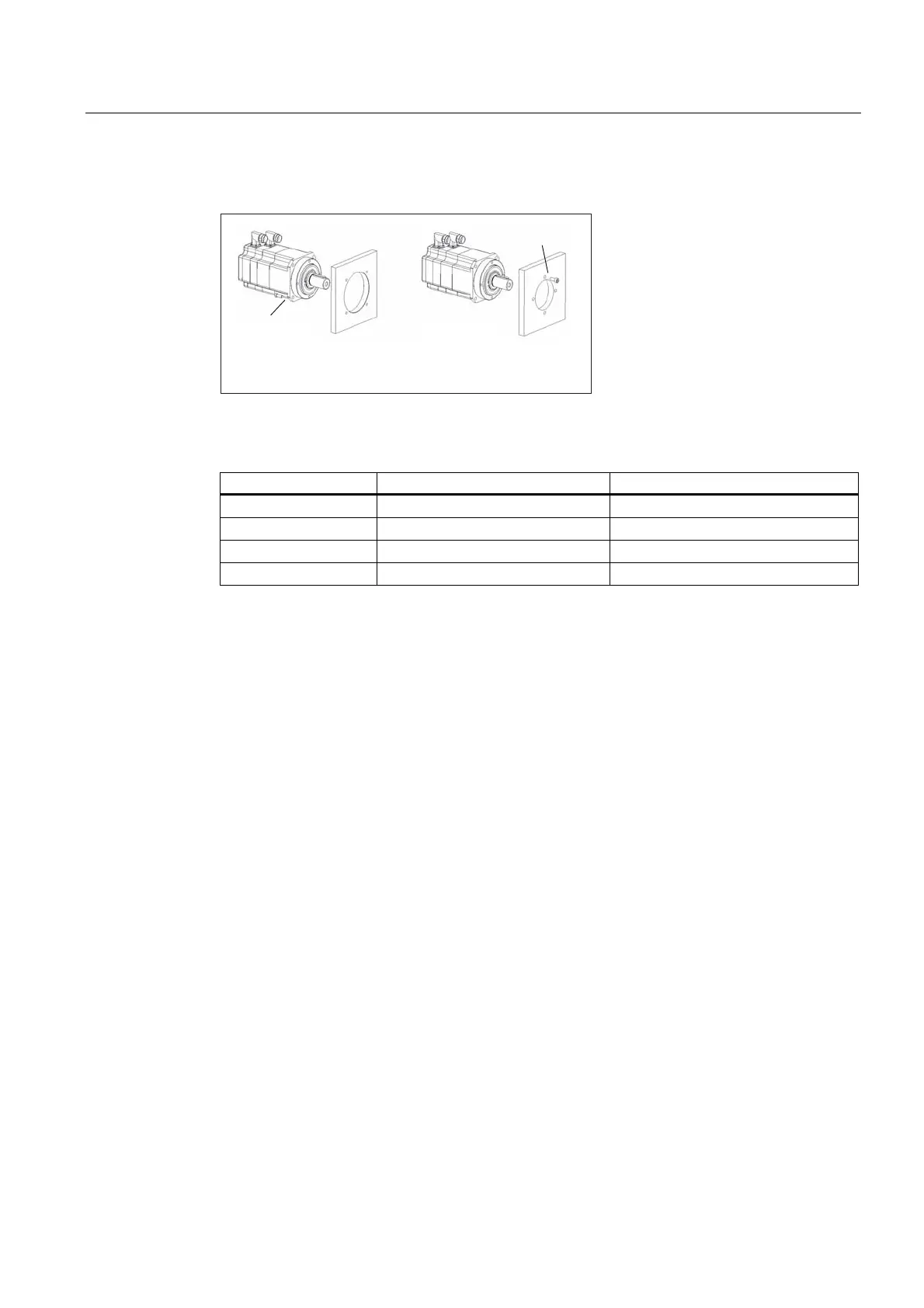

Figure 9-4 Mounting options
Table 9-1 Screw size with metric threads
Motor Screw size for B5 installation C
1
Screw size for B14 installation C
2
1FK7 DYA 070 4 x M6 4 x M5
1FK7 DYA 090 4 x M6 4 x M6
1FK7 DYA 120 4 x M8 4 x M8
1FK7 DYA 155 4 x M10 4 x M10
