4 Configuration and Project Engineering
4.3 Configuring the SIMATIC HMI KTP600 operator panel
SINAMICS V20 at S7-1200/1500 via USS
Entry ID: 109480894, V1.0, 09/2018
26
 Siemens AG 2018 All rights reserved
No.
Action
3.

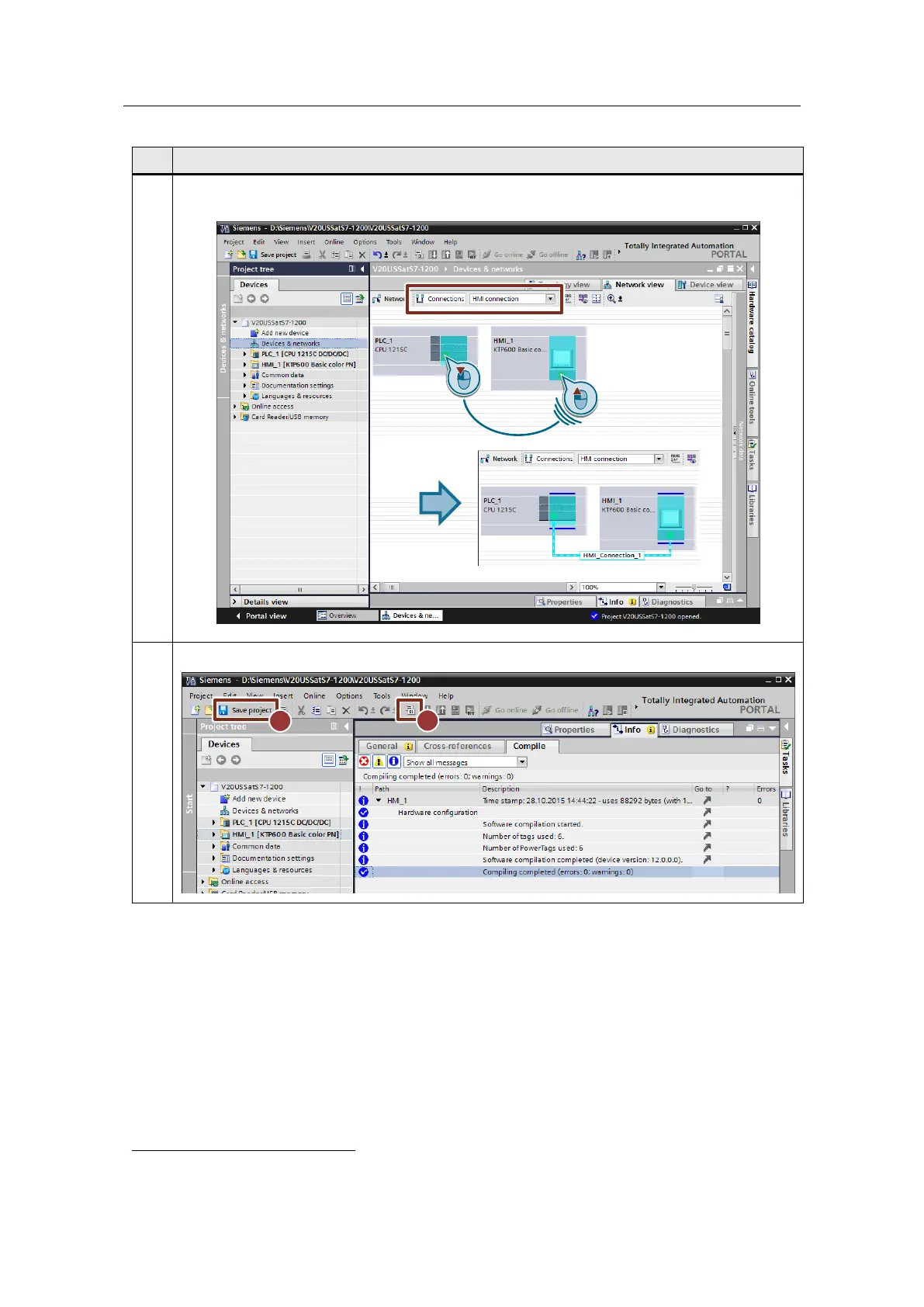

Configure a new HMI connection in the Network view. To do this, use drag and drop to connect the
Ethernet interfaces of PLC_1 and HMI_1. As a consequence, HMI_Connection_1
8
will be created.
4.
Compile the HMI_1 device in order to detect possible errors and save its configuration.
8
Name can be changed.
