The "Read data record" and "Write data record" services are available for acyclic
communication.
The following options are available for reading and writing parameters:
● S7 protocol
This protocol uses the STARTER commissioning tool in online operation via PROFIBUS/
PROFINET.
● PROFIdrive parameter channel with the following data sets:
– PROFIBUS: Data block 47 (0x002F)
The DPV1 services are available for master class 1 and class 2.
– PROFINET: Data block 47 and 0xB02F al global access, data set 0xB02E as local
access
Note
Refer to the following documentation for a detailed description of acyclic communication:
Reference: PROFIdrive Profile V4.1, May 2006, Order No.: 3.172
Addressing:
● PROFIBUS DP
The addressing is carried out via the logical address or the diagnostics address.
● PROFINET IO
The addressing is only undertaken using a diagnostics address which is assigned
to a module as of slot 1. Parameters cannot be accessed via socket 0.
$F\FOLFFRPPXQLFDWLRQ&RQWUROOHU
6XSHUYLVRU
'HYLFH
3DUDPHWHU
UHTXHVW
3DUDPHWHU
UHVSRQVH
3DUDPHWHUUHTXHVW
3DUDPHWHU
SURFHVVLQJ
3DUDPHWHUUHVSRQVH
:ULWHUHT
ZLWKGDWDSDUDPHWHUUHTXHVW
:ULWHUHV
ZLWKRXWGDWD
5HDGUHT
ZLW
KRX
WGDWD
5HDGUHV
ZLWKRXWGDWD
5HDGUHT
ZLW
KRXWGDWD
5HDGU
HV
ZLWKGDWDSDUDPHWH
UU
HVS
RQVH

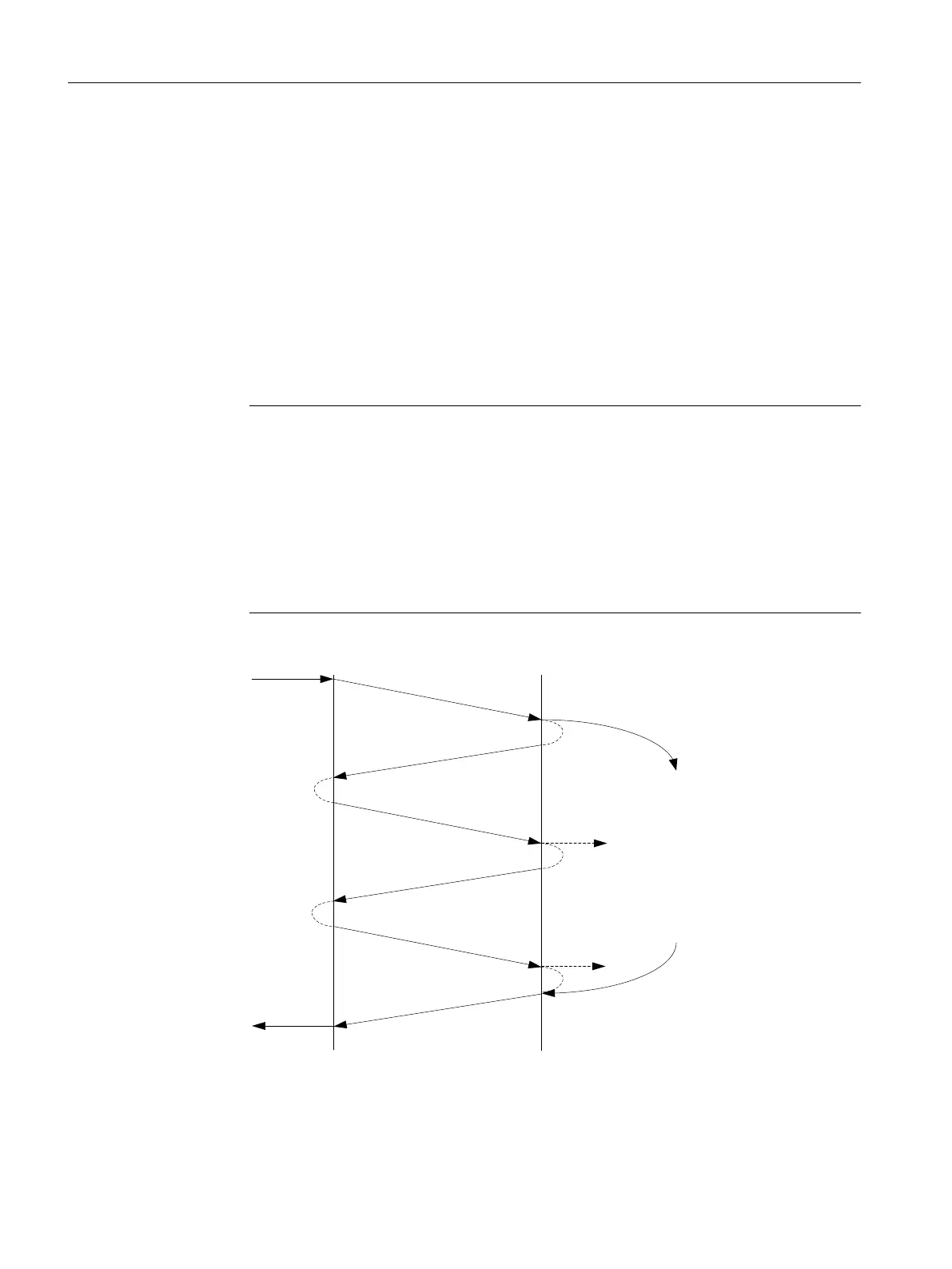

Figure A-3 Reading and writing data
