Start-Up
4.3 Starting up the PLC
4-57
SINUMERIK 802C
6FC5 597–3AA20–0BP2 (01.02)
%

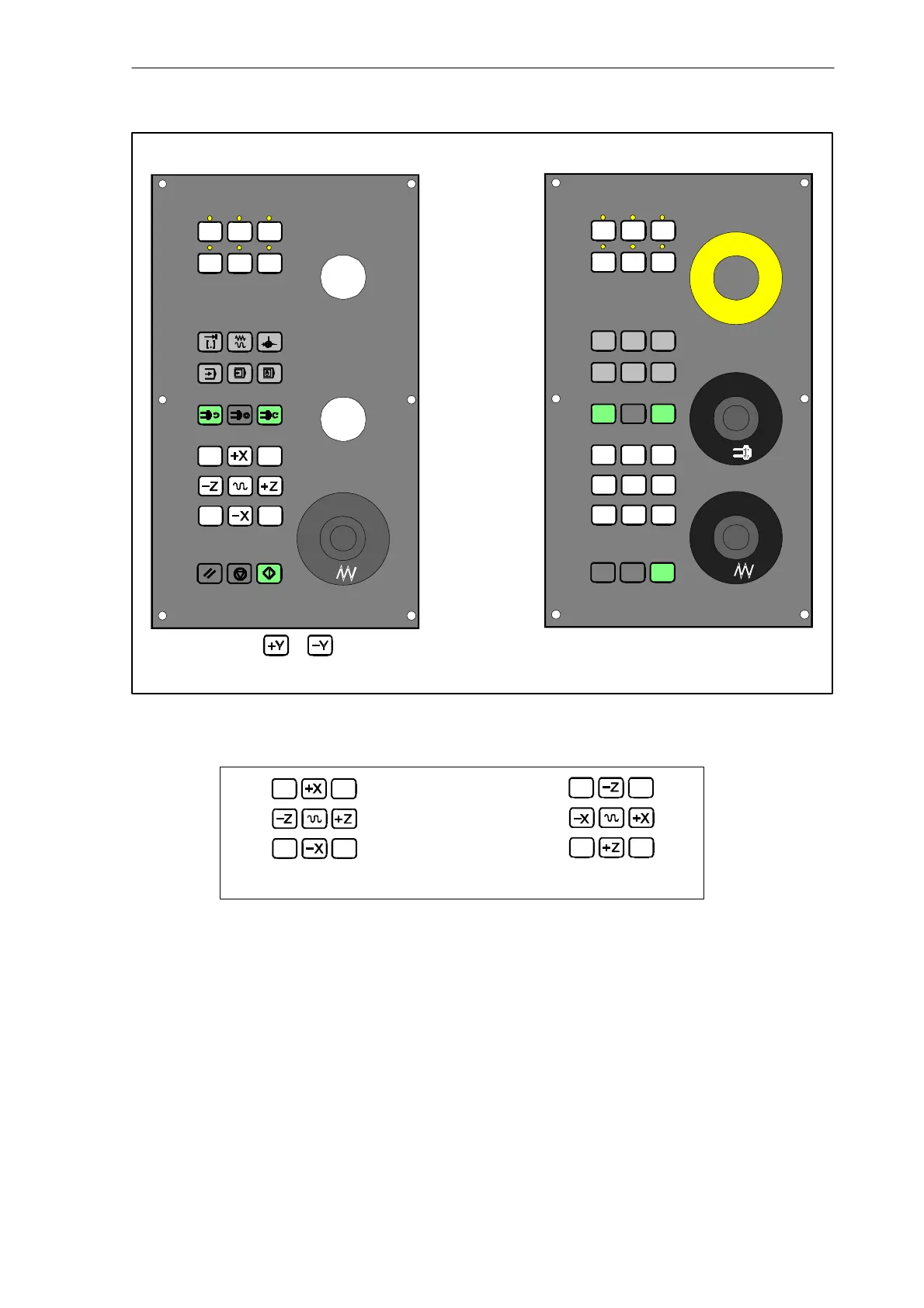

Layout when delivered (from product release 2)
Key number for configurable key assignment
%
#1
#2
#3
#4 #5 #6
#7 #8
#9
#10 #11 #12
#13 #14 #15
#16 #17 #18
#19 #20 #21
#22 #23
#24
#25 #26 #27
%
Included separately:
Available as accessories: Spindle override switch
and Emergency Stop button
#1 ... 27 –> keys 1 ... 27 (see user interface)
Fig. 4-3 Layout of the machine control panel
–Y
+Y
horizonal turning machine vertical milling machine
Fig. 4-4 Examples for the assignment of the axis keyboard
4.3.5 PLC programming
The PLC user program is created using the PLC 802 Programming Tool.
The Documentation “S7–200 Automation System, System Manual“ describes how this tool is
operated for S7–200. The PLC 802 Programming Tool is to be understood as a subset of this
Documentation.
