Detailed description
2.12 Block descriptions
Power Line Basic PLC Program (P3)
2-200 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0

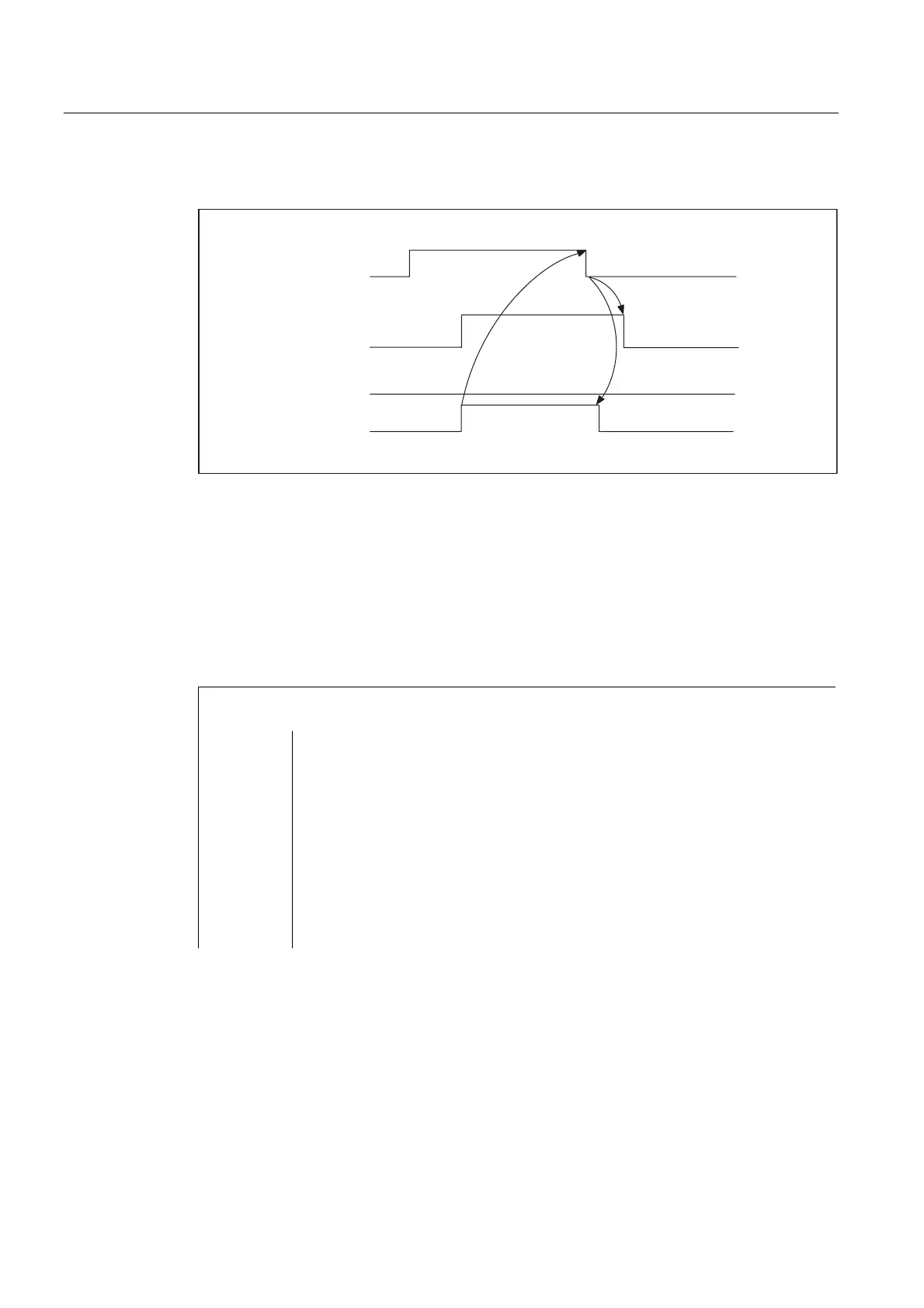

Timing diagram (fault scenario)
6WDUW(UU
(UURU
6WDUW
,Q3RV
$FWLY
(1) Activation of function by means of a positive edge
(2) Negative acknowledgment: Error has occurred
(3) Reset function activation after receipt of acknowledgment
(4) Signal change using FC
Call example
CALL FC 15 (
Start := M 100.0,
AxisNo := 5,
IC := #incr, //e.g., local variable
Inch := FALSE,
HWheelOv := FALSE,
Pos := MD160,
FRate := MD164,
InPos := Q 36.0,
Active := Q 36.1,
StartErr := Q 36.2,
Error := Q 36.3);
