Siemens SINUMERIK 804D sl Function Manual

Detailed Description
2.5 Block search
Mode Group, Channel, Program Operation, Reset Response (K1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-33
Example: Sequence with cascaded block search
• RESET
• Block search up to search target 1
• Block search up to search target 2 → "Cascaded block search"
• NC Start for output of the action blocks → Alarm 10208
• NC Start → Continue program execution
Block search
active (DB21, ...
DBX33.4)
Action block
active (DB21, ...
DBX32.3)
Block search
starting
Search target 1
found
Block search
starting
Search target 2
found
NC Start
action blocks
being output
Last
action block
Channel status
Reset (DB21, ...
DBX35.7)
Last action block
active (DB21, ...
DBX32.6)
Channel status
interrupted
(DB21, ... DBX35.6)

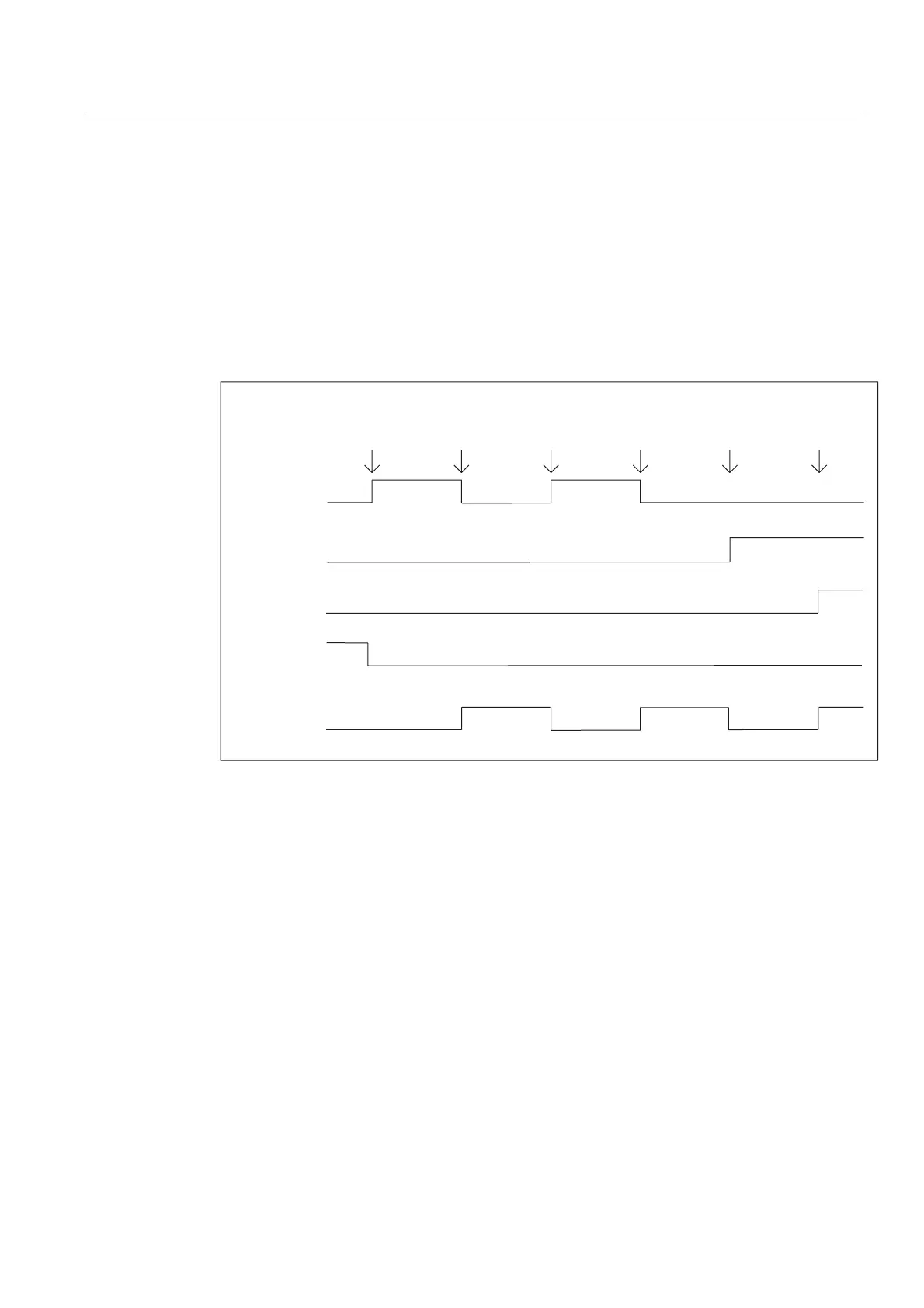

Fig. 2-3 Chronological order of interface signals
2.5.4 Examples of block search with calculation
Selection
From the following examples, select the type of block search that corresponds to your task.
