Detailed Description
2.12 Block descriptions
PLC Basic Program Solution Line (P3 sl)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-167
Signal Type Type Value range Remarks
OldToolMag I Int -1, 0.. Current magazine number of tool to be changed
-1: Tool remains at its location OldToolLoc = any
value. Only with TaskIdent = 2 permissible.
OldToolLoc I Int Max. location
number
Current location number of tool to be changed
Status I Int 1..6, 103..105 Status information about transfer operation
Ready Q Bool 1= transfer completed
Error Q Int 0..65535 Error checkback
0: No error has occurred
1: Unknown "TaskIdent"
2: Unknown "TaskIdentNo"
3: Illegal job ("interface active" signal for selected
revolver = "FALSE")
Other values:
The number corresponds to the error message of
the tool management function in the NCK caused
by this transfer.

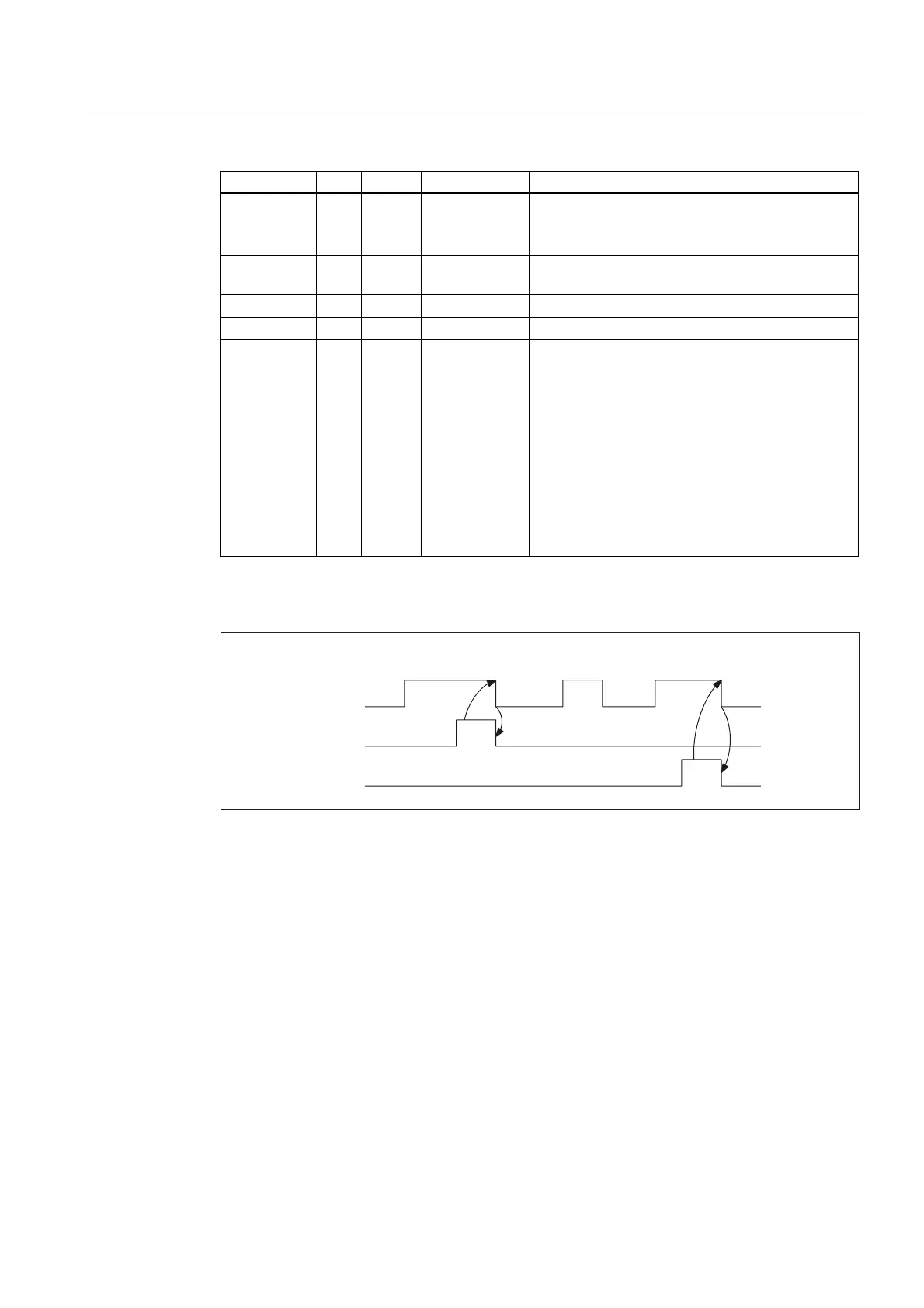

Pulse diagram
5HDG\
6WDUW
(UURU !
Fig. 2-30 Pulse diagram
(1) Activation of function
(2) Positive acknowledgment: Tool management has been transferred
(3) Reset function activation after receipt of acknowledgment
(4) Signal change by means of FB
(5) This signal chart is not permissible. The job usually has to be terminated since the new tool
positions need to be forwarded to the tool management in the NCK.
(6) Negative acknowledgment: Error has occurred, error code in output parameter error
