2.3 Configurable gear adaptation
Spindles (S1)
2-32 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
Selection between two gear steps
Gear step selection between two gear steps with specification of a maximum spindle speed
is shown in the example below:

PD[
PD[
J
PD[
Q
PLQ
J
PD[
J
PLQ
J
Q
UHYPLQ

PD[
J

PLQ
J

PD[
Q


PD[
Q

PD[
J
PLQ
J
6SHFLILDEOHXVLQJ0'*($5B67(3B0$;B9(/2
0RWRUVSHHG
6SLQGOHVSHHGUHYPLQ
0D[PRWRUVSHHG
*HDU
VWHS
*HDU
VWHS
,QWKHFDVHRIDXWRPDWLFJHDUVWHSVHOHFWLRQ
WKLVVSHHGUDQJHLVQRWXWLOL]HGWRIXOODGYDQ
WDJHLQJHDUVWHS
0D[LPXPVSLQGOHVSHHGIRUJHDUVWHS
0LQLPXPVSLQGOHVSHHGIRUJHDUVWHS
DXWRPDWLFJHDUVWHSVHOHFWLRQ
0D[LPXPVSLQGOHVSHHGIRUJHDUVWHS
DXWRPDWLFJHDUVWHSVHOHFWLRQ
0D[LPXPVSLQGOHVSHHGIRUJHDUVWHS
0LQLPXPVSLQGOHVSHHGIRUJHDUVWHS
DXWRPDWLFJHDUVWHSVHOHFWLRQ
0D[LPXPVSLQGOHVSHHGIRUJHDUVWHS
DXWRPDWLFJHDUVWHSVHOHFWLRQ

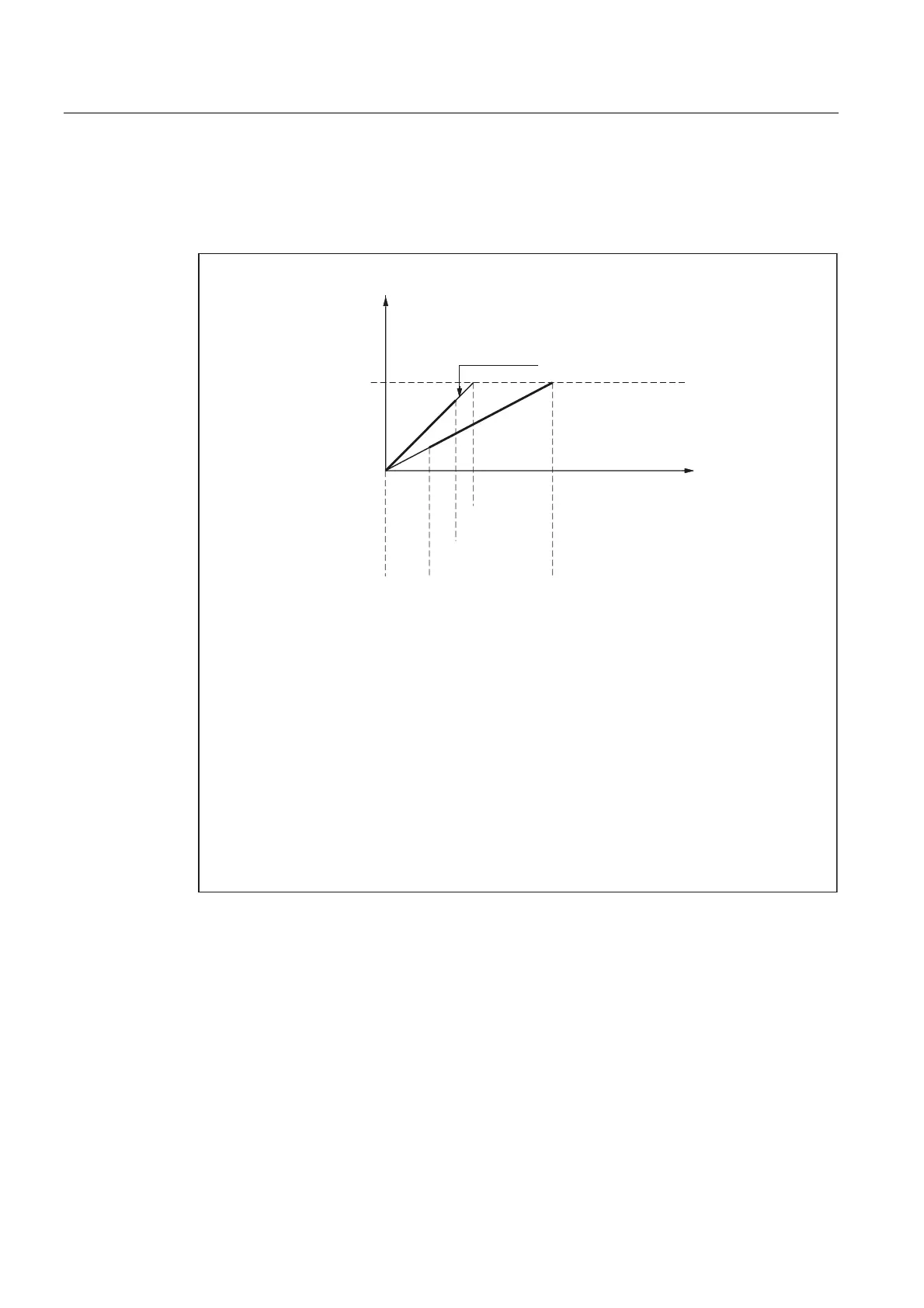

Fig. 2-6 Gear step change with selection between two gear steps
Parameters on gear step change
During the gear step change interpolation parameters and, as standard, servo parameter
sets of the position controller are activated depending on machine data:
MD35590 $MA_PARAMSET_CHANGE_ENABLE.
