Detailed Description
2.1 Axes
Axis Types, Coordinate Systems, Frames (K2)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-3
;
&
<
=
%

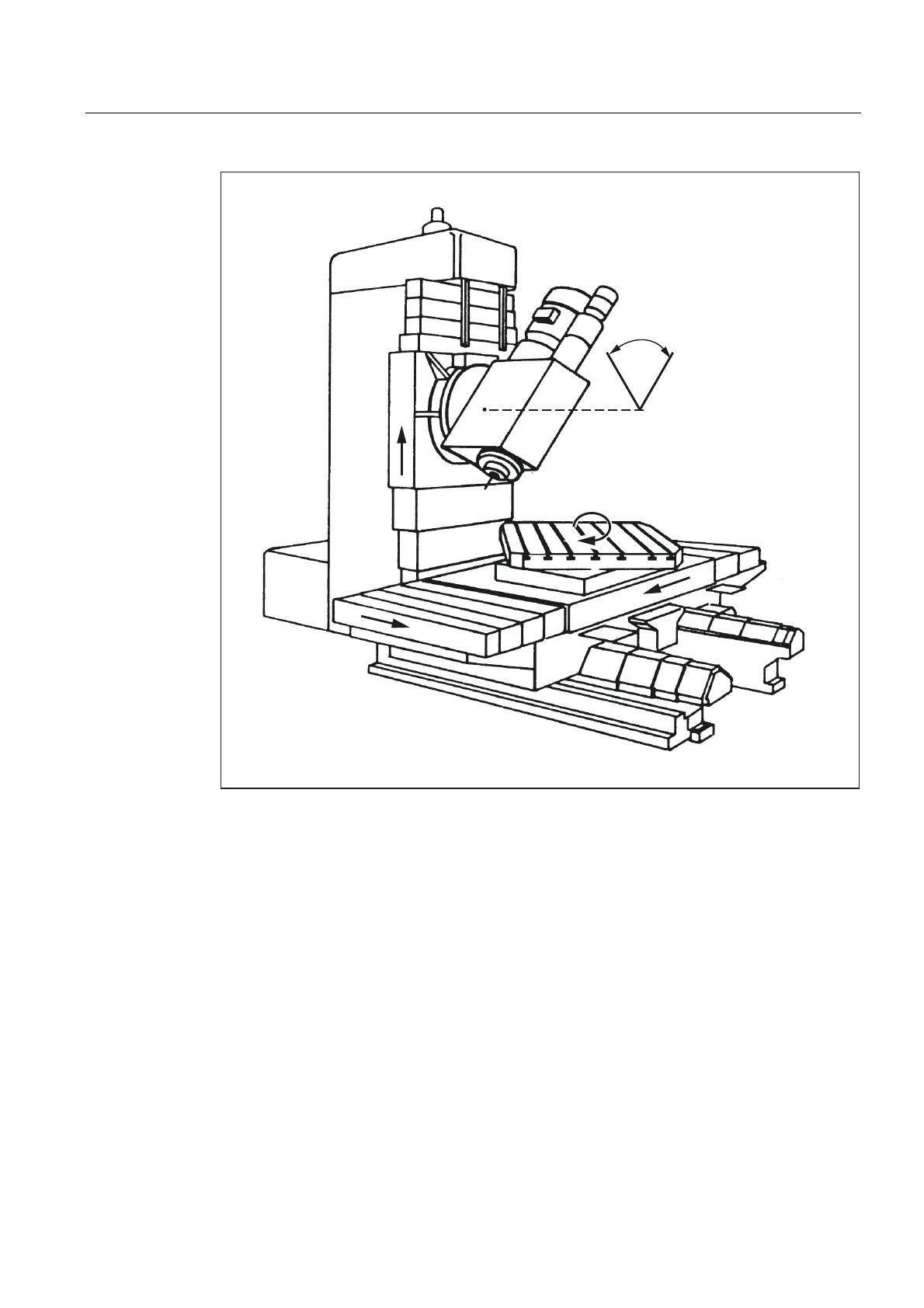

Fig. 2-3 Machine axes X, Y, Z, B, S on a Cartesian machine
Application
The following can be machine axes:
Geometry axes X, Y, Z
Orientation axes A, B, C
Loader axes
Tool turrets
Axes for tool magazine
Axes for automatic tool changer
Spindle sleeves
Axes for pallet changers
Etc.
