2.3 Coordinate systems
Axis Types, Coordinate Systems, Frames (K2)
2-32 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
*
\
[
]
]
]
\
\
[
[
*
[
\
]
[
\
]
]
\
[
6=6
:&6
%=6
6=6
:&6
0&6
%&6
%DVHIUDPH
3URJUDPPDEOH
IUDPH
:RUNSLHFH
:RUNSLHFH
3DOOHW
3URJUDPPDEOH
IUDPH

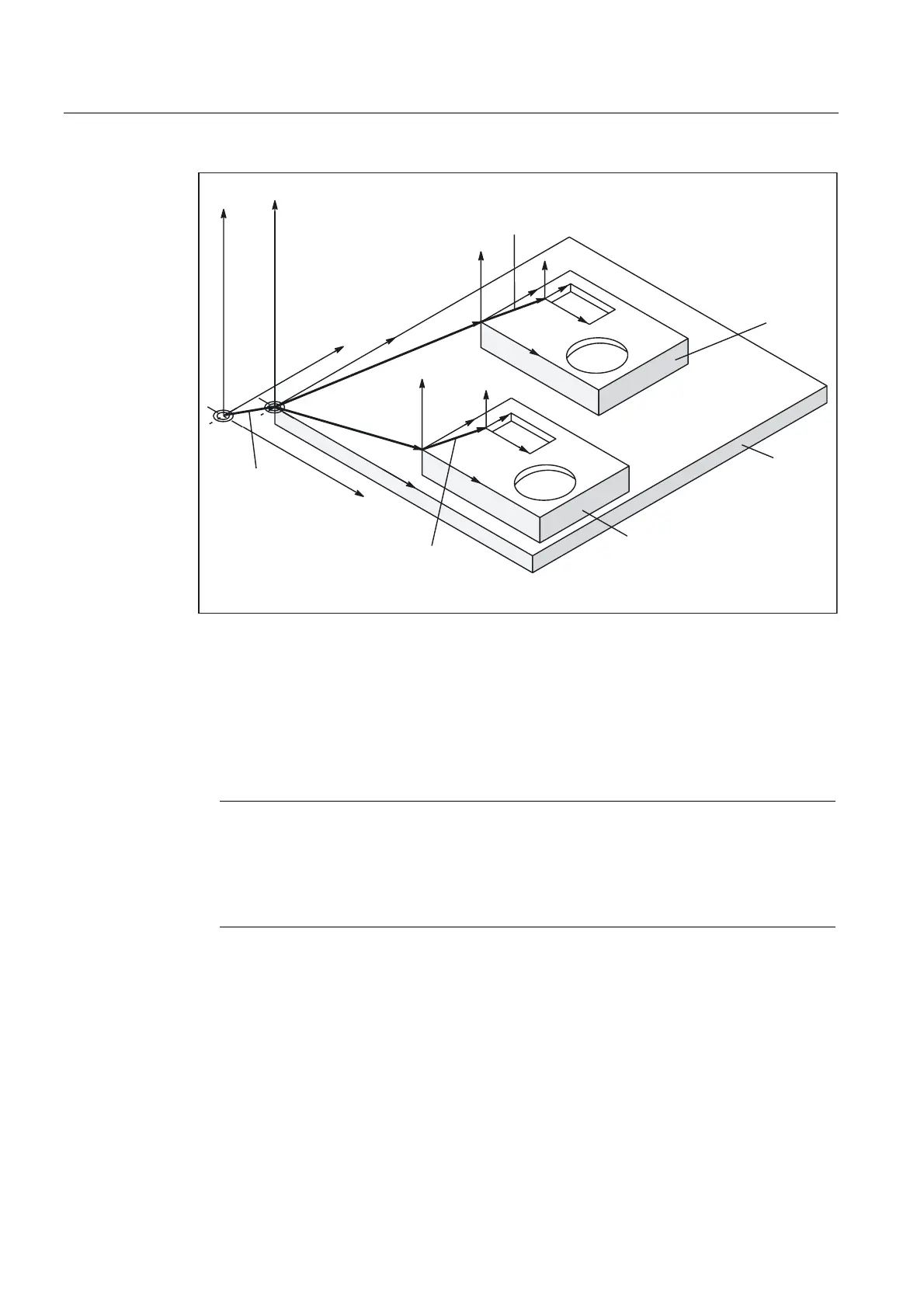

Fig. 2-19 Example of the use of the basic offset
The following settings apply:
• The user can change the basic offset from the part program by means of an operator
action and from the PLC.
• If the basic offset is to take effect immediately, an ASUB can be started via the PLC using
FC9 in order to execute the appropriate G code.
Note
Machine manufacturer
Recommendation:
Use the 3rd basic offset onwards for your own applications.
The 1st and 2nd basic offsets are reserved for PRESET and the "Zero offset external".
