Siemens SINUMERIK 804D sl Function Manual

Detailed Description
2.4 Frames
Axis Types, Coordinate Systems, Frames (K2)
2-42 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
%
$
\
[
&
]
5LJKWKDQGUHFWDQJXODU
FRRUGLQDWHV\VWHP

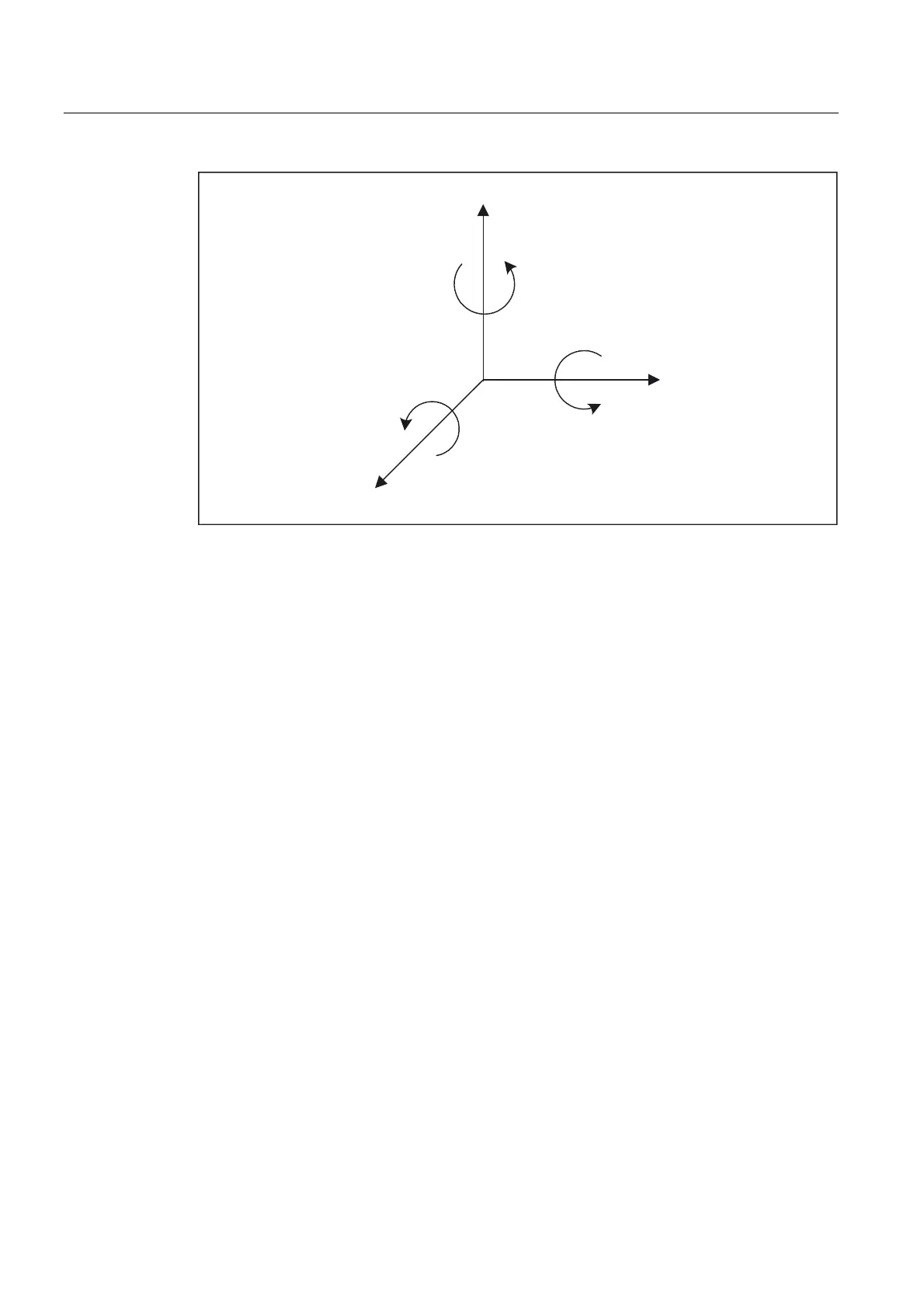

If the rotary motion is in a clockwise direction when looking in the positive direction of the
coordinate axis, the direction of rotation is positive. A, B and C identify rotations whose axes
are parallel to X, Y and Z.
The machine data below is used to configure the rotation in the frame:
MD10600 $MN_FRAME_ANGLE_INPUT_MODE
1: RPY notation
2: Euler angle
