Examples

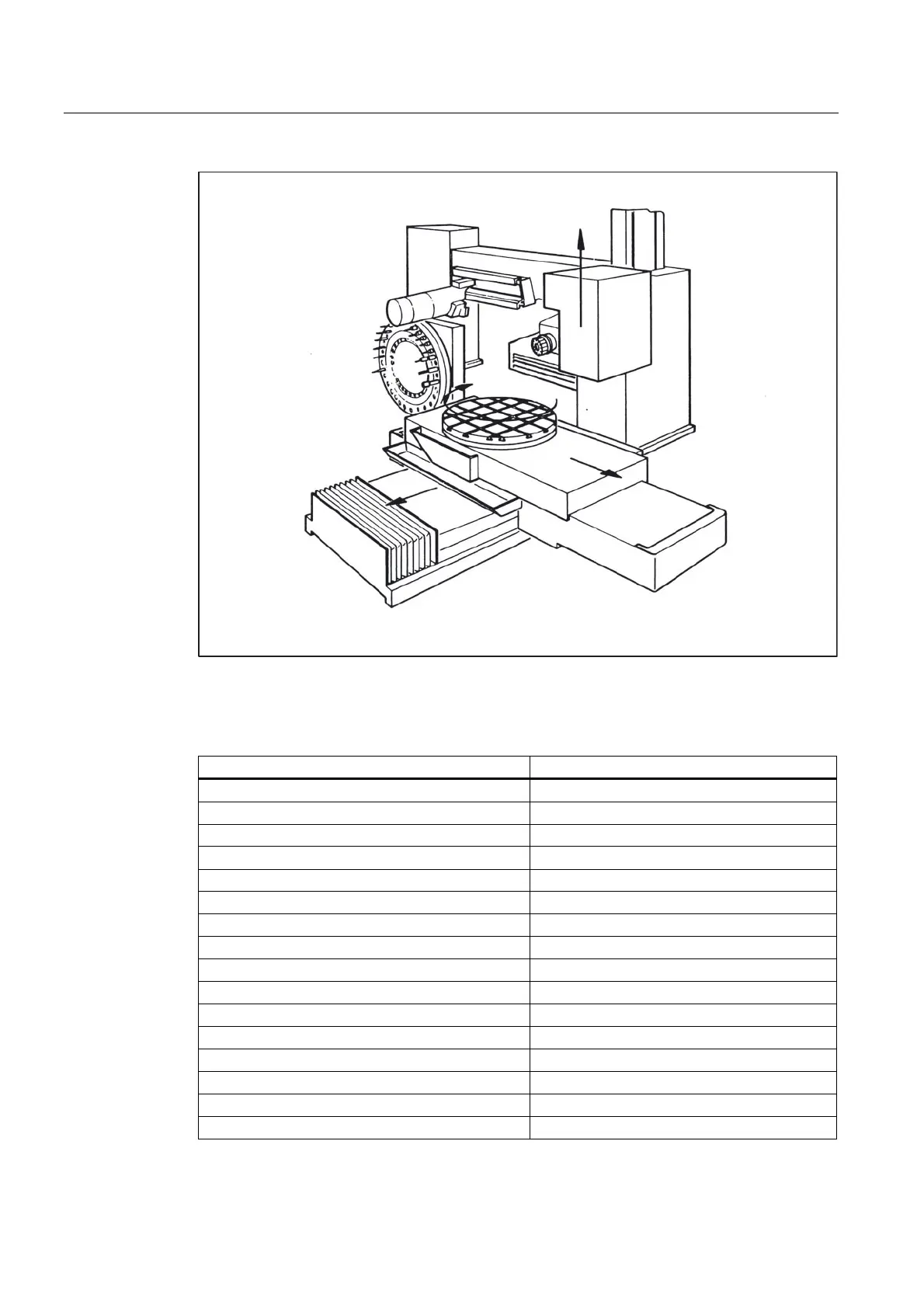

4.1 Axes
Axis Types, Coordinate Systems, Frames (K2)
4-2 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
:=0
%
6
<
;
=
Parameterization of the machine data
Machine data Value
MD10000 AXCONF_MACHAX_NAME_TAB[0] = X1
MD10000 AXCONF_MACHAX_NAME_TAB[1] = Y1
MD10000 AXCONF_MACHAX_NAME_TAB[2] = Z1
MD10000 AXCONF_MACHAX_NAME_TAB[3] = B1
MD10000 AXCONF_MACHAX_NAME_TAB[4] = W1
MD10000 AXCONF_MACHAX_NAME_TAB[5] = C1
MD20050 AXCONF_GEOAX_ASSIGN_TAB[0] = 1
MD20050 AXCONF_GEOAX_ASSIGN_TAB[1] = 2
MD20050 AXCONF_GEOAX_ASSIGN_TAB[2] = 3
MD20060 AXCONF_GEOAX_NAME_TAB[0] =X
MD20060 AXCONF_GEOAX_NAME_TAB[1] =Y
MD20060 AXCONF_GEOAX_NAME_TAB[2] =Z
MD20070 AXCONF_MACHAX_USED[0] = 1
