2.7 Structure and functions of the basic program
Power Line Basic PLC Program (P3)
2-68 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
Status information
Available in Bit No. Description
MCP1StatSendMCP2Stat
Send
BHGStatSend
4 Syntax error in GD package:
Error in parameter set (FB1)
MCP1StatSendMCP2Stat
SendB
HGStatSend
27 Transmitter:
Timeout
MCP1StatRec
MCP2StatRec
BHGStatRec
10 Receiver:
Timeout
An error entry is also made in the PLC diagnostic buffer for timeouts (bits 10 and 27),
resulting in the following error messages on the MMC:
• 400260: MCP 1 failure
Or
• 400261: MCP 2 failure
• 400262: HHU failure
An MCP or HHU failure is detected immediately after a cold restart even if no data have yet
been exchanged between the MCP/HHU and PLC.
The monitoring function is activated as soon as all components have signaled "Ready" after
powerup.
MPI connection and 810D (SW 4 and lower)
Communications for MCP and HHU by PLC operating system and parameterization via
SDB210.
03,
0&3
++8
1&.
3/&&38
0&3
6'%
IRU0&3
DQG++8

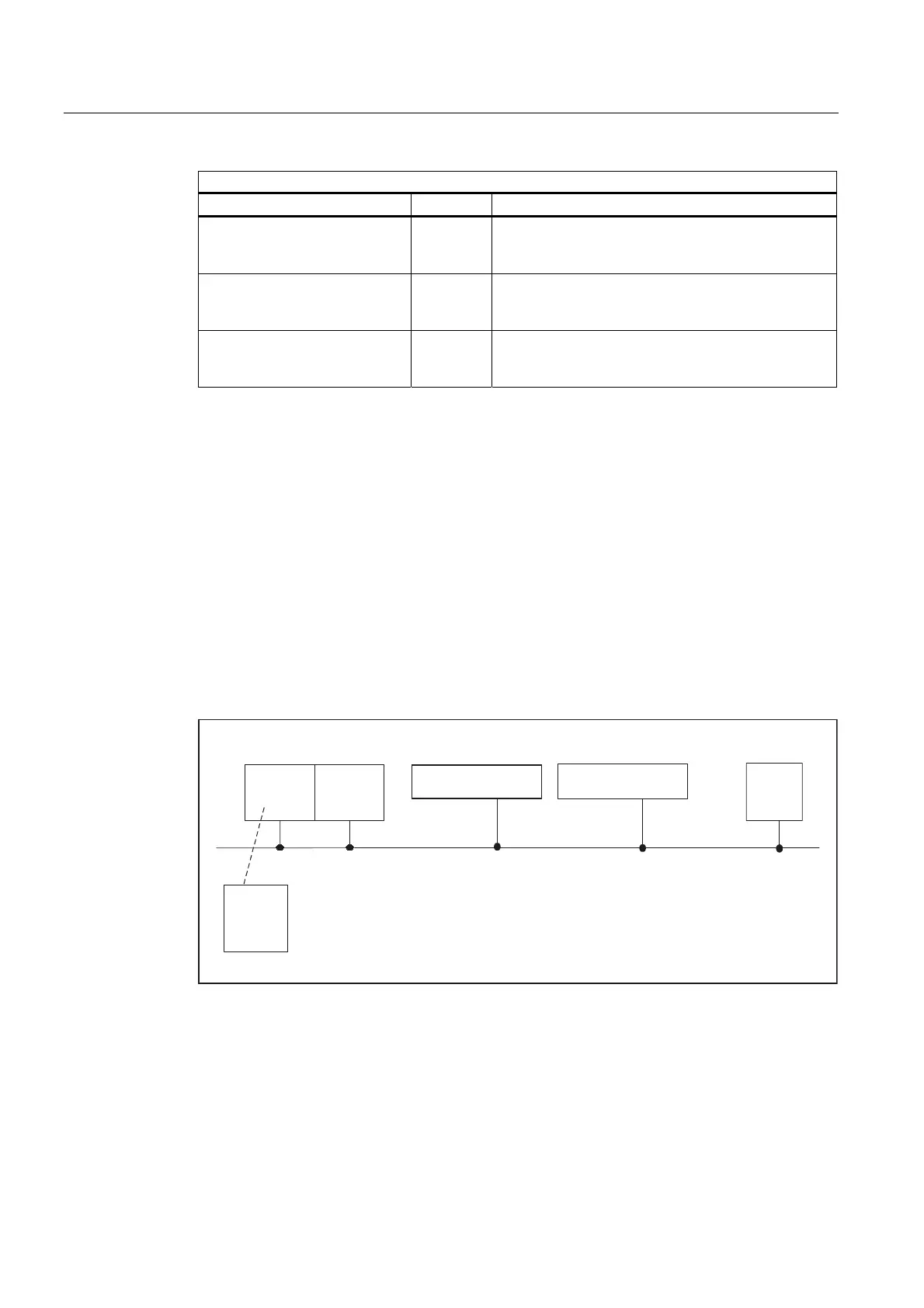

Fig. 2-18 MPI connection and 810D
Relevant parameters (FB1):
Communication between the PLC and HHU is implemented through configuring and
subsequent loading of SDB210 (Global Data). To allow the basic program to access the
HHU data and implement HHU failure monitoring, the addresses set via global data must be
declared in FB1 parameters.
