6.3 Coarse and fine offsets (CFINE; CTRANS)
Job planning
6-16 Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
6.3 6.3 Coarse and fine offsets (CFINE; CTRANS)
Function
Fine offset
A fine offset of the basic frames and of all other settable frames can be programmed with
command CFINE (X, ..,Y, ...).
Fine offset can only take place if MD 18600: MM_FRAME_FINE_TRANS=1.
Coarse offset
The coarse offset is defined with CTRANS(...).
&RDUVHRIIVHW
)LQHRIIVHW
5RWDWLRQ
6FDOLQJ
0LUURULQJ

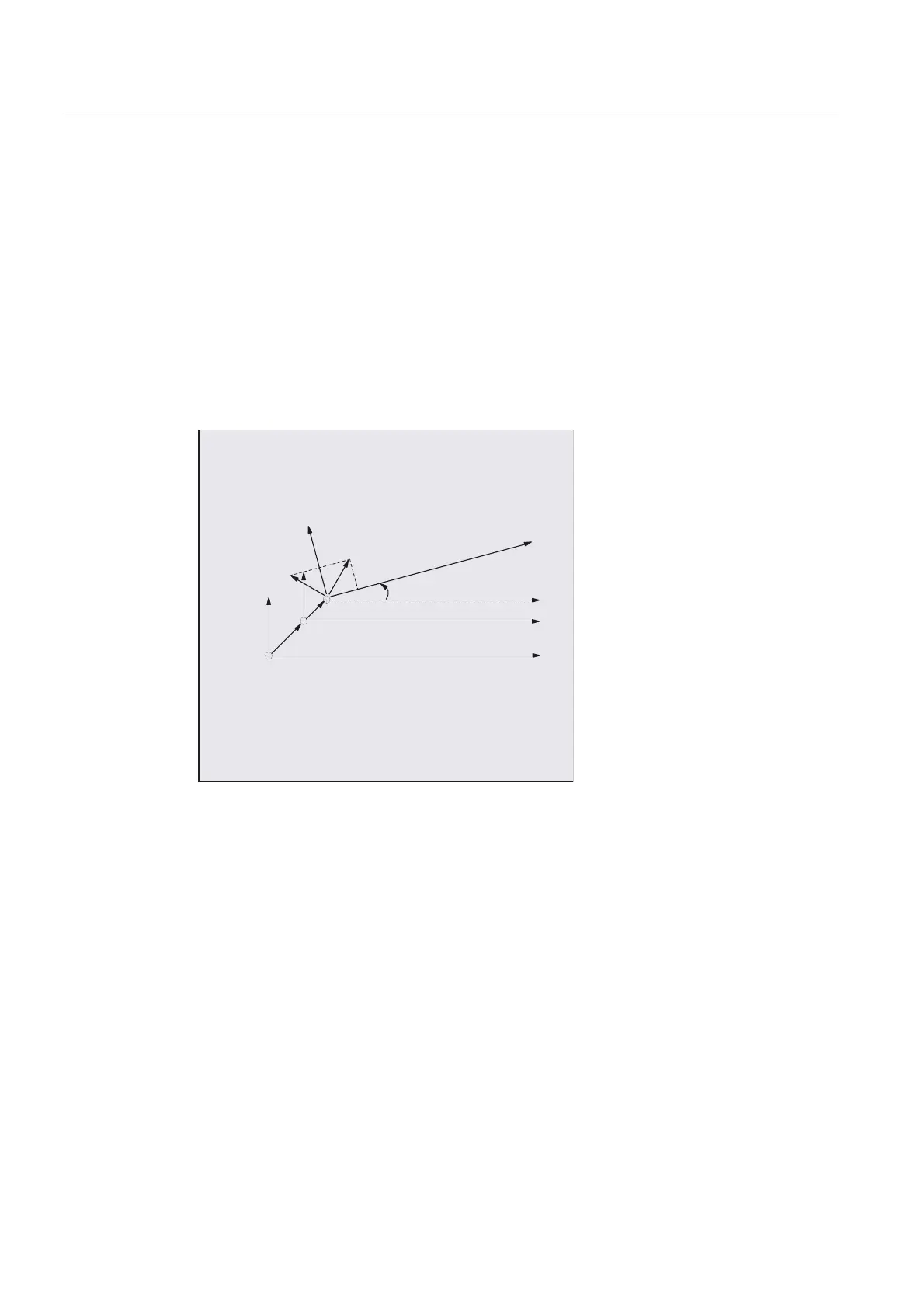

)UDPHVWUXFWXUHZLWKILQHRIIVHW
Coarse and fine offset add up to the total offset.
