Transformations
7.8 Kinematic transformation
Job planning
Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
7-67
Programming
G07
G05

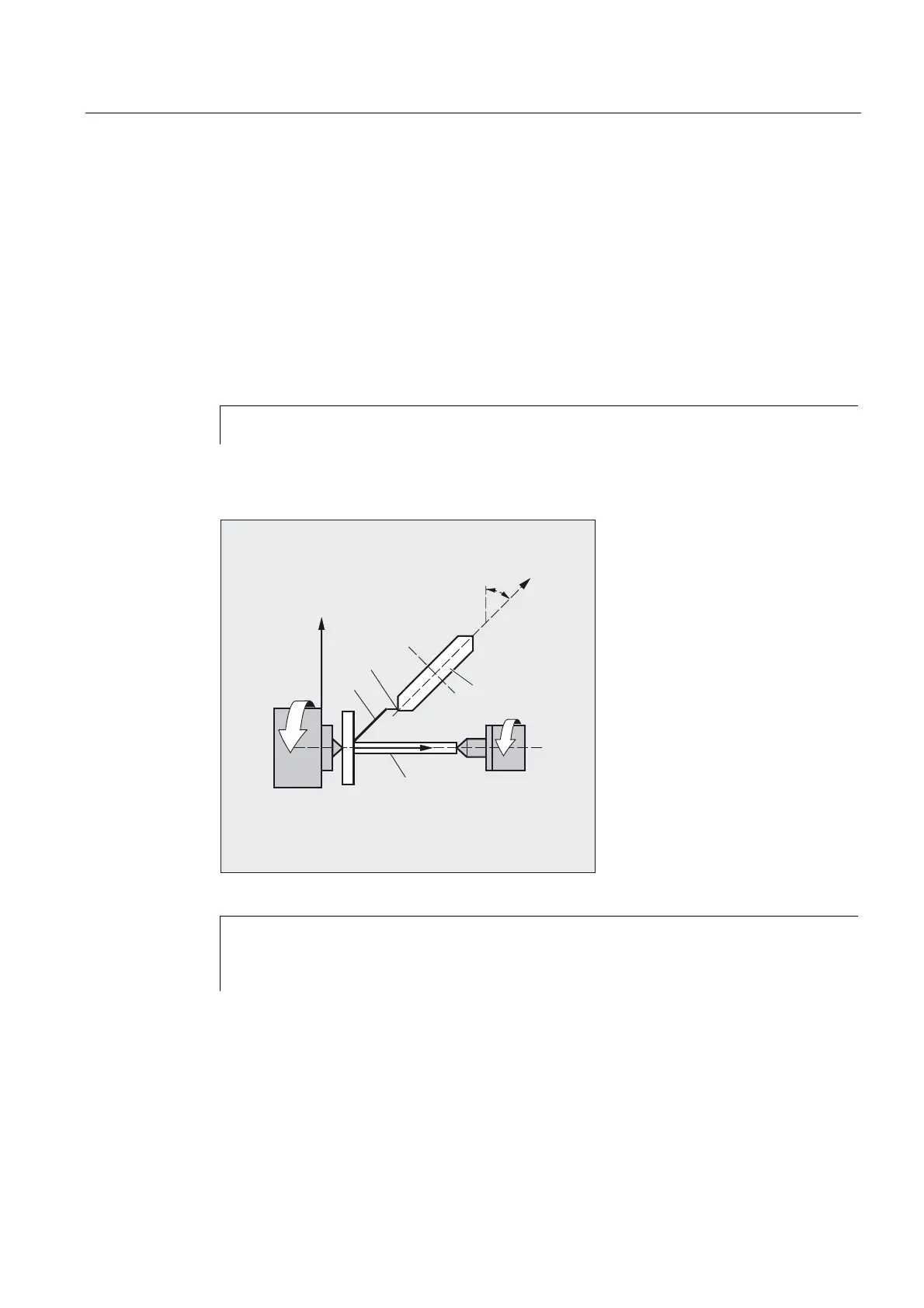

The commands G07/G05 are used to make it easier to program the inclined axes. Positions
can be programmed and displayed in the Cartesian coordinate system. Tool compensation
and zero offset are included in Cartesian coordinates. After the angle for the inclined axis is
programmed in the NC program, the starting position can be approached (G07) and then the
oblique plunge-cutting (G05) performed.
Parameters
G07 Approach starting position
G05 Activates oblique plunge-cutting
Example
1
1
;
=
&
$6
Ëž
9
*ULQGLQJGLVF
:RUNSLHFH
N.. ;Program angle for inclined axis
N20 G07 X70 Z40 F4000 ;Approach starting position
N30 G05 X70 F100 ;Oblique plunge-cutting
N40 ...
