Path traversing behavior
9.3 Curve tables (CTAB)
Job planning
9-26 Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0

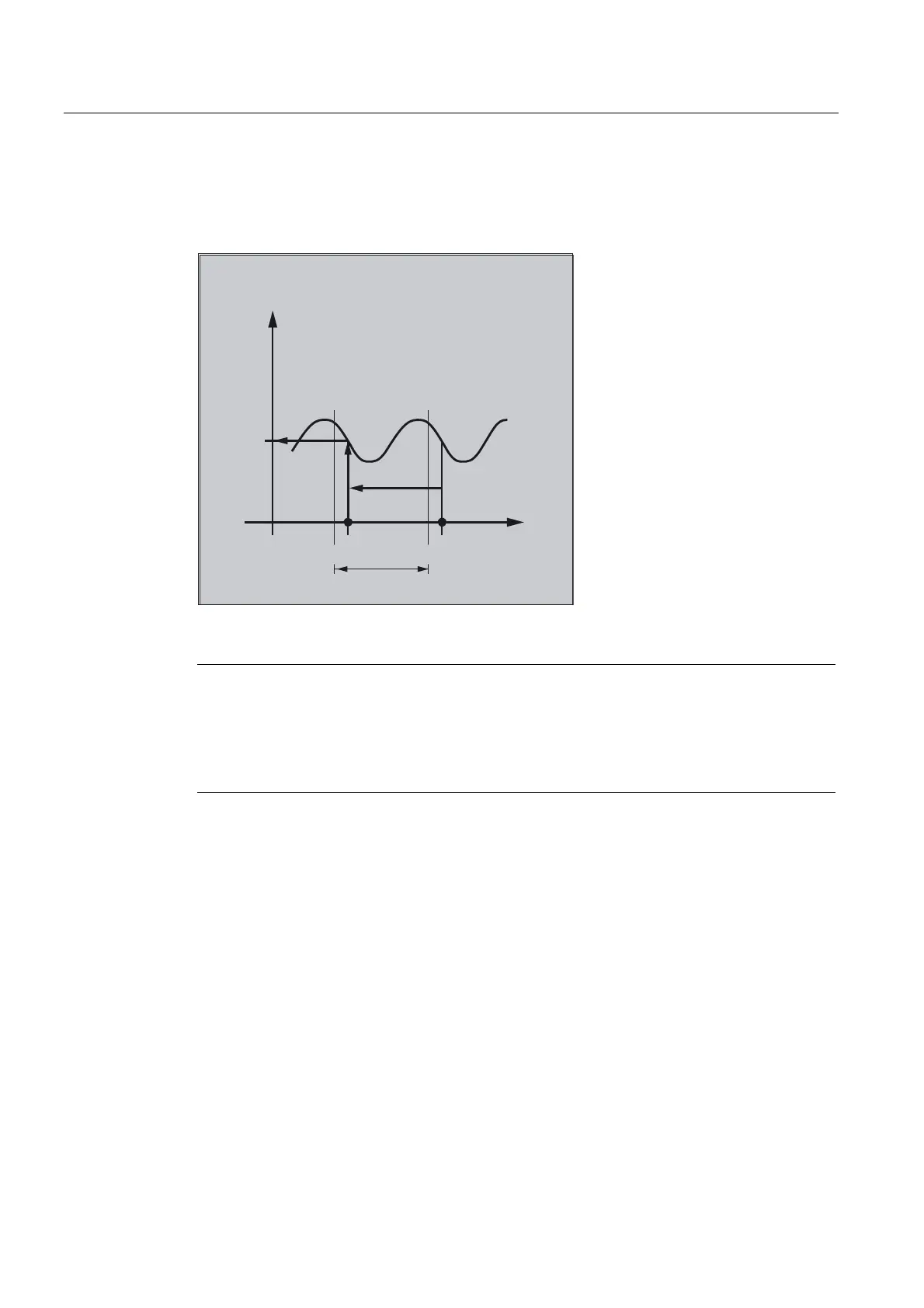

Periodic curve table
If the master value is outside the definition range, the master value is evaluated modulo of
the definition range and the corresponding following value is output.
/
)
'HILQLWLRQUDQJH
0DVWHU
YDOXH
6ODYHYDOXH
Note
CTABTSV, CTABTEV, CTABTSP, CTABTEP, CTABTMIN, CTABTMAX
The language commands can be used
• from the parts program or
• directly from synchronous actions.
The internal execution time of the function of
• CTABINV()P is dependent
• CTABTSV, CTABTEV, CTABTSP, CTABTEP,
(CTABTMIN, CTABTMAX only if no interval of the master value is specified)
is independent
of the number of table segments.
