Punching and nibbling
12.2 Automatic path segmentation
Job planning
12-6 Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0

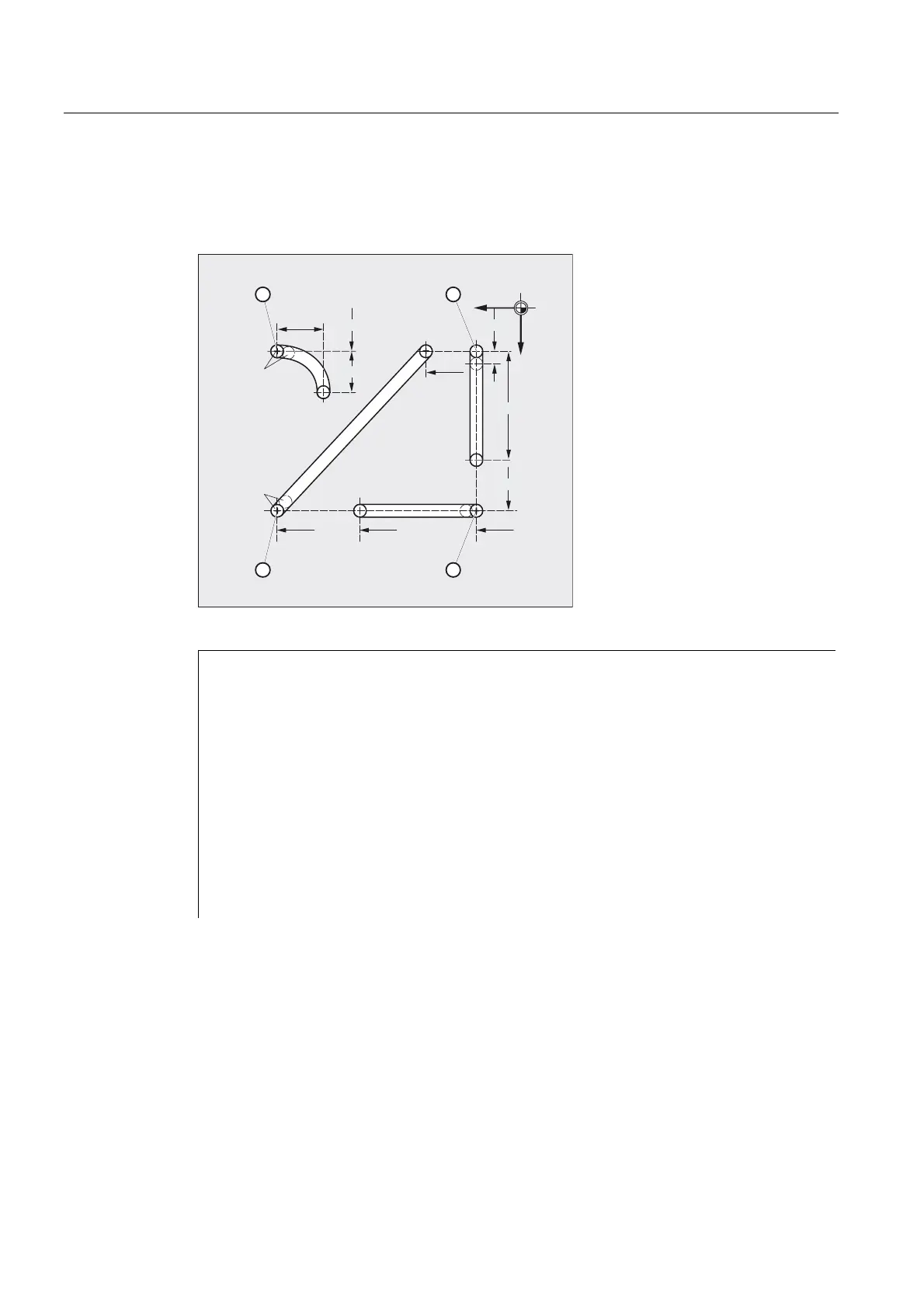

Example 1
The programmed nibbling paths must be divided automatically into equidistant path
segments.

 








<
;




 
 

N100 G90 X130 Y75 F60 SPOF ;Position at starting point 1
N110 G91 Y125 SPP=4 SON ;Nibbling on, maximum path segment length
;for automatic path segmentation: 4 mm
N120 G90 Y250 SPOF ;Nibbling off, position at
;starting point 2
N130 X365 SON ;Nibbling on, maximum path segment length
;for automatic path segmentation: 4 mm
N140 X525 SPOF ;Nibbling off, position at
;starting point 3
N150 X210 Y75 SPP=3 SON ;Nibbling on, maximum path segment length
;for automatic path segmentation: 3 mm
N140 X525 SPOF ;Nibbling off, position at
;starting point 4
N170 G02 X-62.5 Y62.5 I J62.5 SPP=3 SON ;Nibbling on, maximum path segment length
;for automatic path segmentation: 3 mm
N180 G00 G90 Y300 SPOF ;Nibbling off
