Punching and nibbling
12.2 Automatic path segmentation
Job planning
Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
12-11

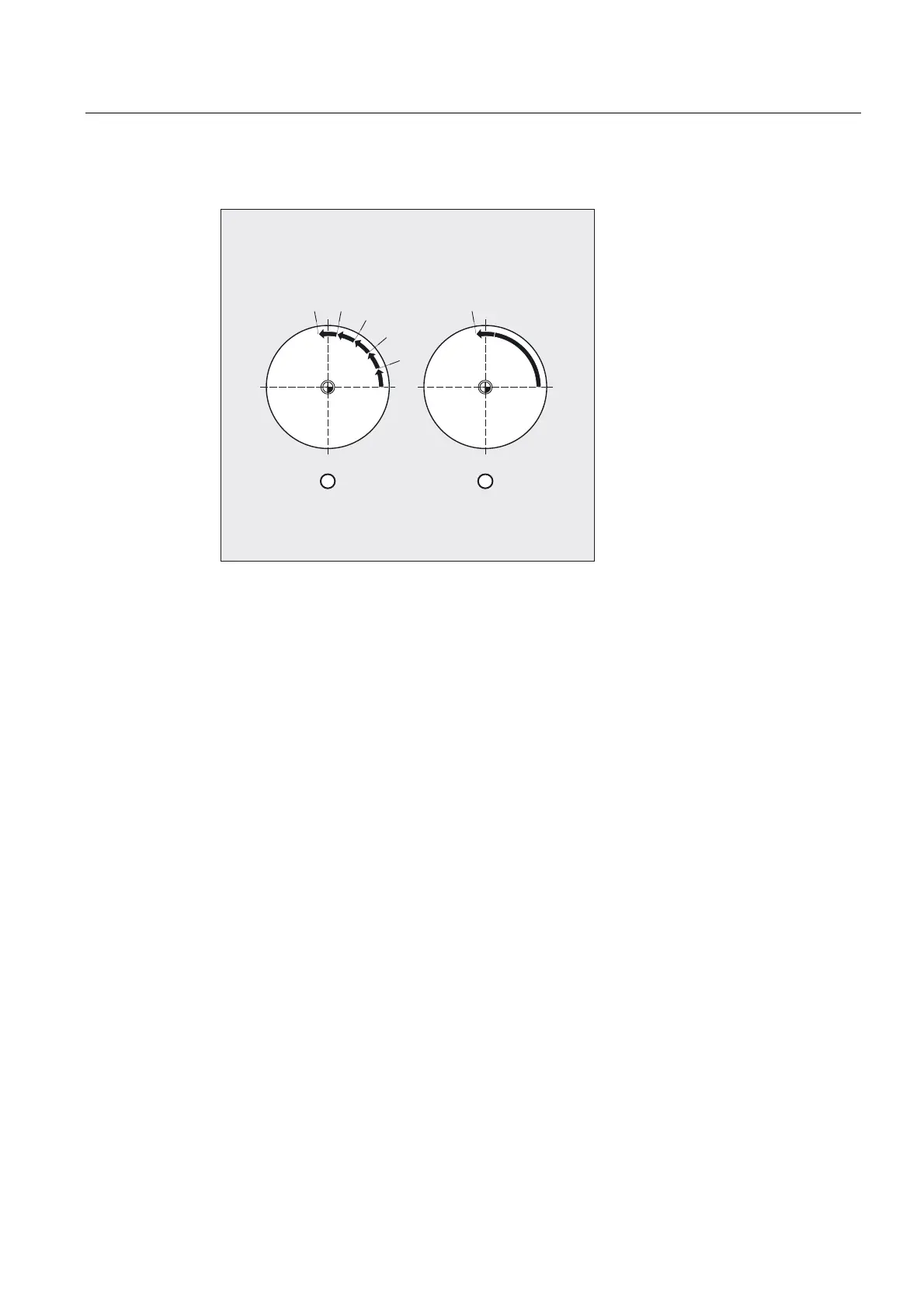

The A axis thus rotates through 20° in every block.








2. Single axis without path segmentation
The single axis traverses the total distance in the first of the generated blocks.
3. With/without path segmentation
The response of the single axis depends on the interpolation of the path axes:
• Circular interpolation: Path segmentation
• Linear interpolation: No path segmentation
Response to SPN
The programmed number of path segments is applicable even if a path axis is not
programmed in the same block.
Requirement: The single axis is defined as a punching/nibbling axis.
