11.90 3 Operating Sequences
3.2.6 ”PLAYBACK”

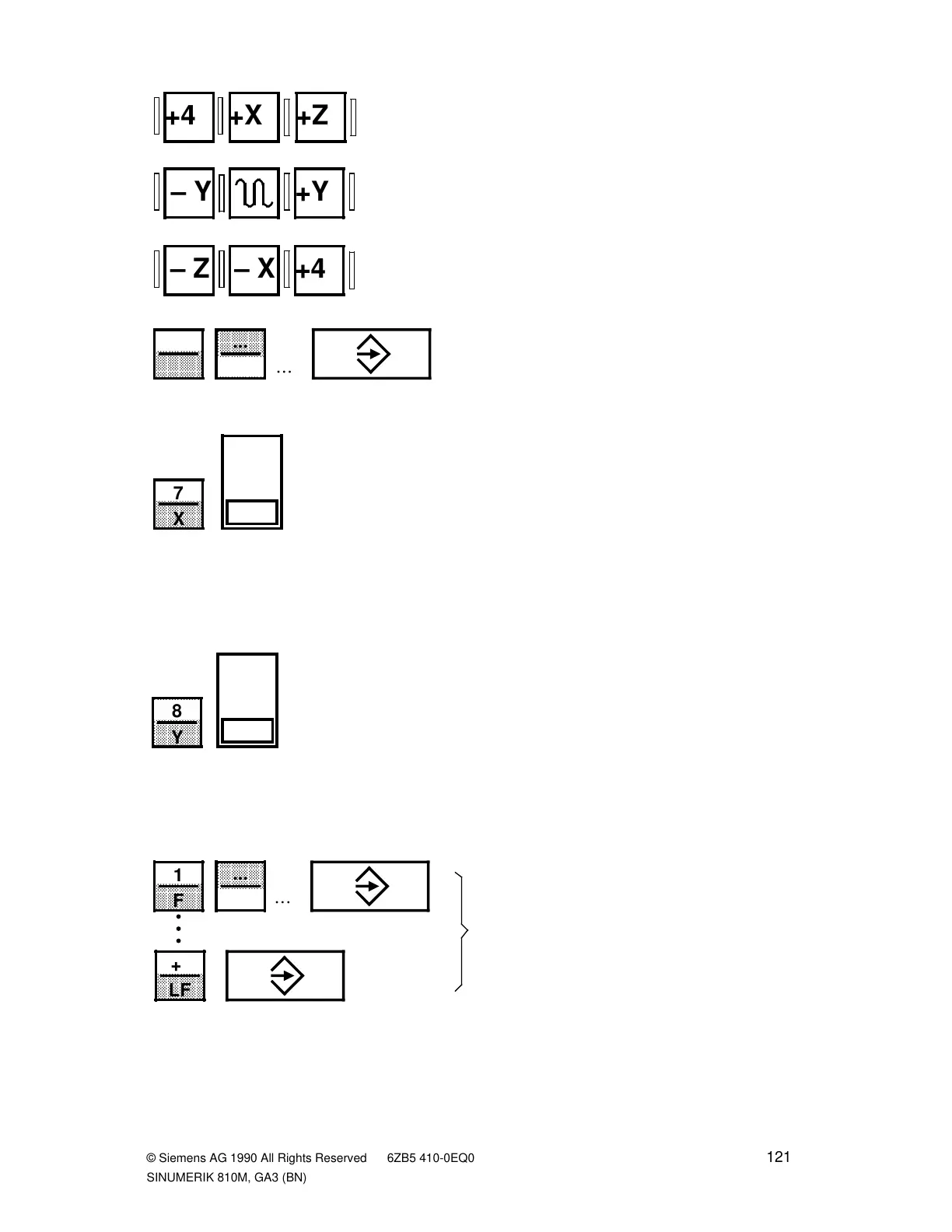

Traverse to the desired position using the
direction keys.
Using the keyboard, enter a block No.
”N ...” , and store it with the input key.
The control transfers the X axis value under ”Actual position” into the selected block
”N...”.
STORE
STORE
Enter the axis assignment ”Y” using the
keyboard, and then operate the ”STORE”
softkey.
Enter the axis assignment ”X” using the
keyboard, and then operate the ”STORE”
softkey.
The control transfers the Y axis value under ”Actual position” into the selected block
”N...”.
Using the numerical keyboard, enter the
required technology values, e.g. feedrate
”F...” etc., and terminate each input
including ”LF” (block end) - with the
inout key.
Note :
You cannot work with operator
”GUIDING”.
