3 Operating Sequences 11.90
3.2.6 ”PLAYBACK”

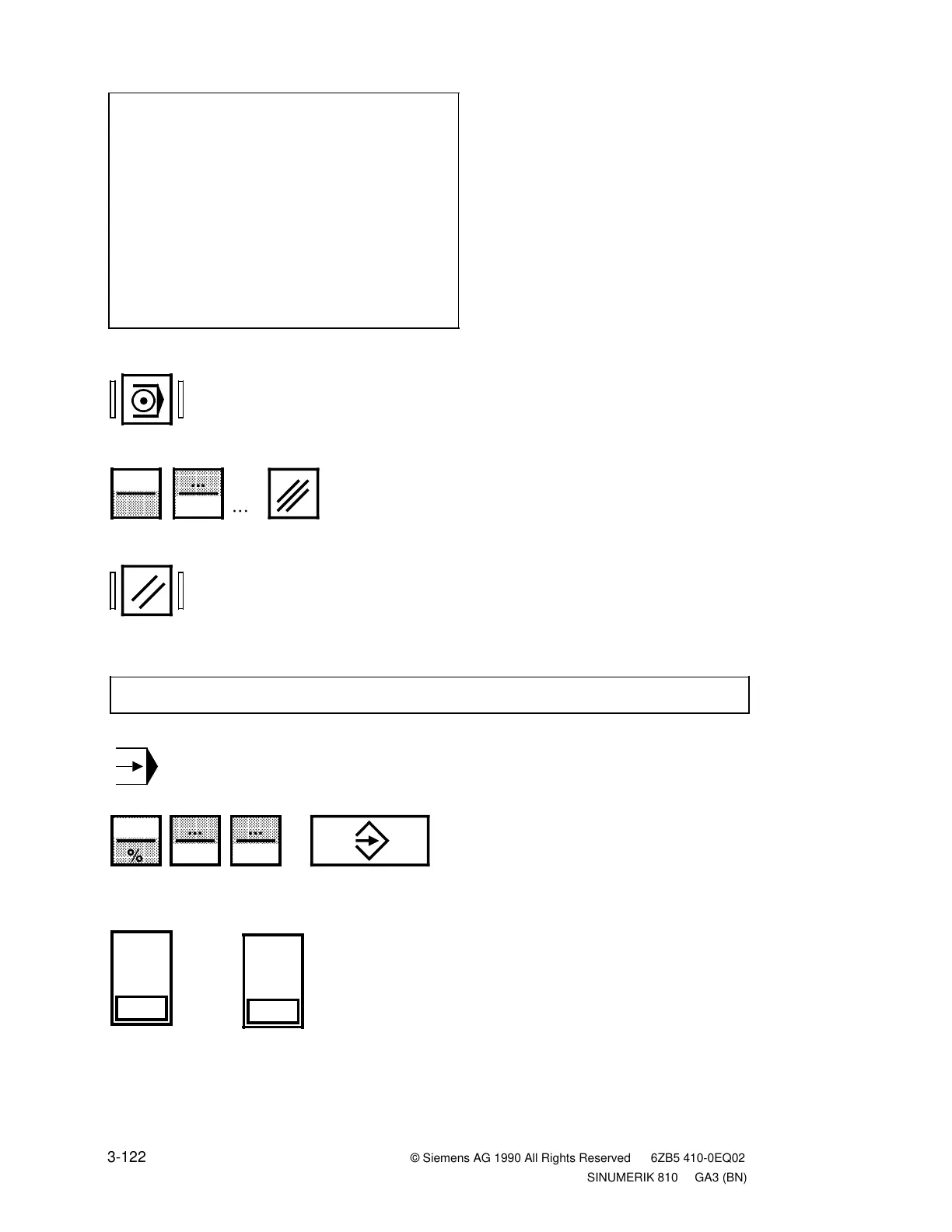

This display shows an example of a
block ”N1”, entered using
”PLAYBACK”.
((Bild 810M/54 einmontieren))
Operate the ”Program start” key after
each block is entered.
This transfers the block to the program
memory.
Blocks not required can be deleted by
entering the block no. ” N...”, and
operating the delete key. Blocks traversed
correctly remain - as entered - in the
memory.
After each ”RESET” using this key, the
processing of the program can be repeated
Continuing TEACH IN / PLAYBACK after RESET
Set the mode selector switch to the symbol
for ”AUTOMATIC”.
• • •
Enter the desired part program number
”%...” in the ”AUTOMATIC”basic display
and store it with the input key.
PART
PROGRAM
TEACH IN
PL.BACK
Then operate the ”PART PROGRAM”
softkey followed by the ”TEACHIN /
PLAYBACK” softkey.
and
