Siemens SINUMERIK 840D sl OP 010 - Operator Control and Display Elements

Operator control and display elements
3
3.1 View
① Alphabetic key group
② Numeric key group
③ Control key group
④ Hotkey group
⑤ Cursor key group
⑥ Front USB interface
⑦ Menu select key
⑧ Menu forward key
⑨ Machine area button
⑩ Menu back key
⑪ Softkeys

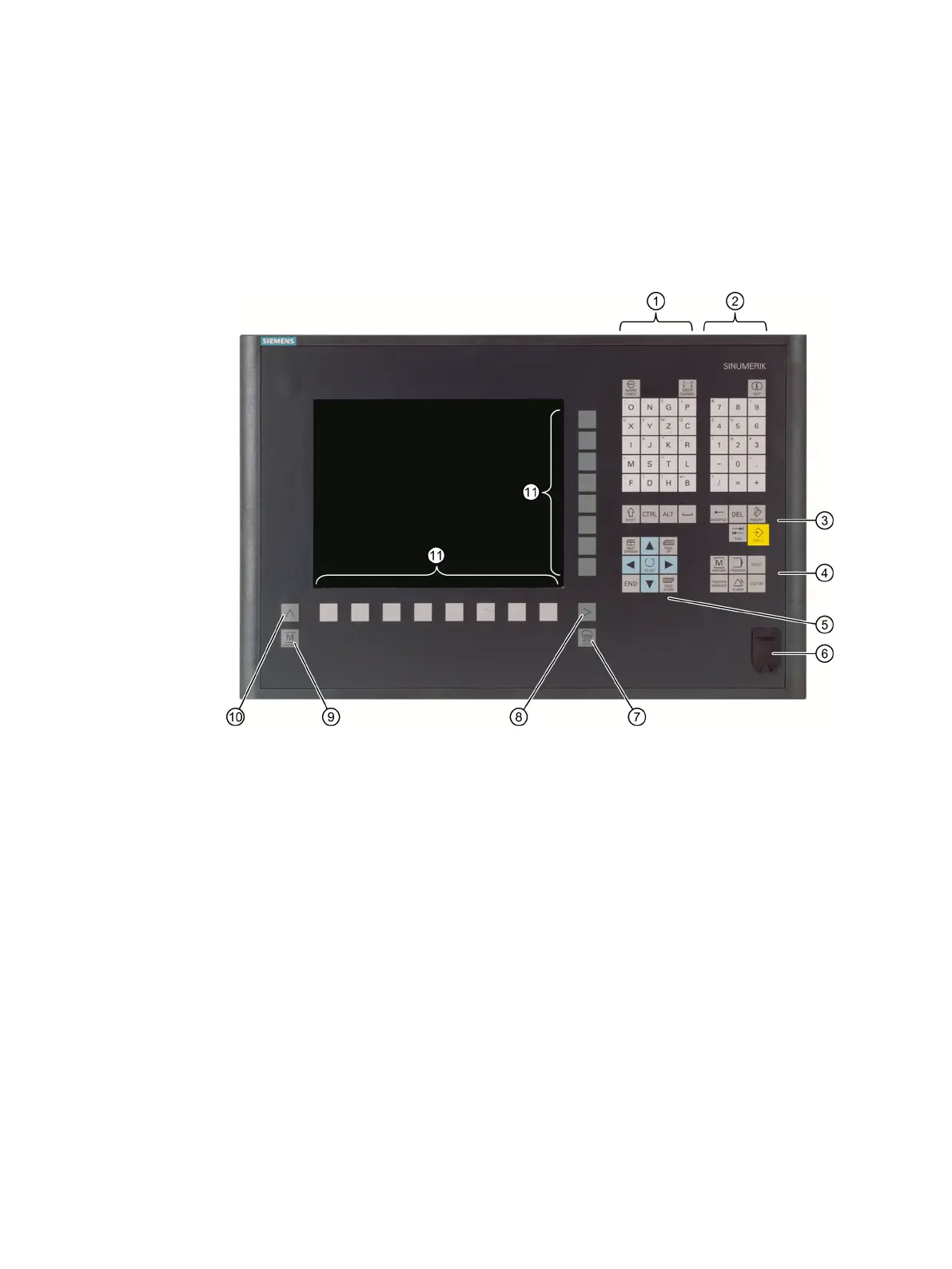

Figure 3-1 View of OP 010 operator panel front
Operator panel front: OP 010
Manual, 07/2018, A5E36371538B 91
