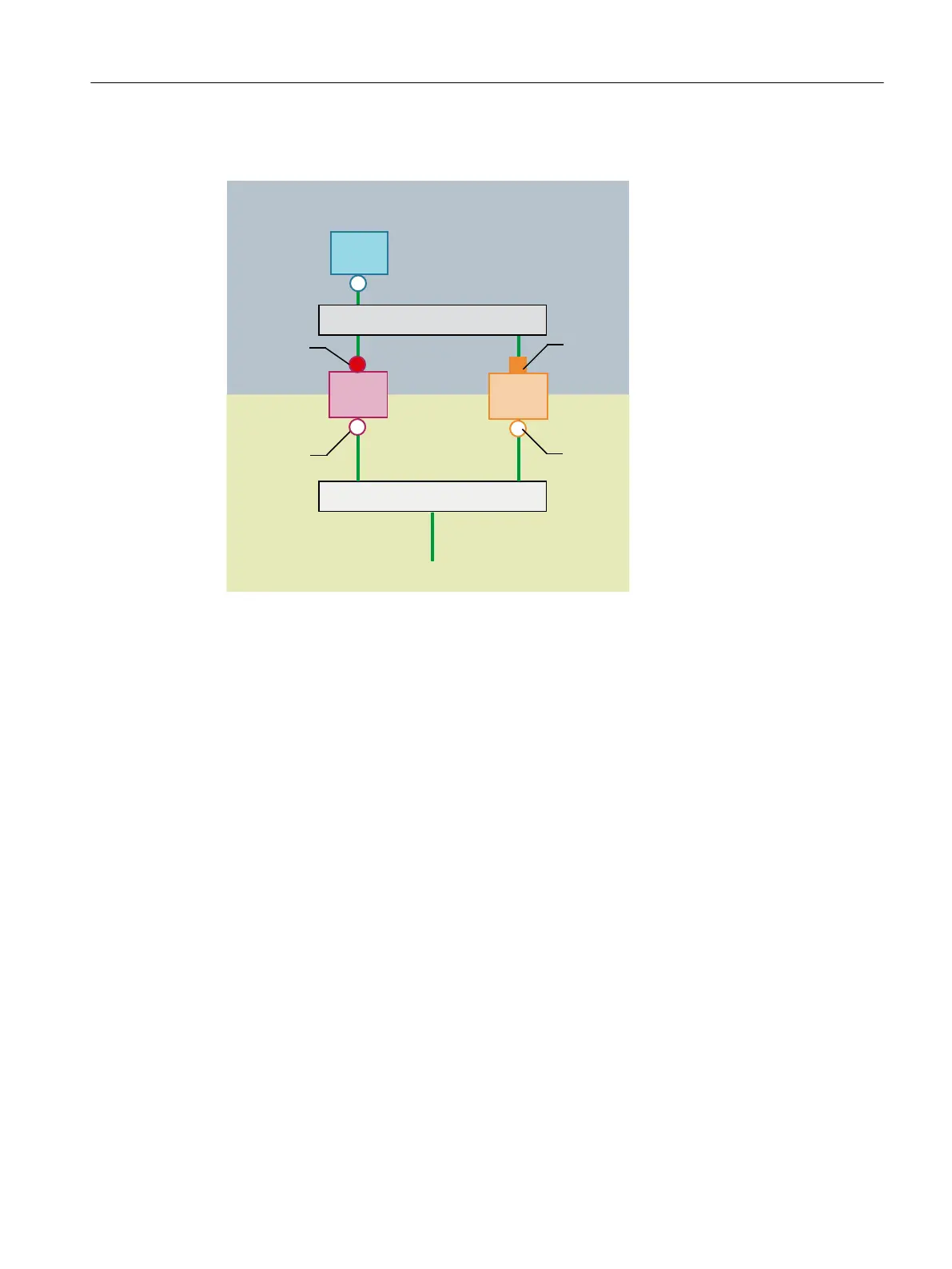

6.3.3.2 Con󹪝guration 3: PCU/IPC with TCU on NCU
6ZLWFK
1&8
7&8
3&8
,3&
6\VWHPQHWZRUN
&RPSDQ\QHWZRUN
6ZLWFK
;
(WK
;
(WK
In this con󹪝guration, a switch is also required for the system network. All components are
connected using straight Ethernet cables.
On X120, the NCU occupies the 󹪝xed IP address 192.168.214.1 in its capacity as a DHCP
server (not used in this con󹪝guration). For this con󹪝guration on Eth 2, the PCU/IPC is
assigned a static IP address in the range 192.168.214.241 – 192.168.214.249 with a subnet
mask 255.255.255.0 . The DHCP server of the NCU supplies the TCU with an IP address and
serves as a boot server for the TCU.
The observations made for con󹪝guration 2 apply here with regard to the connection to the
company network. The connection to a switch on the company network is made via a patch
cable for Ethernet.
To connect one TCU to both HMI systems you must create an additional connection to the
NCU for the TCU.
Networking
6.3Network con󹪝guration
TCU 30.3
Equipment Manual, 03/2023, A5E40874197B AD 55
