Assigning a name
If, as described above, the system automatically follows the "New" path, an additional message
will appear: "This operator panel (TCU) must be new, because there are no inactive panels." This
message will not appear if "New" is selected manually.

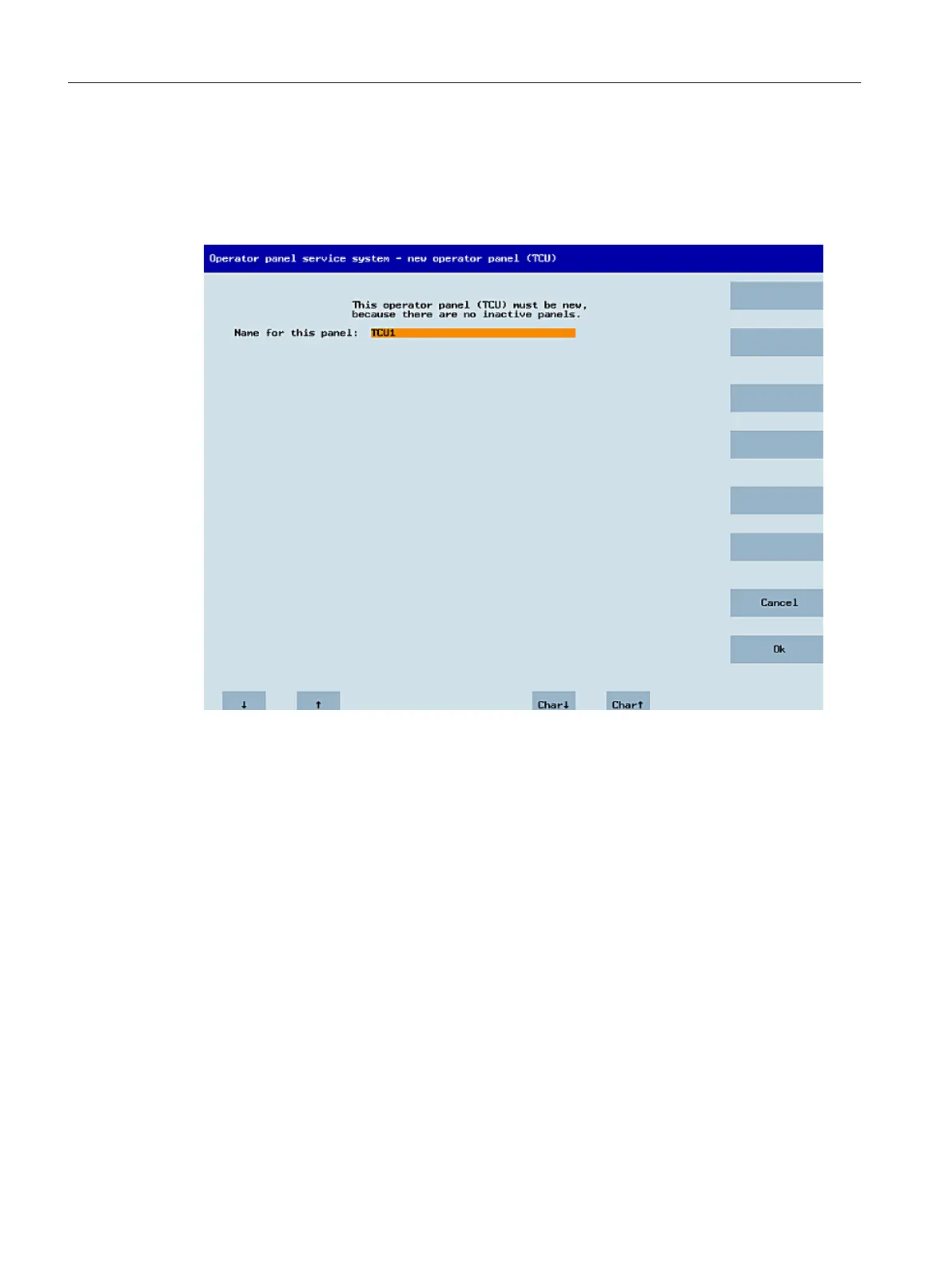

Figure6-13 TCU menu: Name of TCU
An available TCU name is suggested in the input eld, although the user is able to change
this. The default name is "TCU<N>", where <N> is the lowest number yet to be used. If,
however, the name is already allocated after the OK softkey has been pressed, which may
happen if a number of TCUs log on at the same time, and the suggestion has not changed, a
new and unused name will be specied.
If the name selected was still available, this will now be allocated, and the TCU settings
can still be adapted if required. To enable any changes to be made, a new dialog appears
in which all the parameters have been pre-assigned their default values. You can make any
changes you like or just select "OK" to accept the existing values.
6.4.6 How to register a TCU on the system network
Requirement
The boot server (NCU or PCU 50/IPC) dened in the system network as a DHCP master must be
switched on and available in the network.
Networking
6.4Service and diagnostics
TCU 30.3
72 Equipment Manual, 03/2023, A5E40874197B AD
