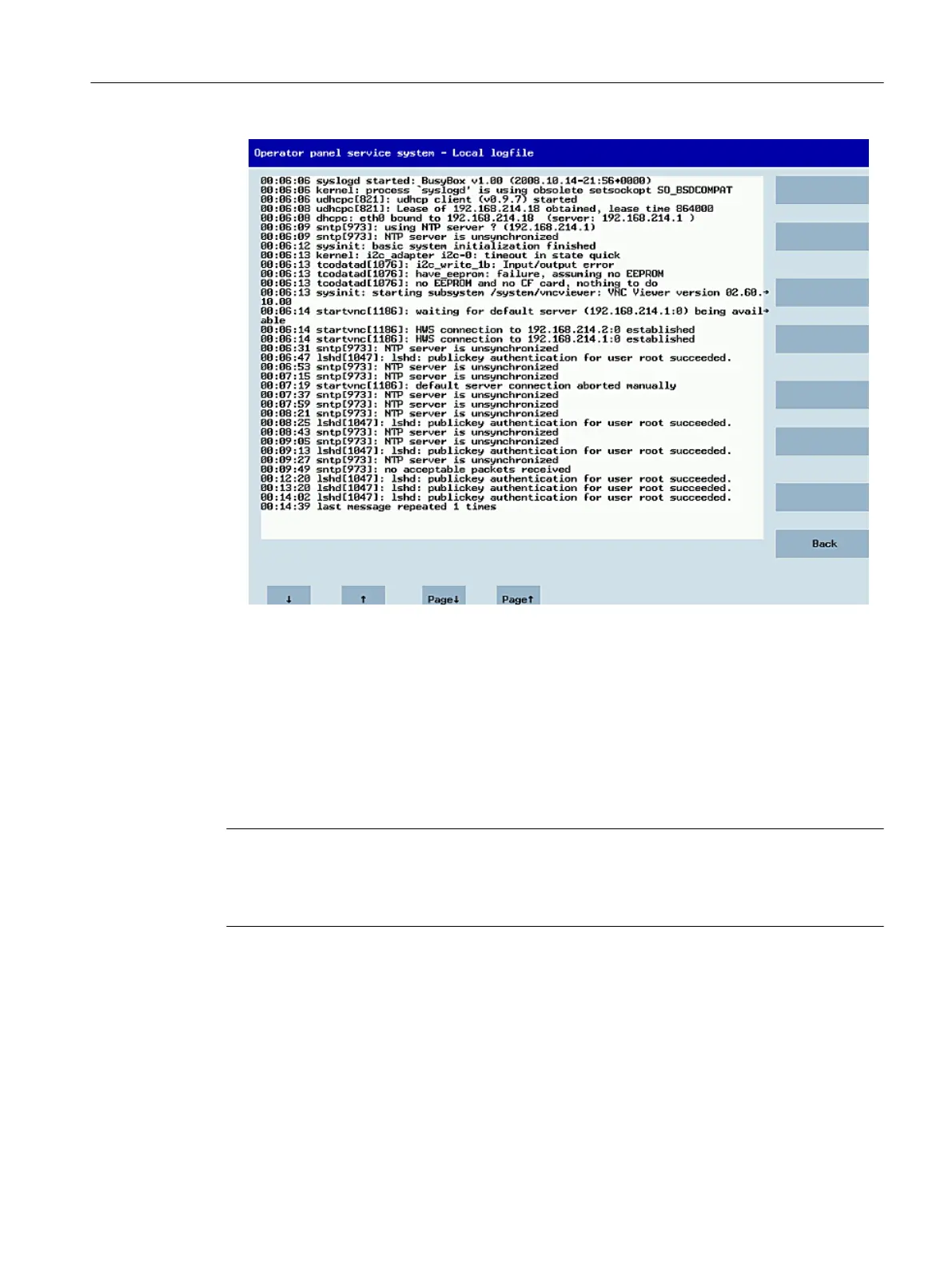

Figure6-8 TCU menu: Local log 󹪝le
• "Show log󹪝le of remote devices" shows the log 󹪝le of the other devices in the network:
The syslog messages of devices in the system network which send syslog messages by
broadcast, such as NCU7x0, ...
• "Modify operator panel settings" opens another submenu, see next section.
• Calibrate touch screen" is only active if there is a touch screen. This menu item recalibrates
an available touch screen.
• "Reboot" initiates a restart of the TCU.
Note
Long lines are broken and wrapped around.
Lines that are longer than the space available wrap round onto the next line so that you do not
have to scroll horizontally. When this occurs, the line has a right-facing arrow at its right edge.
Networking
6.4Service and diagnostics
TCU 30.3
Equipment Manual, 03/2023, A5E40874197B AD 65
