Transformations

7.8 Kinematic transformation

Job planning

Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0

7-67

Programming

G07

G05

The commands G07/G05 are used to make it easier to program the inclined axes. Positions

can be programmed and displayed in the Cartesian coordinate system. Tool compensation

and zero offset are included in Cartesian coordinates. After the angle for the inclined axis is

programmed in the NC program, the starting position can be approached (G07) and then the

oblique plunge-cutting (G05) performed.

Parameters

G07 Approach starting position

G05 Activates oblique plunge-cutting

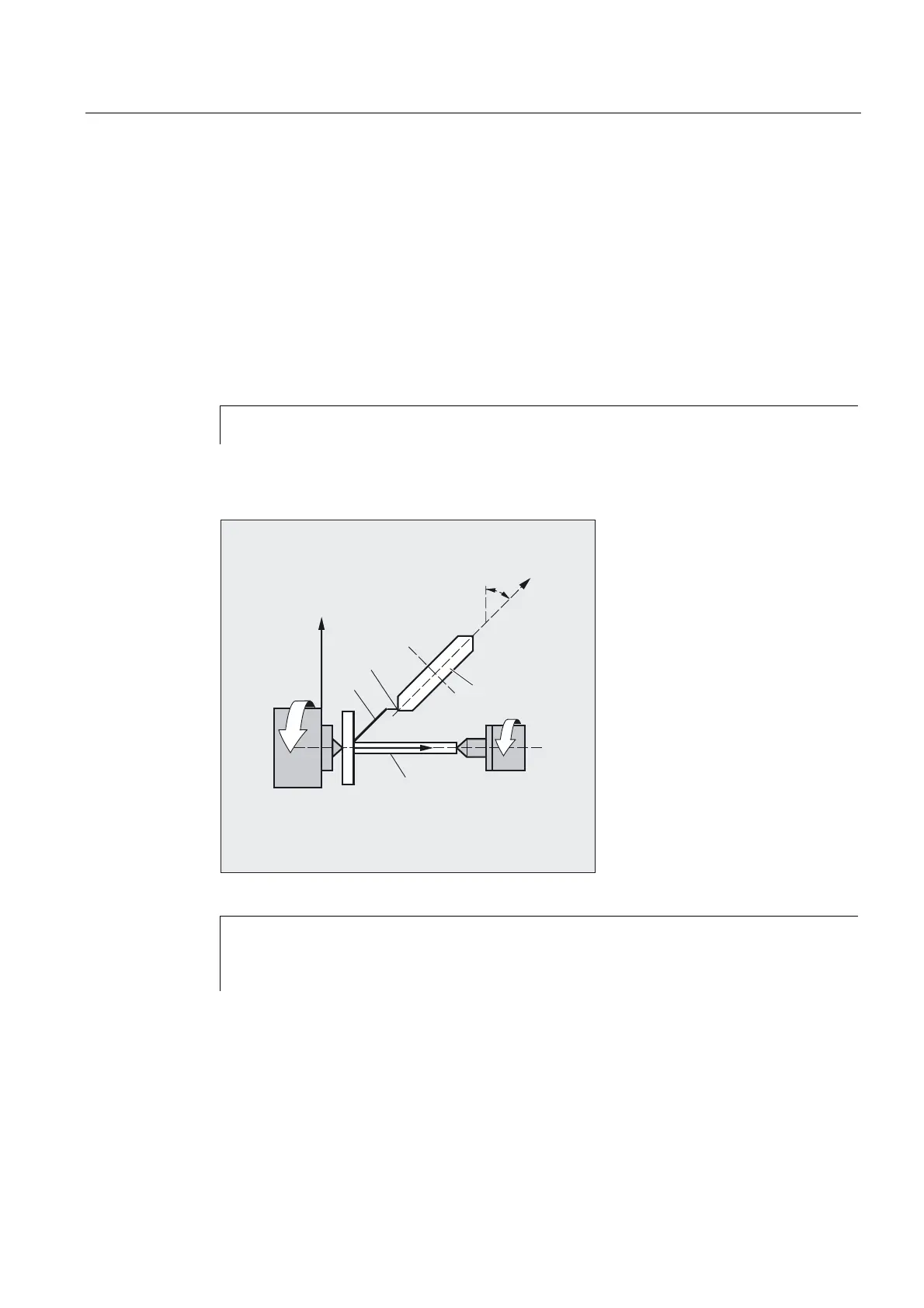

Example

1

1

;

*ULQGLQJGLVF

:RUNSLHFH

N.. ;Program angle for inclined axis

N20 G07 X70 Z40 F4000 ;Approach starting position

N30 G05 X70 F100 ;Oblique plunge-cutting

N40 ...
