Path traversing behavior

9.1 9.1 Tangential control (TANG, TANGON, TANGOF, TANGDEL)

Function

The following axis follows the path of the leading axis along the tangent. This allows

alignment of the tool parallel to the contour. The tool can be positioned relative to the tangent

with the angle programmed in the TANGON statement.

;

Applications

Tangential control can be used in applications such as:

• Tangential positioning of a rotatable tool during nibbling

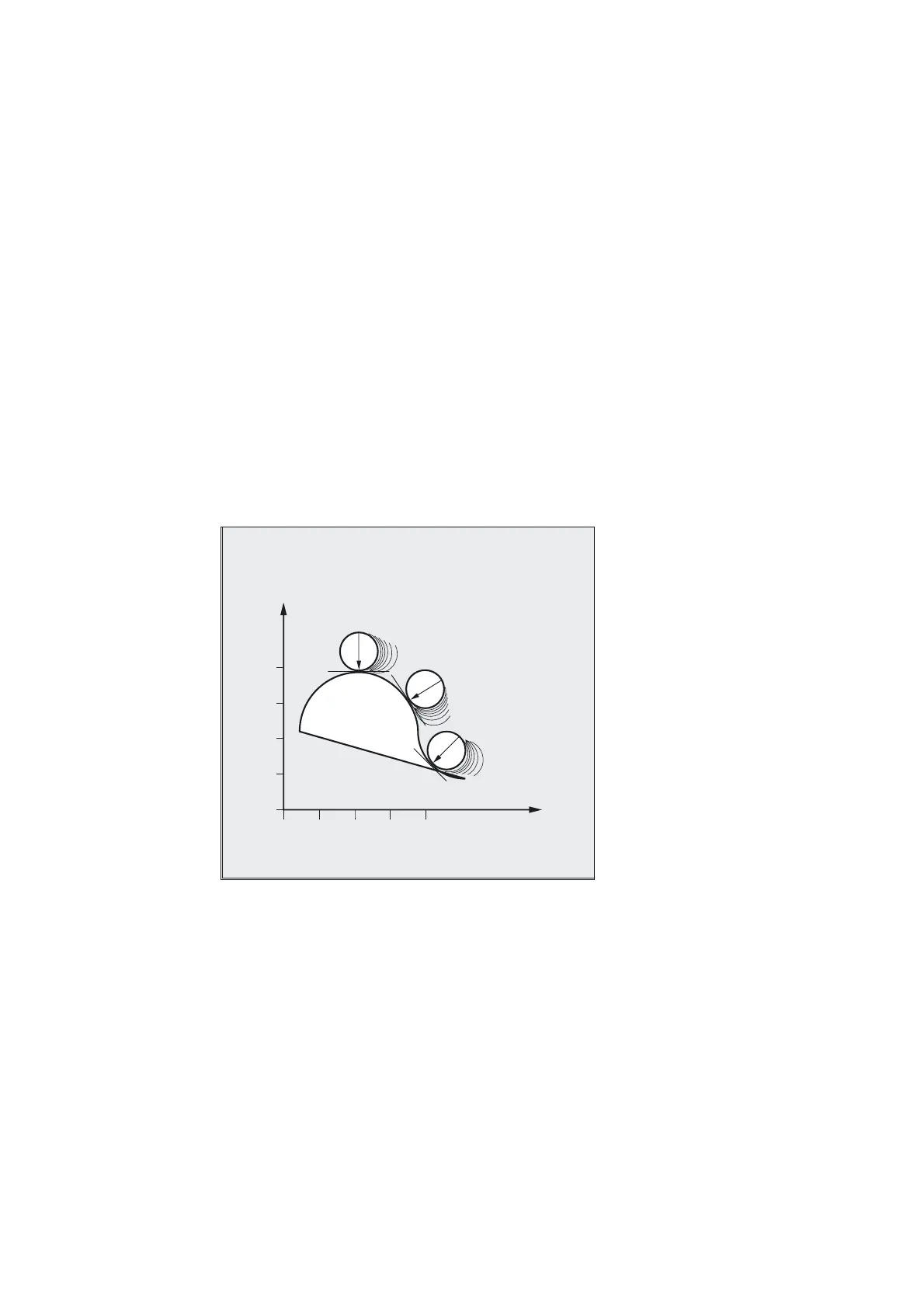

• Follow-up of workpiece alignment for a bandsaw (s. illustration).

• Positioning of a dressing tool on a grinding wheel

• Positioning of a cutting wheel for glass or paper working

• Tangential feed of a wire for 5-axis welding.
