Tool offsets
8.3 Online tool compensation (PUTFTOCF, PUTFTOC, FTOCON, FTOCOF)
Job planning
Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
8-7
8.3 8.3 Online tool compensation (PUTFTOCF, PUTFTOC, FTOCON,
FTOCOF)
Function
The function makes immediate allowance for tool offsets resulting from machining by means
of online tool length offset (e.g., CD dressing: The grinding wheel is dressed parallel to
machining). The tool length offset can be changed from the machining channel or a parallel
channel (dresser channel).

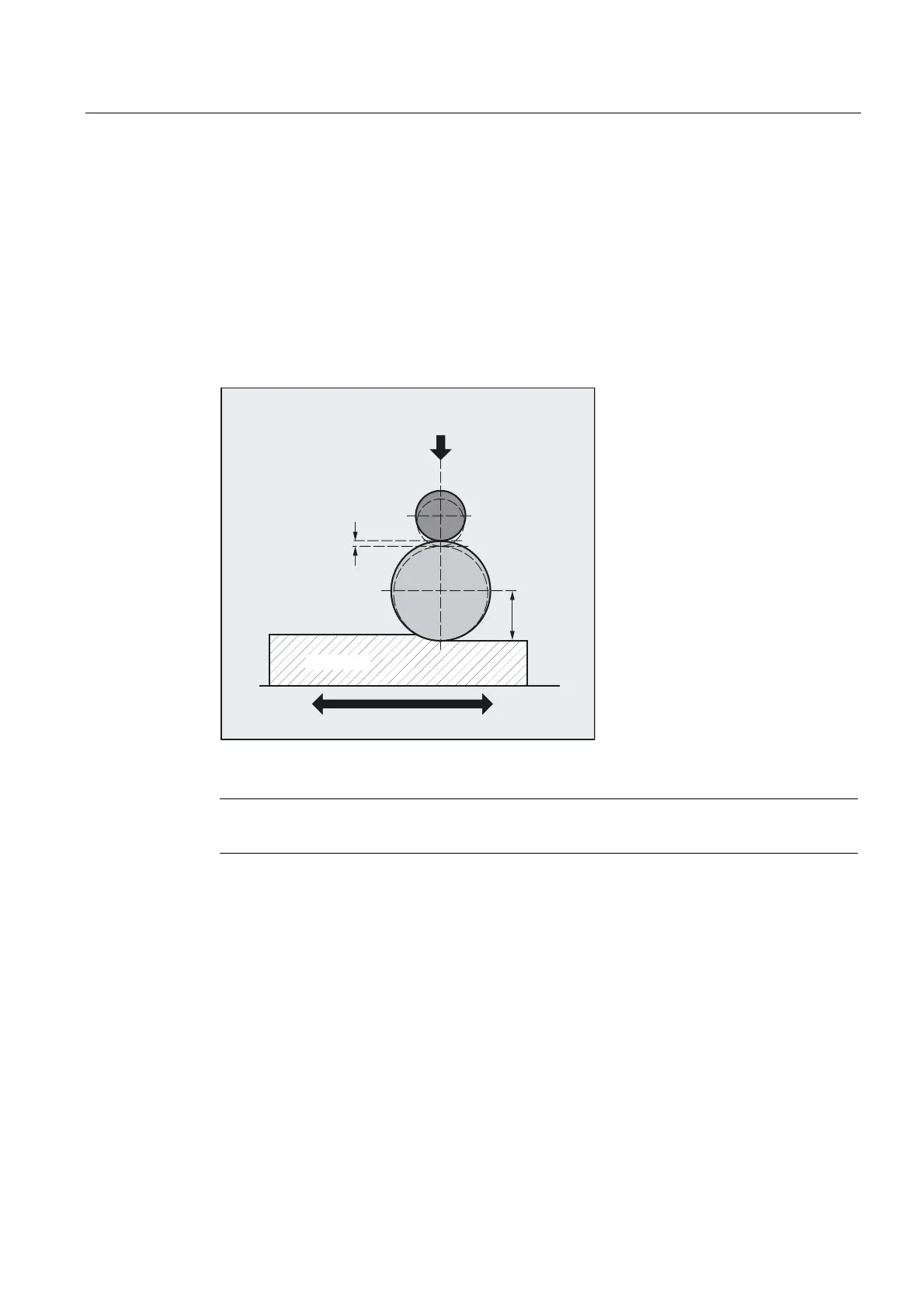

'UHVVLQJUROOHU
'UHVVLQJ
DPRXQW
:RUNSLHFH
*ULQGLQJGLVF
/HQJWK
Note
Online tool offset can be applied only to grinding tools.
